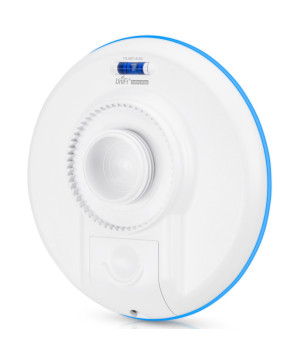

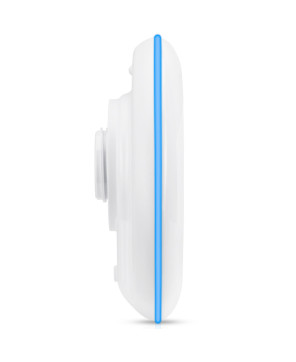

The Ubiquiti UBB is a 1.7+ Gbps bi-directional Plug and Play 60 GHz Bridge with 5 GHz Radio Redundancy, UniFi Application Management, and range of up to 500 m. UniFi Building-to-Building Bridge is the ideal solution for short-range, high-throughput connectivity. Integration with the UniFi application makes bridging two networks seamless. As a pack of two radios, UniFi Building-to-Building Bridge contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use gigabit connectivity anywhere.

Use the LED indicator to adjust the UBB position for optimal signal to the other bridge device. Operating at 60Ghz the UBB attenuates quickly due to atmospheric absorption. When a 60 GHz radio uses a highly directional antenna, interference from other directions is also attenuated. The 60 GHz band thus offers extremely high transmission capacity as a wireless wire.

No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting. A wall mount kit, model NBE-WMK, is available as an optional accessory to enhance stability. The UniFi Building-to-Building Bridge's seamless integration with the UniFi Network application makes connecting two networks simple.

CONDITION

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

WARRANTY

This item comes with a 12-month manufacturer's warranty.

FEATURES

• Centrally manage multiple networks from an intuitive interface
• Enjoy real-time device insights and deep configuration options
• Upgrade device firmware remotely
• Manage network users and guests with ease
• Personalise the design, architecture, and privacy of guest hotspots
• Set up devices quickly and manage them on the go with a powerful mobile app

QUICK SPECIFICATIONS

• Dimensions: Ø140 x 90 mm | (Ø5.5 x 3.5")
• WiFi Standard: WiFi 5
• Spatial Streams: 2
• Coverage Area: 500 m (1,640 ft)
• Mounting Locations: Wall, pole
• Weatherproofing: IPX6
• Power Method: PoE
• Max. Power Consumption: 11W
• Includes PoE Adapter: ✓
• Supported Voltage Range: 44—57V DC
• Networking Interface:(1) GbE RJ45 port
• Weight:376 g (13.3 oz)
• Operating Modes:PtP
• Wind Loading:56 N at 200 km/h (12.6 lbf at 125 mph)
• Management:Ethernet | Bluetooth
• Enclosure Material:UV-resistant polycarbonate
• Button:(1) Factory-reset
• Channel Bandwidth: Main radio (60 GHz) : 2,160 (MHz) | Backup radio (5 GHz) : HT 20/40, VHT 20/40/80 (MHz)

• Operating Frequency

Main radio (60GHz): 57 - 66 GHz
Backup radio (5GHz): US/CA
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
Worldwide: 5150 - 5725 MHz

• Bluetooth (MHz): Worldwide: 2,400 - 2,483.5
• Ambient Operating Temperature: -40 to 70° C (-40 to 158° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓

WHAT'S INCLUDED

• UniFi Building-to-Building Bridge (x2)
• Ball joint mount (x2)
• Lock ring (x2)
• Metal strap (x2)
• Gigabit PoE (48V, 0.32A) with mounting bracket (x2)
• Power cord (x2)
• Quick Start Guide
