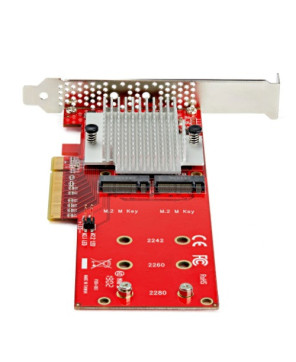

Upgrade your system speed and performance with this Startech PEX8M2E2 Dual M.2 PCIe SSD Adapter. It lets you add two high performance, enterprise-class PCIe 3.0 M.2 SSDs (NVMe and AHCI) into the PCIe 8-lane or larger slot of your desktop workstation or server.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with 24 month manufacturer's warranty.

• Boost System Performance: The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. With the M.2 PCIe based drives in place, the adapter increases your storage capacity and gives your computer a significant speed boost, enhancing data transfer rates.
• Access two M.2 PCIe SSDs simultaneously: The dual M.2 to PCIe expansion card employs a high-speed ASM2824 switch, allowing you to access two drives at the same time. Since the adapter card does not rely on PCIe bifurcation, it can easily be integrated into all systems, new and legacy.
• Wide System Compatibility: The adapter connects directly to your computer motherboard to support two PCIe M.2 SSDs through an x8 PCIe expansion slot. The adapter is compatible with PCIe 3.0 motherboards and is backward compatible with PCIe 2.0 and PCIe 1.0.
• Supports a Wide Range of PCIe M.2 SSDs: The PCIe M.2 NGFF (M Key) adapter supports PCIe 3.0 NVMe and PCIe-AHCI M.2 SSDs including 2242, 2260, and 2280 drives, supporting the most common drive sizes: 42, 60, and 80 mm lengths.
• Easy to Install: The expansion card comes with a full-profile bracket pre-installed, and includes a half-height / low-profile bracket, for installation in small form-factor computers.
• Vented Brackets: Vented brackets on the PCIe M.2 NGFF SSD adapter card increases air flow to assist in heat dissipation.

• Product Type: M.2 to PCI Express Adapter
• Colour: Red
• TAA Compliant: Yes
• Bus Type: PCI Express
• Chipset ID: ASMedia - ASM2824
• Compatible Drive Types: M.2 (PCIe, AHCI, M-Key, NGFF), M.2 (PCIe, NVMe, M-Key, NGFF)
• Drive Installation: Fixed
• Drive Size: 22m - M.2 NGFF
• Interface: PCI Express x8
• Drive Connectors: 2 - M.2 (PCIe, M-Key, AHCI/NVMe, NGFF)
• Host Connectors: 1 - PCI Express x8 Male
• Other Interface(s): 2 - IDC (2 pin, Motherboard Header)

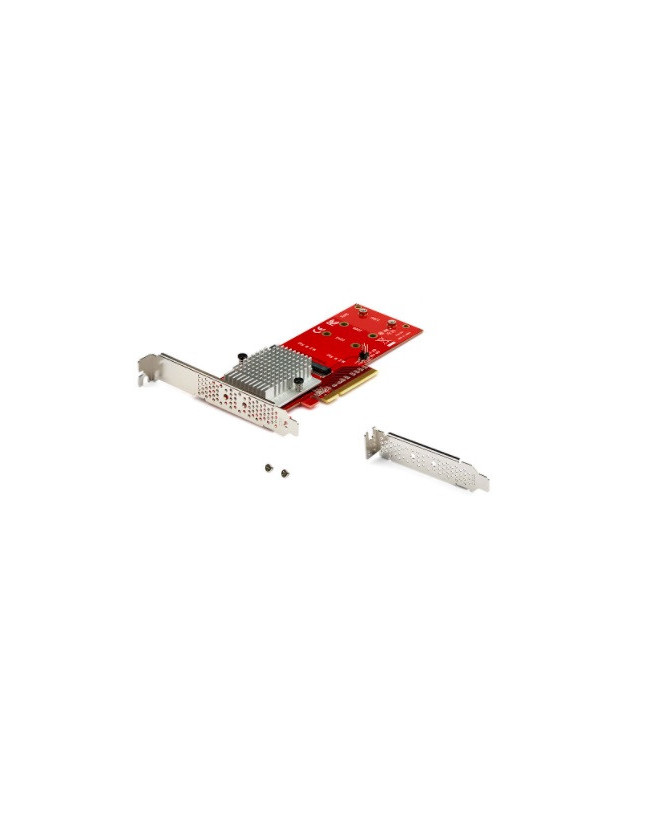

• x8 PCI Express to Dual M.2 PCIe SSD Adapter
• Low-Profile Bracket
• Full-Profile Bracket (Pre-installed)
• 2x SSD Standoff and Installation Screws
• Quick-Start Guide
