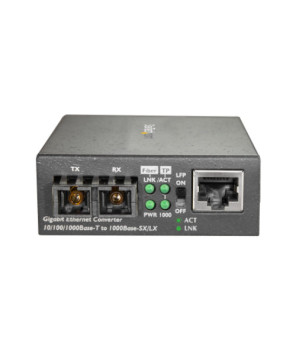

The StarTech MCMGBSCMM055 fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.

The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

You may also check all the media converter we have at The Telecomshop.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging

This item comes with 24-month manufacturer's warranty.

• Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks
• Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)
• Compact design and wall mountable
• LED Indicators for simple Ethernet/fiber network link monitoring
• 850 nm wavelength
• Supports IEEE 802.1q Tag VLAN pass-through
• Non-blocking full wire-speed forwarding rate
• Provides DIP switch supporting Link Fault Pass-through function
• Provides a cost-effective Ethernet to fiber/copper to fiber link

• Product Type: Transceiver/ Media Converter
• PoE: No
• WDM: No
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Max Transfer Distance: 550 m (1804 ft)
• Type: Multi Mode
• Wavelength: 850nm
• Fiber Operating Mode: Full-Duplex
• Auto MDIX: Yes
• Jumbo Frame Support: 9K max.
• Switching Architecture: Store-and-Forward
• MTBF: > 50,000 hours at 25C
• Local Unit Connectors: RJ-45
• Remote Unit Connectors: Fiber Optic SC Duplex
• Power Source: AC Adapter Included
• Output Voltage: 5 DC
• Power Consumption (In Watts): 5
• LED Indicators:
- Power
- FX Link/Activity
- TP Link/Activity
- 1000 Link: ON - Valid Gigabit Link
• Color: Black
• Material: Steel
• Product Length: 2.8 in [70 mm]
• Product Width: 3.8 in [97 mm]
• Product Height: 1.0 in [26 mm]
• Weight of Product : 7.1 oz [200 g]

• 1 x StarTech.com Multimode SC Fiber Ethernet Media Converter 1000Base-SX MCMGBSCMM055
• 1 x Universal Power Adapter (NA/JP, UK, EU, ANZ)
• 1 x Quick-Start Guide
