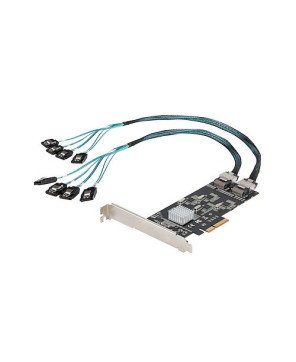

The StarTech SATA PCIe Card Controller 8P6G-PCIE-SATA-CARD is an 8-port SATA III (6Gbps) controller that enables you to add eight SATA 6Gbps hard drives (HDDs) or solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express Gen 2 Specifications and four SATA controllers to deliver a high-performance data storage solution.

Featuring four 2-Port SATA 6Gbps controllers and a PCIe-x4 MUX, this SATA card enables the connection of eight high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via two Mini-SAS ports with two included Mini-SAS to 4x-SATA adapter cables. To ensure a secure connection, each SATA port on the included cables features a locking connector, that will prevent the drive from accidental disconnection when working inside your computer case.

In addition, the SATA controller card features plug-and-play installation and can be installed in full-profile and low-profile computer systems with a full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS), and mdraid/mdadm (Linux), for hassle-free setup, partitioning, and software RAID array building.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with 24-month manufacturer's warranty.

• Quad Controllers to Deliver 8-Port SATA 6Gbps Performance
• Hassle-Free Installation
• Wide Compatibility

• Product Type: SATA Controller
• SAS Connector Details: 2 SFF-8087 (36 Pin, Internal Mini-SAS)
• Total Number of SATA Ports: 8
• Number of SATA Ports (Internal): 8
• Host Interface: PCI Express 2.0 x4
• Device Supported: Server
• Controller Type: Serial ATA/600
• Operating System Supported: Mac OS X 13.0 Ventura, Mac OS X 12.0 Monterey, Mac OS X 11.0 Big Sur,Mac OS X 10.15 Catalina, Mac OS X 10.14 Mojave, Mac OS X 10.13 High Sierra, Windows Server 2022,Mac OS X 10.12 Sierra, Windows Server 2019, Linux 2.6.32, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Server 2003,Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
• Maximum Data Transfer Rate: 5.86 Gbit/s
• RAID Supported: No
• Platform Supported: PC, Mac, Linux
• Environmentally Friendly: Yes
• Weight (Approximate): 75 g
• Form Factor: Plug-in Card
• Length: 149.9 mm
• Height: 15.2 mm
• Width: 68.6 mm

• 1x StarTech 8-Port 6Gbps SATA PCIe Card Controller 8P6G-PCIE-SATA-CARD
• 2x 20 in. (50 cm) Mini-SAS to 4x SATA Cable
• 1x Full-Profile Bracket (Installed)
• 1x Low-Profile Bracket
• User Guide
