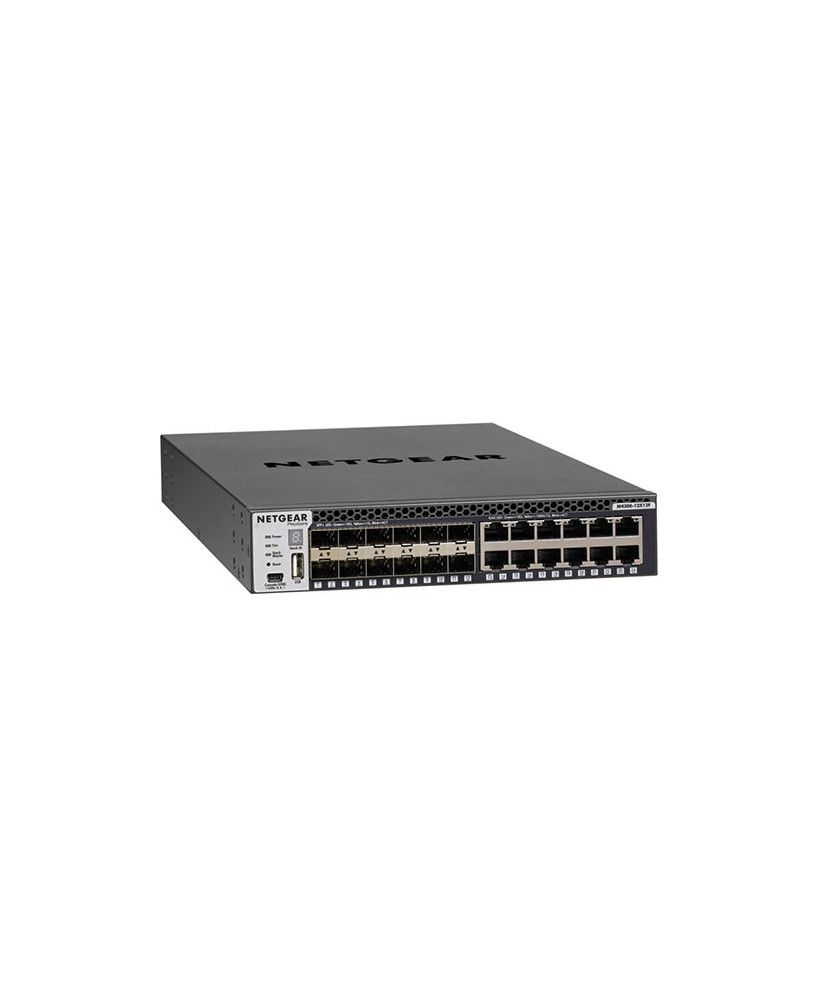

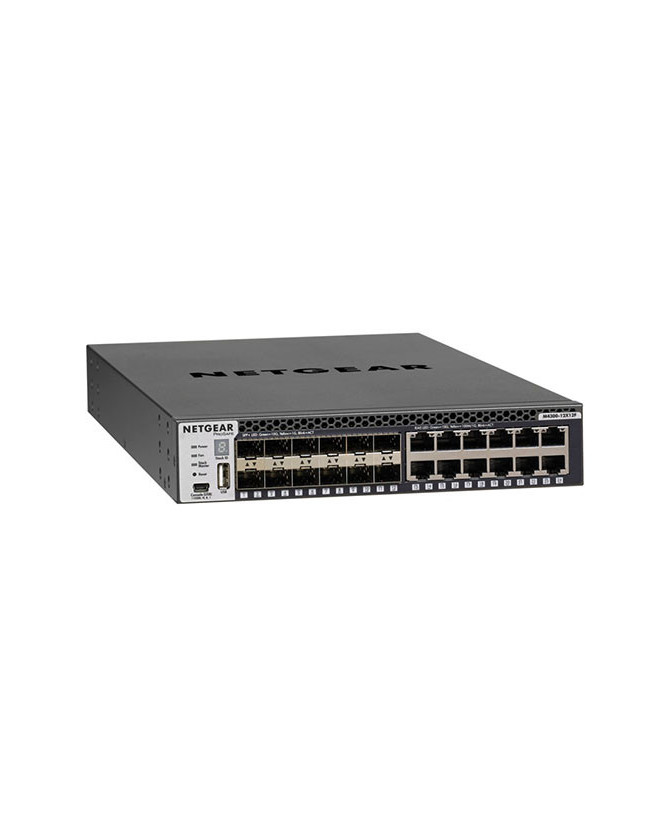

The NetGear XSM4324S-100AJS delivers Layer 3 cost-effective service for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use. This switch can be seamlessly stacked with 1 Gigabit model within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full-width models to contribute to business continuity management. Layer 3 feature set includes static, dynamic, and policy-based routing as standard. Perfect for wireless access, unified communications, and IP video, this switch is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a Limited Lifetime manufacturer's warranty.

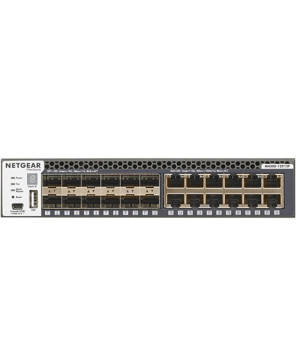

• 12-port 10GBASE-T (RJ45) all independent
• 12-port 10GBASE-X (SFP+) all independent
• 480Gbps non-blocking fabric across 24 ports
• Out-of-band 1G Ethernet management port
• Mini-USB and RJ45 RS232 console ports and USB storage port
• Full L3 feature set and non-stop forwarding (NSF) stacking
• Half-width form factor with one- and two-unit rack mount kit
• Two half-width switches can be installed in a single rack space for redundant top-of-rack
• Ships with one modular APS250W PSU in its power supply slot
• Low acoustics (36.9dB @25°C / 77°F)

• Product Type: Layer 3 Switch
• Power Source: Power Supply
• Layer Supported: 3
• Form Factor: Desktop, Rack-mountable
• Network Technology: 1000Base-SX, 10GBase-LRM, 10GBase-SR, 1000Base-LX, 10GBase-LR, 10GBase-T
• Expansion Slot Type: SFP+
• Manageable: Yes
• Ethernet Technology: 10 Gigabit Ethernet, Gigabit Ethernet
• Number of Total Expansion Slots: 12
• Product Family: ProSafe M4300
• Stack Port: Yes
• Media Type Supported: Optical Fiber, Twisted Pair
• Total Number of Network Ports: 12
• Port/Expansion Slot Details: 10 Gigabit Ethernet
• Redundant Power Supply Supported: Yes
• Shared SFP Slot: No
• Port/Expansion Slot Details: 12 x 10 Gigabit Ethernet Network, 12 x 10 Gigabit Ethernet Expansion Slot
• Weight (Approximate): 3.69 kg
• Height: 43.9 mm
• Width: 212.1 mm
• Depth: 344.9 mm
• Compatible Rack Unit: 1U

• 1x NetGear M4300-12X12F 24-Port Fully Managed Stackable Layer 3 Switch XSM4324S-100AJS
• Power Adapter
• User Guide
