Buy Lenovo Emulex 16Gb FC Single-port PCIe 3.0 Host Bus Adapter 01CV830

Lenovo Emulex 16Gb FC Single-port PCIe 3.0 Host Bus Adapter 01CV830

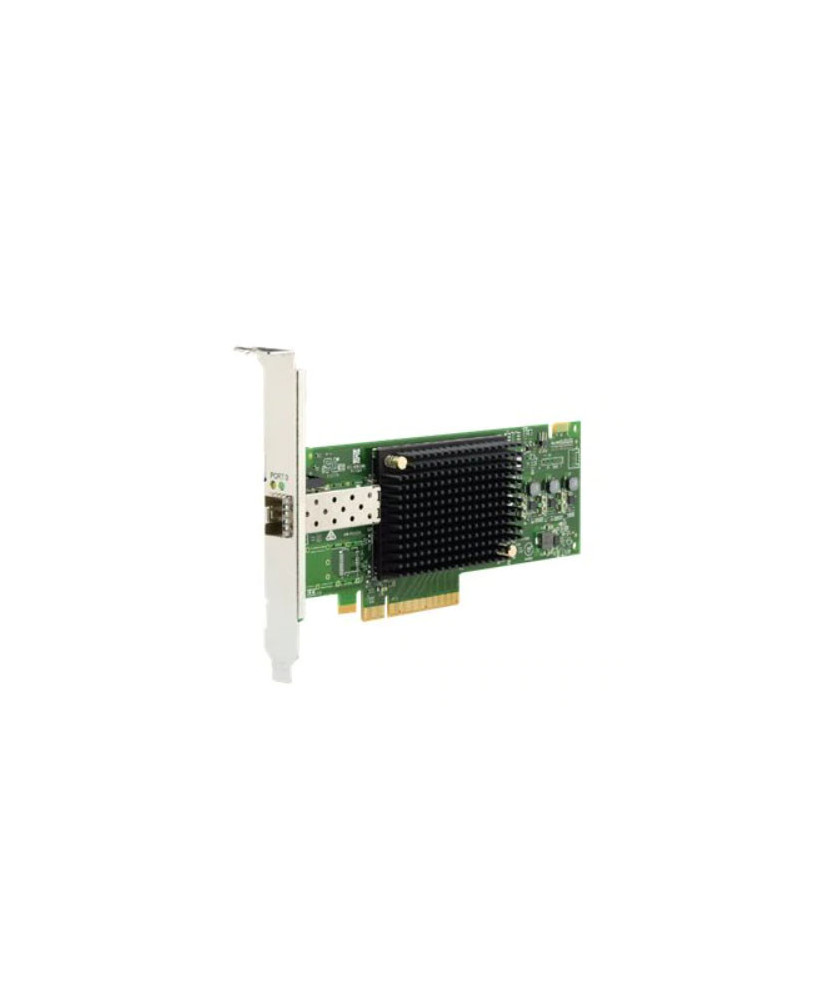

The Lenovo Emulex 16Gb FC Single-port HBA 01CV830 Host Bus Adapter is one of the Emulex 16 Gb Generation 6 Fibre Channel (FC) host bus adapters (HBAs) that have an advanced ASIC which can achieve 1.6M IOPS on a single port by using Emulex's Dynamic Multicore architecture, which dynamically scales HBA resources to any port that needs it. This is essential when ports are used in active-standby mode.

New
L01CV830BN
10000 Items
Hurry up! only 10000 items left in stock!
$967.73
Incl. GST

$879.75

Excl. GST
Add to Wishlist
Add to Compare

  • fast delivery
    FAST DELIVERY Australia wide service
  • australian owned
    AUSTRALIAN OWNED 100% Australian
  • SAVE MONEY SAVE THE ENVIRONMENT
    SAVE MONEY SAVE THE ENVIRONMENT

The Lenovo Emulex 16Gb FC Single-port HBA 01CV830 Host Bus Adapter is one of the Emulex 16 Gb Generation 6 Fibre Channel (FC) host bus adapters (HBAs) that have an advanced ASIC which can achieve 1.6M IOPS on a single port by using Emulex's Dynamic Multicore architecture, which dynamically scales HBA resources to any port that needs it. This is essential when ports are used in active-standby mode. The Emulex 16 Gb Gen 6 FC HBAs can provide near limitless scalability to support maximum VM density, with 2x more on-chip resources and bandwidth. These low latency HBAs can also improve your VDI experience, providing noticeable improvements during boot storms, and allow faster data warehousing, and meet the massive bandwidth requirements of flash storage arrays.

CONDITION

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

WARRANTY

This item comes with 12-month manufacturer's warranty.

FEATURES

• Compatible with NeXtScale nx360 M5 5465; System x3500 M5 5464; x3550 M5 5463, 8869; x3650 M5 5462, 8871; x3750 M4 8753; x3850 X6 6241; x3950 X6 6241; ThinkSystem SR250; SR590; ST250


You may want to check some compatible Lenovo ThinkSystem Server.
Lenovo ThinkSystem SR250 XEON E-2104G 8gb Ram 4-Bay No HDD Server 7Y51A01UAU
Lenovo ThinkSystem SR250 E-2126G 3.3 GHz, 8gb Ram, 4-Bay (No HDD) Server 7Y51A01LAU Lenovo ThinkSystem SR250 E-2126G 3.3 GHz, 8gb Ram, 4-Bay (No HDD) Server 7Y51A01LAU
Lenovo ThinkSystem SR250 XEON E-2104G 8gb Ram 4-Bay No HDD Server 7Y51A01UAU

SPECIFICATIONS

• Device Type: Host bus adapter
• Form Factor: Plug-in card - low profile
• Interface (Bus) Type: PCI Express 3.0 x8
• Ports: 16Gb Fibre Channel
• Dimensions (WxDxH): 16.8 cm x 6.9 cm
• Data Link Protocol: 4Gb Fibre Channel, 8Gb Fibre Channel, 16Gb Fibre Channel
• Data Transfer Rate: 14.025 Gbps
• Performance: Maximum IOPS: 1600000
• Processor: 1 Emulex
• System Requirements: Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 12, VMware vSphere 5.5 update 2, SuSE Linux Enterprise Server 12 SP1, SuSE Linux Enterprise Server 11 SP4 for AMD64/EM64T, SuSE Linux Enterprise Server 11 SP3 for AMD64/EM64T, VMware vSphere 5.5 update 3, VMware vSphere 6.0 update 1, VMware vSphere 6.0 update 2, Red Hat Enterprise Linux 7 Update 2, Red Hat Enterprise Linux 7 Update 1, Red Hat Linux Enterprise Server 6 Update 7 x64 Edition

WHAT'S INCLUDED

• Lenovo Emulex 16Gb FC Single-port HBA 01CV830 Host Bus Adapter
• 3U (standard) and 2U (low-profile) adapter brackets
• Publications package

Do you have a question about this product? Please call 1800 90 90 99.

For more Lenovo Networking parts and accesories, please visit here.

L01CV830BN
New
10000 Items

Specific References

MPN
01CV830

The Lenovo Emulex 16Gb FC Single-port HBA 01CV830 Host Bus Adapter is one of the Emulex 16 Gb Generation 6 Fibre Channel (FC) host bus adapters (HBAs) that have an advanced ASIC which can achieve 1.6M IOPS on a single port by using Emulex's Dynamic Multicore architecture, which dynamically scales HBA resources to any port that needs it. This is essential when ports are used in active-standby mode.
