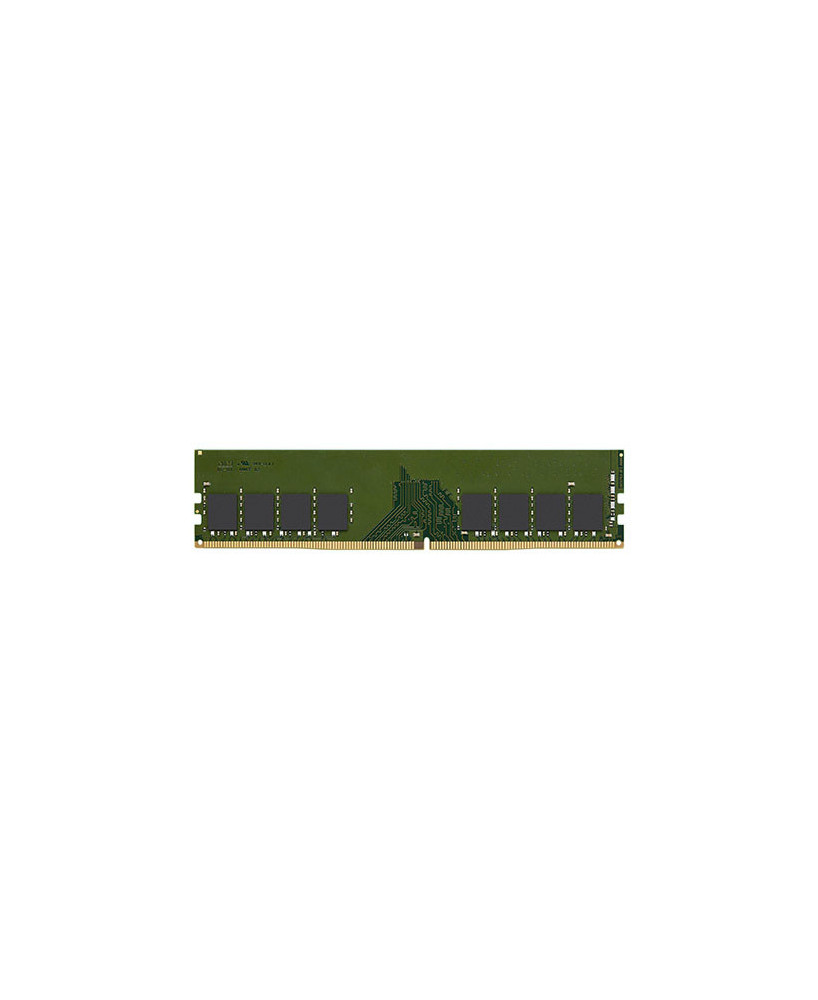

The Kingston ValueRAM 8GB DDR4 SDRAM Memory Module KVR32N22S8/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

You may also check all the Computer Memory , we have at The Telecomshop.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a Limited Lifetime manufacturer's warranty.

• Power Supply: VDD = 1.2V Typicale
• VDDQ = 1.2V Typicale
• VPP = 2.5V Typicale
• VDDSPD = 2.2V to 3.6Ve
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signalse
• Low-power auto self refresh (LPASR)e
• Data bus inversion (DBI) for data buse
• On-die VREFDQ generation and calibratione
• Single-ranke
• On-board I2 serial presence-detect (SPD) EEPROMe
• 16 internal banks; 4 groups of 4 banks eache
• Fixed burst chop (BC) of 4 and burst length (BL) of 8e via the mode register set (MRS)e
• Selectable BC4 or BL8 on-the-fly (OTF)e
• Fly-by topologye
• Terminated control command and address buse
• PCB: Height 1.23” (31.25mm)e
• RoHS Compliant and Halogen-Free

• Product Type: RAM Module
• CAS Latency: CL22
• Device Supported:
- Desktop PC
- Server
• Error Checking: Non-ECC
• Signal Processing: Unbuffered
• Memory Speed: 3200 MHz
• Memory Size: 8 GB
• Memory Technology: DDR4 SDRAM
• Memory Standard: DDR4-3200/PC4-25600
• Memory Voltage: 1.20 V
• Number of Pins: 288-pin
• Form Factor: DIMM
• Length: 133.4 mm
• Width: 31.3 mm

• 1x Kingston ValueRAM 8GB DDR4 SDRAM Memory Module KVR32N22S8/8
• User Guide
