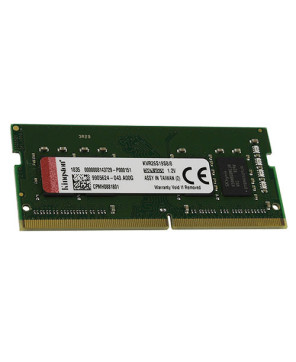

The Kingston KVR26S19S8/8 is a 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a Limited Lifetime manufacturer's warranty.

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free

• Product Type: RAM Module
• CAS Latency: CL19
• Device Supported: Notebook
• Error Checking: Non-ECC
• Signal Processing: Unbuffered
• Memory Speed: 2666 MHz
• Memory Size: 8 GB
• Memory Technology: DDR4 SDRAM
• Memory Standard: DDR4-2666/PC4-21300
• Memory Voltage: 1.20 V
• Number of Pins: 260-pin
• Thickness: 3.7 mm
• Form Factor: SoDIMM
• Length: 69.6 mm
• Width: 30 mm
• Compatibility:
- ASUS/ASmobile - TUF Notebook Gaming FX504
- Gigabyte - AERO Notebook 15/15X (i7-8750H)
- MSI - Notebook GT75 8RG Titan

• 1 x Kingston ValueRAM 8GB DDR4-2666 NON-ECC CL19 260-Pin Memory Module KVR26S19S8/8
• User Guide
