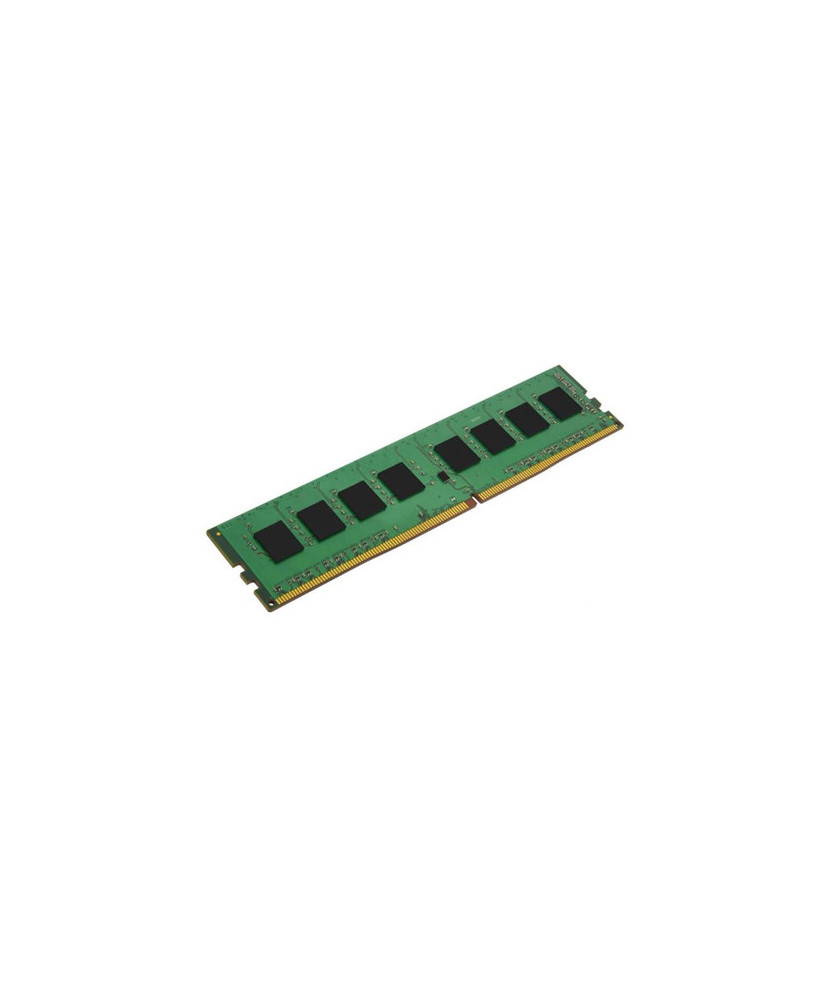

The Kingston KVR32N22D8/16 is a 1 piece 16GB DDR4-3200 CL22 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

You may also check all the Computer Memory , we have at The Telecomshop.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a Limited Lifetime manufacturer's warranty.

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Dual-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free

- Product Type: RAM Module
- CL(IDD): 22 cycles
- Row Cycle Time (tRCmin): 45.75ns(min.)
- Refresh to Active/Refresh: 350ns(min.)
- Command Time (tRFCmin): 32ns(min.)
- Row Active Time (tRASmin): 94 V - 0
- UL Rating: 94 V - 0
- Operating Temperature: 0° C to +85° C
- Storage Temperature: -55° C to +100° C

• 1 x Kingston 16GB DDR4 UDIMM RAM
• User Guide
