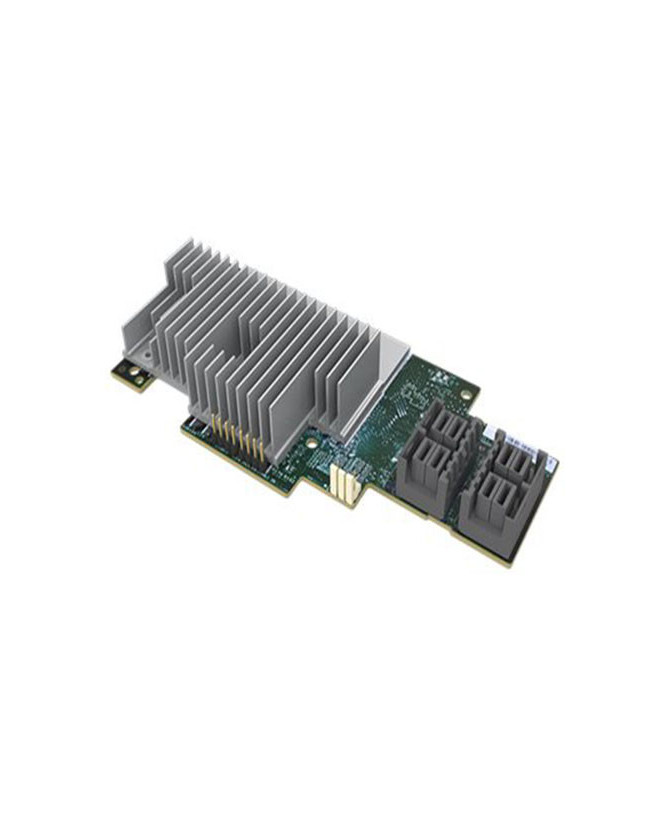

The Intel RMS3VC160 is designed to offer additional advanced RAID and configuration flexibility to the existing Intel® RAID Module RMS3 family line. This product add 16 port direct drive support in either RAID or nonRAID mode. Designed to enable expansion of server storage, the Intel® Integrated RAID Module RMS3VC160 enable exceptional SAS performance and scalability.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 12-month manufacturer's warranty.

• IOC/JBOD mode: The RMS3VC160 utilizes the Broadcom SAS3216 IO controller designed to provide economical connectivity options. The module provides 12Gb/s connectivity, high IOPs, high throughput, and low latency to the attached targets, which enables maximum storage performance to the operating system and applications at a low cost.
• High Drive Count Solutions: This module support up to 16 drives connected directly, but can also connect to and support SAS expanders for additional target scale out. This allows maximum flexibility to balance performance versus connectivity at a low cost.

• Product Description: Intel Integrated RAID Module RMS3VC160 - storage controller - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8
• Device Type: Storage controller - plug-in module
• Bus Type: PCIe 3.0 x8
• Interface: SATA 6Gb/s / SAS 12Gb/s
• Data Transfer Rate: 12 Gbit/s
• Supported Devices: Disk array (RAID)
• Channel Qty: 16
• Max Storage Devices Qty: 1024
• RAID Level: JBOD

• 1 x Intel SATA 6Gb/s / SAS 12Gb/s PCIe 3.0 x8 Integrated RAID Module RMS3VC160
• User Guide
