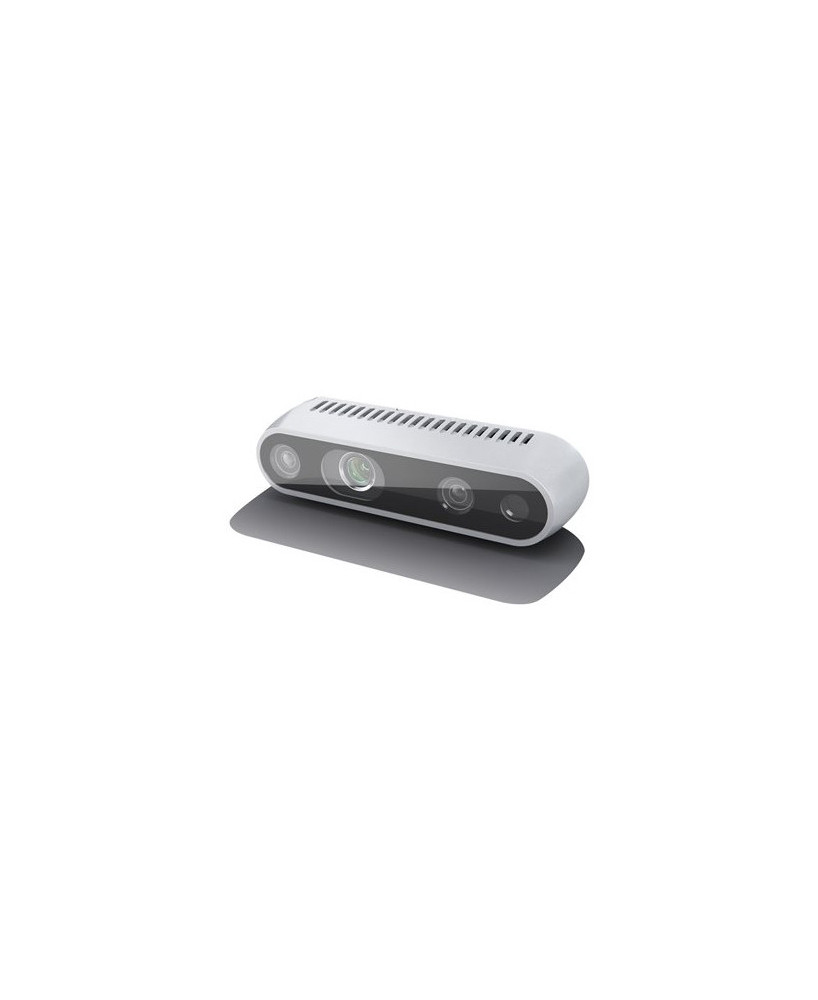

The Intel 82635D435IDK5P is a Realsense D435i depth camera combines the robust depth-sensing capabilities of the D435 with the addition of an inertial measurement unit (IMU). IMU allows your application to refine its depth awareness in any situation where the camera moves. It has an approximately 10 meters maximum range, 1280 × 720 resolution, and up to 90 fps depth frame rate which makes it the preferred solution for applications such as robotic navigation and objects recognition. The Intel 82635D435IDK5P Realsense camera also allows improved environmental awareness for robotics and drones, it makes registration and calibration easier for handheld scanning system use cases and is also important in fields such as virtual/augmented reality and drones.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with 12 month manufacturer's warranty.

• Intel® RealSense™ depth camera D435i combines the robust depth sensing capabilities of the D435 with the addition of an inertial measurement unit (IMU).
• An IMU combines a variety of sensors with gyroscopes to detect both rotation and movement in 3 axes, as well as pitch, yaw and roll.
• The D435i is a powerful complete package which can be paired with customizable software for a depth camera that is capable of understanding it's own movement.
• The global shutter sensors provide great low‑light sensitivity allowing robots to navigate spaces with the lights off.
• Perfect for developers, makers, and innovators looking to bring depth sensing to devices, Intel® RealSense™ D400 series cameras offer simple out‑of‑the‑box integration and enable a whole new generation of intelligent vision‑equipped solutions.

• Device Type: Indoor/Outdoor Depth Camera
• Use Environment: Indoor/Outdoor
• Image Sensor Technology: Global Shutter, 3μm × 3μm pixel size
• Maximum Range: Approx. 10 meters. Accuracy varies depending on calibration, scene, and lighting condition.
• Depth Technology: Active IR Stereo
• Depth Field of View (FOV): 86° × 57° (±3°)
• Minimum Depth Distance (Min-Z): 0.105 m
• Depth Output Resolution: Up to 1280 × 720
• Depth Frame Rate: Up to 90 fps
• RGB Sensor Resolution: 1920 × 1080
• RGB Sensor FOV (H × V × D): 69.4° × 42.5° × 77° (±3°)
• RGB Frame Rate: 30 fps
• Connectors: USB C 3.1 and Gen 1
• Dimension Length × Depth × Height: 90 mm × 25 mm × 25 mm

• 1 x Intel Realsense D435i Depth Camera 82635D435IDK5P
• User Guide

Do you have a question about this product? Please call 1800 90 90 99.
