The Intel AX200.NGWG.DTK Dual Band Wireless-AX WiFi with Bluetooth is designed to support the upcoming IEEE 802.11ax standard – Wi-Fi 6 technology and the Wi-Fi Alliance Wi-Fi 6 certification. IT features support for 2x2 Wi-Fi 6 technology, including new features such as UL and DL OFDMA and 1024QAM, delivering data rates of up to 2.4Gbps and increased network capacity as well as Bluetooth® 5 technology support.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with 12-month manufacturer's warranty.

• By implementing the new 802.11ax standard with its unique features such as OFDMA, 1024QAM, Target Wake Time (TWT) and spatial reuse, Intel Wi-Fi 6 AX200 module enables smooth streaming of high-resolution videos, fewer dropped connections, and faster connections farther away from the router and in dense environments.
• When using Wi-Fi 6 technology with 1024QAM and 160MHz channels, Intel Wi-Fi 6 AX200 module can deliver nearly 3x higher peak data rates3 (up to 2.4Gbps) and up to 4x capacity improvement in dense or congested environments comparing to 802.11ac.
• Intel Wi-Fi 6 AX200 module supports the new WPA3 security features, enabling next-generation authentication and military-grade encryption.
• Bluetooth 5.1 provides 4x5range over Bluetooth 4.2 using the same Tx power, enabling coverage throughout the home. Bluetooth® 5.1 also doubles data rates speed for faster transmissions thereby reducing the overall power consumption. Additionally, Bluetooth® 5.1 adds new enhanced data broadcasting, enabling seamless location-based services and simpler pairing for Bluetooth devices.
• M.2 2230 modules enable system configuration and platform usage flexibility with the useof a standard Key A or Key E socket for attaching the module. M.2 1216 modules enable platform design providing savings on motherboard space and BOM.

• Dimensions (H x W x D): M.2 2230: 22mm x 30mm x 2.4mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom Side)] M.2 1216: 12mm x 16mm x 1.67 (+-0.08)mm
• Weight: M.2 2230: 2.83 +/– 0.3, M.2 1216: 0.67 +/– 0.1 g
• Radio ON/OFF Control: Supported
• Connector Interface: M.2: PCIe, USB
• Operating Temperature (Adapter Shield): 0°C to +80°C
• Humidity Non-Operating: 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C)
• Operating Systems: Microsoft Windows 10, Linux, Chrome OS
• Wi-Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac with wave 2 features, WMM, WMM-Power Save, WPA, WPA2, WPS, PMF, Wi-Fi Direct, Wi-Fi Miracast, Wi-Fi Agile Multiband, Wi-Fi Optimized Connectivity, Wi-Fi Location, Passpoint, Wi-Fi Aware, and Wi-Fi TimeSync
• IEEE WLAN Standard: IEEE 802.11-2016 and select amendments (selected feature coverage) IEEE 802.11a, b, g, n, ac, ax, d, e, h, i, k, r, u, v, w, ai; Fine Timing Measurement based on 802.11-2016
• Bluetooth: Bluetooth 5
• Security Features: Security Methods WPA and WPA2 Personal and Enterprise; WPA3 (pending OS support)
• Authentication Protocols: 802.1X EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0 -MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA’)
• Encryption: -bit and 128-bit WEP, TKIP, 128-bit AES-CCMP, 256-bit AES-GCMP
• Compliance: Regulatory For a list of country approvals, please contact your local Intel representatives.
• Product Safety: UL, C-UL, CB (IEC 60950-1)

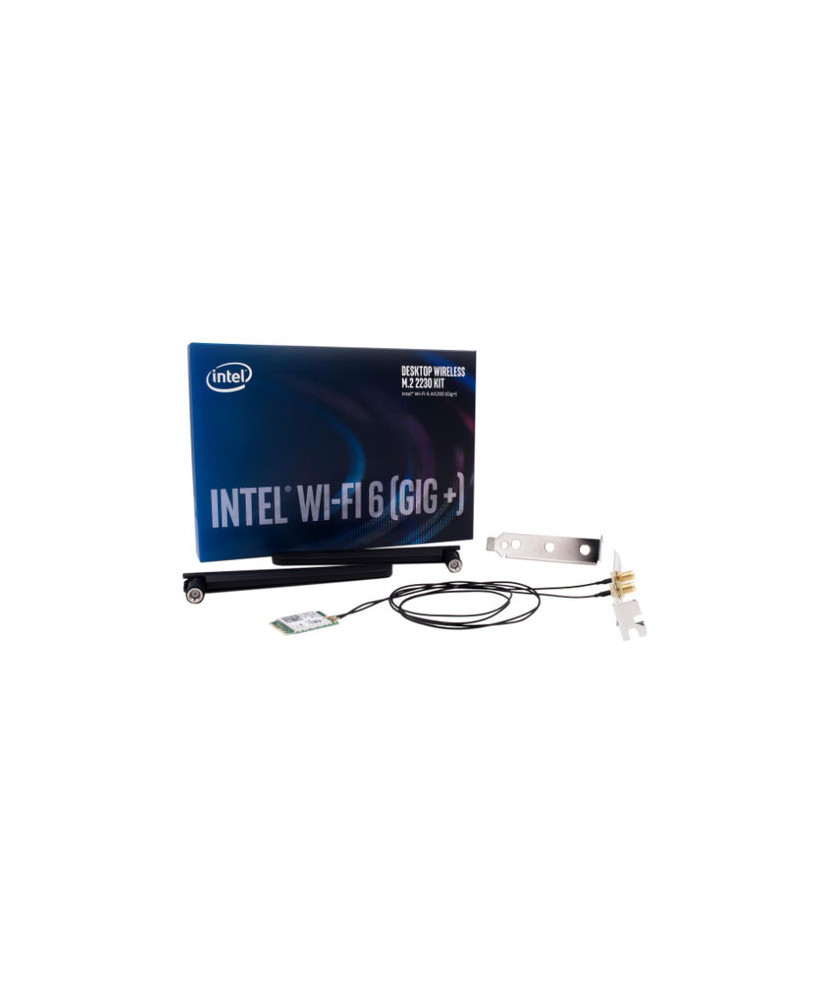

• Intel Wi-Fi 6 AX200 (Gig+) adapter
• Optimized external antenna (2)
• Standard size mounting bracket with RF cables installed
• Low profile mounting bracket
