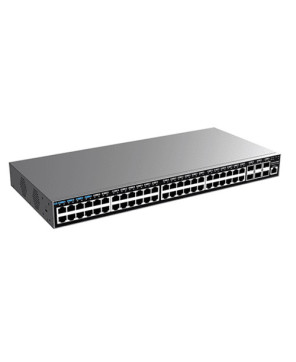

The Grandstream GWN7816(P) is a high-performance Layer 3 managed network switch designed to meet the demands of modern enterprise and SMB networking environments. With 48 Gigabit Ethernet ports and advanced features like VLAN, QoS, and security protocols, it ensures robust, high-speed connectivity for critical business applications.

The GWN7816P variant includes Power over Ethernet (PoE) capabilities, offering up to 30W per port to power IP phones, surveillance cameras, Wi-Fi access points, and other PoE-enabled devices, simplifying deployment and reducing cable clutter.

Equipped with a user-friendly web interface, advanced management options, and compatibility with Grandstream's GWN series, the GWN7816(P) provides scalability and flexibility for dynamic networking needs. Ideal for small to medium-sized businesses, it delivers reliable, high-speed performance with enhanced control and security features.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 12-month manufacturer's warranty.

• 48 Gigabit Ethernet ports and 6 Gigabit SFP+ ports
• Smart power control to support dynamic PoE/PoE+, PoE++ (GWN7816P) power allocation per port for the PoE models
• Supports deployment in IPv6 and IPv4 networks
• Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control, and more
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Embedded controller to manage switch; GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform
• Built-in QoS allows for prioritization of network traffic
• Supports stacking (pending) for easy management on one interface while creating redundant backup between multiple devices

Network Protocols
• IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
PoE Standards
• IEEE 802.3af/at/bt
Gigabit Ports
• 48
SFP+ Ports
• 6
Console
• 1
# of PoE Ports
• 48
PSU
• 1 PSU of 920W by default, support 1 Hot swap PSU(Purchased Separately)
Maximum Output Power Per PoE Port
• 60W(1-8,PoE++) 30W(9-48)
Max Total PoE Output Power
• 740W with 1 PSU
Switching
• 32K MAC addresses, including static, dynamic and filtering MAC address
• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
• VLAN virtual interface
• GVRP(pending)
• 27 link aggregation
• Spanning tree, 64 instances for STP/RTSP/MSTP/PVST(+)
Routing
• Static routing
• Dynamic routing, including RIP, RIPng, OSPF and OSPFv3
• Policy routing(pending)
Mounting
• Desktop, or Rail-Mount(rack-mounting kits included)
LEDs
• 1x tri-color LED for device tracking and status indication
• 2x bi-color LEDs for per power supply PSU1/2
• 54x green-color LEDs for data transferring
• 48x yellow-color LEDs
Dimensions
• 440mm(L)x380mm(W)x44mm(H)

WHAT'S INCLUDED

• 1x Grandstream GWN7816P Enterprise Layer 3 Managed PoE Network Switch
• 1x 1.2m AC Cable
• 1x 25cm Ground Cable
• 4x Rubber Footpads
• 1x Power Cord Anti-Trip
• 2x Front Rack-Mounting Kits
• 2x Rear Rack-Mounting Kits
• 2x Rear Slideways
• 16x Screws(KM 3*6)
• 1x Quick Installation Guide
