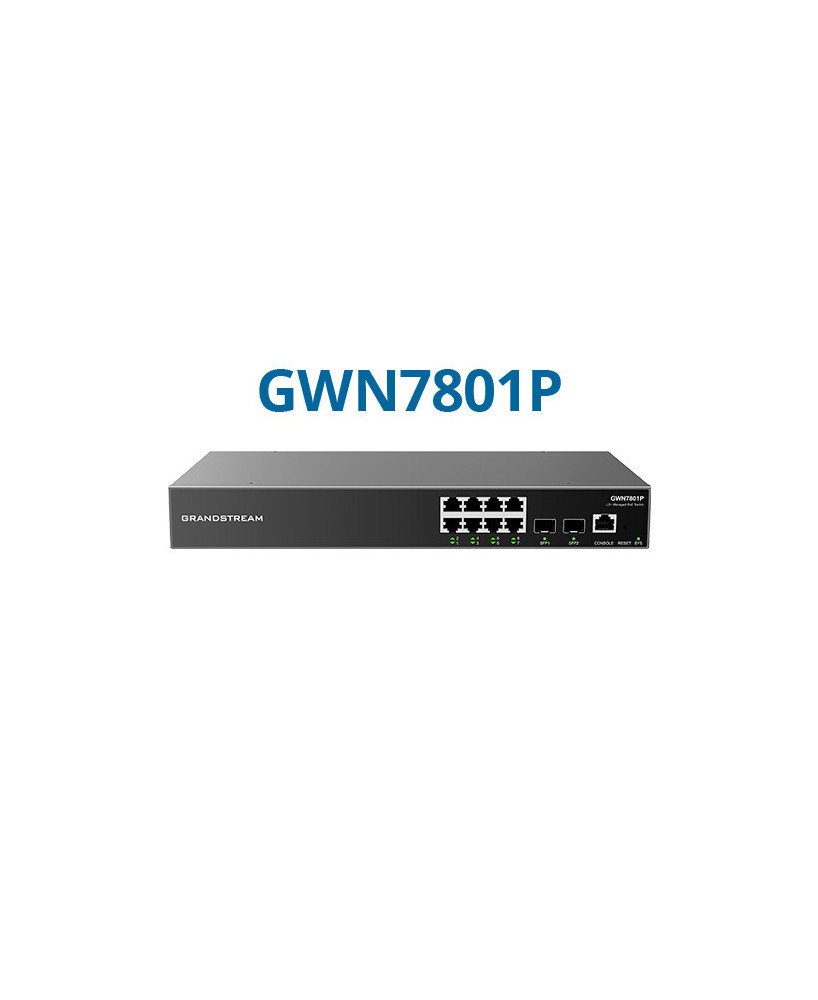

The GWN7801P consists of Layer 2+ managed network switches designed to help small-to-medium enterprises build scalable, secure, and high-performance business networks with full management capabilities.

This switch offers advanced VLAN support for flexible traffic segmentation, advanced QoS for optimized network prioritization, and IGMP Snooping to enhance performance. Comprehensive security features help protect against potential network threats. The PoE models provide intelligent dynamic PoE output, making them ideal for powering IP phones, IP cameras, Wi-Fi access points, and other PoE-enabled devices.

The GWN7801P offers flexible management options, including a local web user interface, as well as cloud and on-premises management via GWN.Cloud and GWN Manager, Grandstream’s dedicated networking platforms.

With its enterprise-grade performance and versatile management options, the GWN7801P series is the perfect choice for small-to-medium businesses looking for reliable, secure, and efficient network solutions.

CONDITION

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

WARRANTY

This item comes with a 12-month manufacturer's warranty.

FEATURES

• 8/16/24 Gigabit Ethernet ports and 2/4 Gigabit SFP ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port
• Supports deployment in IPv6 and IPv4 networks
• Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Local Web UI to manage switch; GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform
• Built-in QoS allows for prioritization of network traffic

QUICK SPECIFICATIONS

• Network Protocols: IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3af/at
• Gigabit Ethernet Ports: 8
• # of PoE Ports: 8
• Integrated Power Supply: 150W
• Max Output Power per PoE Port: 30W
• Max Total PoE Output Power: 120W
• PoE Standards: IEEE 802.3af/at
• Total non-blocking throughput: 10Gbps
• Switching Capability: 20Gbps
• Forwarding Rate: 14.88Mpps
• Switching:
- 8K static, dynamic and filtering MAC addresses
- 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
- VLAN virtual interface
- GVRP (pending)
- 8 link aggregation groups
- Spanning tree, 16 instances for STP/RSTP/MSTP
• Security:
- User hierarchical management and password protection, HTTPS, SSH, Telnet
- 802.1X authentication
- AAA authentication including RADIUS, TACACS+
- Storm control
- Port isolation, port security, sticky MAC
- Filtering MAC address
- IP source guard, DoS attack prevention, ARP inspection
- DHCP Snooping
- Loop protection including BPDU protection, root protection and loopback protection
- Kensington Security Slot (Kensington Lock) support
• LEDs: 1x tri-color LED for device tracking and status indication, 10x green-color LEDs for data ports, 8x yellow-color LEDs for PoE ports
• Dimensions: 330mm(L)x175mm(W)x44mm(H)
• Unit Weight: 2Kg
• Mounting: Desktop, Wall-Mount, or Rack-Mount(rack-mounting kits included)

WHAT'S INCLUDED

• 1x Grandstream GWN7801P Layer 2+ Managed Network Switch
• 1x 1.2m(10A) AC Cable
• 8x screws
• 1x Ground Cable
• 4x Rubber Feet
• 1x Quick Installation Guide
• 1x Power Cord Anti-Trip
