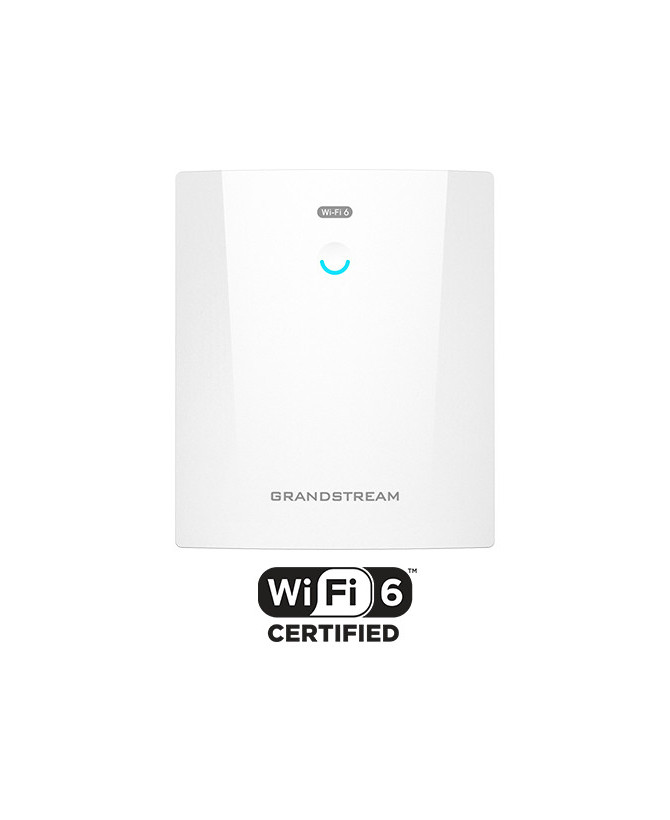

The GWN7660ELR is a high-performance, long-range Wi-Fi 6 access point designed for enterprise-grade networking in high-density environments. An IP67-rated weatherproof casing, heat-resistant technology, and extended 300-meter coverage ensure reliable performance in indoor and outdoor deployments, even under extreme weather conditions (-30°C to 60°C). It is ideal for enterprises, multi-floor offices, warehouses, hospitals, schools, and other large-scale or outdoor Wi-Fi deployments.
With robust performance, long-range coverage, and enterprise-grade security, the GWN7660ELR is the perfect Wi-Fi 6 solution for businesses seeking high-speed, reliable, and scalable wireless networking.

CONDITION

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

WARRANTY

This item comes with a 12-month manufacturer's warranty.

FEATURES

• 3 Gbps aggregate wireless throughput, 1 Gbps RJ45, and 2.5 Gbps SFP wireline ports
• Dual-band 2x2:2 MIMO with OFDMA technology
• Self-power adaptation upon auto-detection of PoE or PoE+
• Support 256 concurrent Wi-Fi client devices
• Up to 300-meter coverage range
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Flexibility of 5 internal antennas
• Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

QUICK SPECIFICATIONS

• Wi-Fi Standards: IEEE 802.11 b/g/n/ac/ax

• Antennas:
5 individual internal antennas
2.4GHz x 2 , gain 5.5 dBi
5 GHz x 2, gain 6.0 dBi
BT gain 4.5 dBi
• Wi-Fi Data Rates:
5G:
IEEE 802.11ax: 7.3 Mbps to 2403 Mbps
IEEE 802.11ac: 6.5 Mbps to 1734 Mbps
IEEE 802.11n: 6.5 Mbps to 300 Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps
IEEE 802.11n: 6.5 Mbps to 300 Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between de- vices, radio interference in the operating environment and mix of devices in the network
• Frequency Bands:
2.4GHz: 2400-2483.5MHz
5GHz: 5150-5850 MHz
*Not all frequency bands can be used in all regions
• Channel Bandwidth:
2.4G: 20 and 40 MHz
5G: 20, 40, 80 and 160 MHz
• MIMO: 2×2:2 2.4GHz, 2×2:2 5GHz
• Coverage Range: Up to 300 meters
*coverage range can vary based on the environment
• SSIDs: 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
• Concurrent Clients: 256
• Network Interfaces: 1x 1G RJ45 Port and 1x 2.5G SFP Port
• Bluetooth: BLE 5.2
• Auxiliary Ports: 1x Reset Button
• Mounting: Wall mount or pole mount, kits included (The mounting kits can be adjusted and rotated by 60°)
• LEDs: 1 tri-color LED for device tracking and status indication; 1 single-color LED for SFP
• Weatherproof Grade: IP67-level weatherproof capability
• Physical Unit Dimension:
Unit Dimension: 270mm x 230mm x 57mm
Unit (including brackets): 1kg
Entire Package Dimension: 439mm x 329mm x 137mm
Entire Package Weight: 2.4kg

WHAT'S INCLUDED

• 1× Grandstream GWN7660ELR Enterprise-Grade 2x2:2 Wi-Fi 6 Weatherproof Long-Range Outdoor Access Point
• Mounting Kits
• Quick Installation Guide
