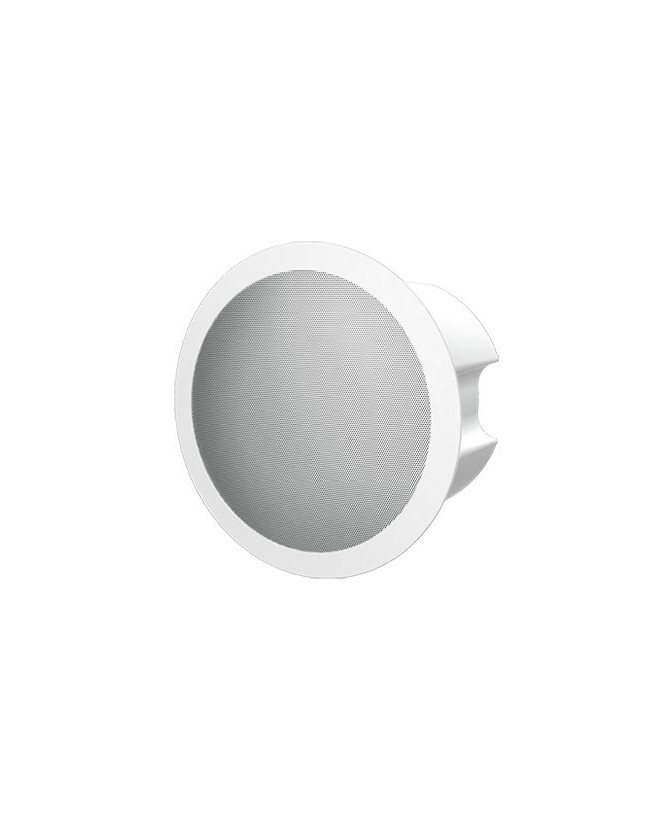

The Fanvil SIP Ceiling Speaker FH-S01 is the ultimate solution for all your paging, multicasting, broadcasting, and talkback needs. This powerful device supports up to 10 multicast zones with prioritization, ensuring seamless communication across different areas.

One of the key benefits of the FH-S01 is its high-intelligibility performance, thanks to the advanced G.722 and Opus codecs. These codecs deliver crystal clear audio, allowing for effective communication in any environment. Whether it's a school, office, station, retail store, or factory, the FH-S01 is the perfect fit.

The FH-S01 is equipped with all-in-one functionalities, combining an audio codec, digital amplifier, and speaker into a compact and efficient unit. With an audio power of up to 20W, thanks to the built-in class D amplifier, the FH-S01 ensures a powerful and immersive sound experience.

Another notable feature of the FH-S01 is its support for talkback functionality. With a built-in microphone, users can easily engage in two-way communication, enhancing collaboration and efficiency. This feature is particularly useful in scenarios where immediate response is required.

Customization options are also available with the FH-S01. Users can easily customize WAV files for emergency notifications and alarming, ensuring that critical messages are delivered effectively. Moreover, the FH-S01 can be linked with security alarming devices, providing a comprehensive security solution.

Setting up and configuring the FH-S01 is a breeze. It supports remote configuration via a web page and auto-provisioning, ensuring a hassle-free installation process. Additionally, the FH-S01 is equipped with an integrated PoE (IEEE 802.3af, class 0) that provides power and network connectivity with a single Ethernet cable.

In summary, the Fanvil SIP Ceiling Speaker FH-S01 is a powerful and versatile device that offers a wide range of functionalities. With its high-intelligibility performance, support for multicast zones, talkback capabilities, customization options, and ease of configuration, it is the ideal choice for any communication needs. Don't miss out on this top-notch product from Fanvil that guarantees outstanding performance and reliability. Shop now at the Telco Shop and benefit from our competitive prices.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 24-month Manufacturer's warranty.

• All in one functionalities with audio codec, digital amplifier and speaker
• High-intelligibility performance with G.722&Opus codecs
• Support up to 10 multicast zones with prioritization
• Audio power up to 20W with built-in class D amplifier
• Support talkback with built-in microphone
• Customize the WAV file for emergency notification and alarming
• Linkage with security alarming devices
• Support remote configuration via web page and auto-provisioning
• 10/100 Mbps Ethernet, Integrated PoE(IEEE 802.3af, class 0)
• Ideal for school, office, station, retail, factory, etc

Generic
- 2 SIP lines
- Ceiling installation
- MP3 broadcasting
- 10 multicast zones
- Talkback application
- Link with security alarm device
- PoE enabled
- Support DC power supply

Device Functions
- Auto-answering
- Network time synchronization
- Web page volume adjustment
- Dynamic multicast function
- Support recording (through server)
- Action URL / Active URI

Audio
- Audio codecs: G.711A/U, G.729A/B, iLBC, G.723, G.726-32K,G.722, Opus
- Speaker:
➢ Frequency response:100-20KHz
➢ Sensitivity:89dB±3dB 1m/1W
➢ Impedance:8Ω
➢ MAX SPL:96 dB
➢ Audio Power:
PoE/10W,12V/10W,18V/15W,24V/20W ;
related to power supply voltage.
- Mic:
➢ Omni-Directional
➢ Sensitivity:-36±3dB, impedance 2.2k ohm, bias voltage 2V

Network
- 10/100 Mbps
- Network mode:IPv4/IPv6/IPv4&IPv6
- IP Setting:Static IP / DHCP / PPPoE
- VPN: L2TP / OpenVPN
- VLAN
- LDP
- QoS

Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPv6
- PPPoE
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069

Deployment & Management
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP/PnP/TR-069
- Web management portal
- Web-based Packet-dump
- Configuration export / import
- Firmware upgrade
- Syslog

Physical Specifications
- DC port x1: DC power input
➢ Port:2 Pin terminal socket
- RJ45 port x1: connect the network
➢ Power over Ethernet(IEEE 802.3af, class 0)
- Short circuit input and output port x1(built in relay)
➢ Relay:MAX DC30V/2A
➢ Port:terminal socket
- Blue LED x1:Power status
- DC power input: DC 12~24V/2A
- Power Consumption (PoE): 1.31~11.82W
- Power Consumption (Adapter): 0.76~14.71W
- Qty/CTN: 20pcs
- N.W/CTN: 7.66 kg
- G.W/CTN : 10.88 kg
- Working temperature: -20℃~ 50℃
- Storage temperature: -30℃~ 60℃
- Working humidity: 10~95%
- Installation: Ceiling-mounted
- Color: White
- Device overall dimensions: 238.5mm x 238.5mm x 148.3mm
- Device back box dimensions: 202.5mm x 202.5mm x 139mm

• Fanvil SIP Ceiling Speaker FH-S01
• User Guide
