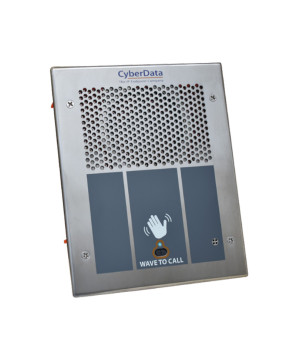

The CyberData SIP Hand Wave Indoor Intercom 011530 is a touch-free, gesture-activated device designed for secure two-way communication and access control in VoIP phone systems. A simple hand wave triggers the intercom, making it an efficient and hygienic solution.

Ideal for medical facilities, schools, offices, retail spaces, warehouses, and manufacturing plants, this intercom enhances safety and convenience in high-traffic areas while reducing the need for physical contact.

CONDITION

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

WARRANTY

This item comes with a 24-month manufacturer's warranty.

FEATURES

• Full duplex audio with enhanced acoustic echo cancelling
• Simultaneous SIP and multicast
• Supports user-uploadable ring and alert tones
• Loud/Night Ringer function - second SIP extension
• Can receive pages directly from Poly phones as well as other devices that send standard multicast
• Touchless activation reduces spread of infectious diseases
• Distance for hand wave activation can be set for 2,4,or 6 inches
• DTMF-controlled dry relay contact for auxiliary control
• Door closure and tamper alert signal
• Network volume control
• Supports Auxiliary Strobe Kit for visual notification
• Easy-to-clean stainless steel faceplate
• Flush mounting offers a clean streamlined installation
• TLS 1.2 and SRTP enhanced security for IP endpoints in a local or cloud-based environment
• Autoprovisioning via HTTP, HTTPS, or TFTP
• HTTPS or HTTP web based configuration. HTTPS is enabled by default.
• Configurable event generation for device health and monitoring
• 802.11q VLAN tagging
• Web-based upgradeable firmware
• Support for Cisco SRST resiliency

QUICK SPECIFICATIONS

• Ethernet Interface: 10/100 Mbps
• Protocol: SIP RFC 3261 Compatible
• Power Input: PoE 802.3af compliant or +8 to +12VDC @ 1000mA Regulated Power Supply (not included)
• Speaker Output: 802.3af - SPL 85dB @ 1 meter
• On-Board Relay: 1A @ 30 VDC
• Supported Audio Codecs: G.711 a-law, G.711µ-law, G.722, G.729
• Network Security: TLS 1.2, SRTP, HTTPS
• Operating Temperature: -40°C to 55°C (-40°F to 131°F)
• Humidity: 5-95%, non-condensing
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Storage Altitude: Up to 15,000 ft. (4573 m)
• Dimensions: 148mm (L) x 59mm (W) x 183mm (H)
• Weight: 0.45 kg (1.0 lbs)
• Compliance: CE (EMC Directive - Class A EN 55032 & EN 55024), LV Safety Directive EN 62368-1, RoHS Compliant, FCC Part 15 Class A, Industry Canada ICES-3 Class A, IEEE 802.3 Compliant, TAA Compliant

WHAT'S INCLUDED

• CyberData SIP Hand Wave Indoor Intercom 011530
• User Guide

Do you have a question about this product? Please call 1800 90 90 99.
