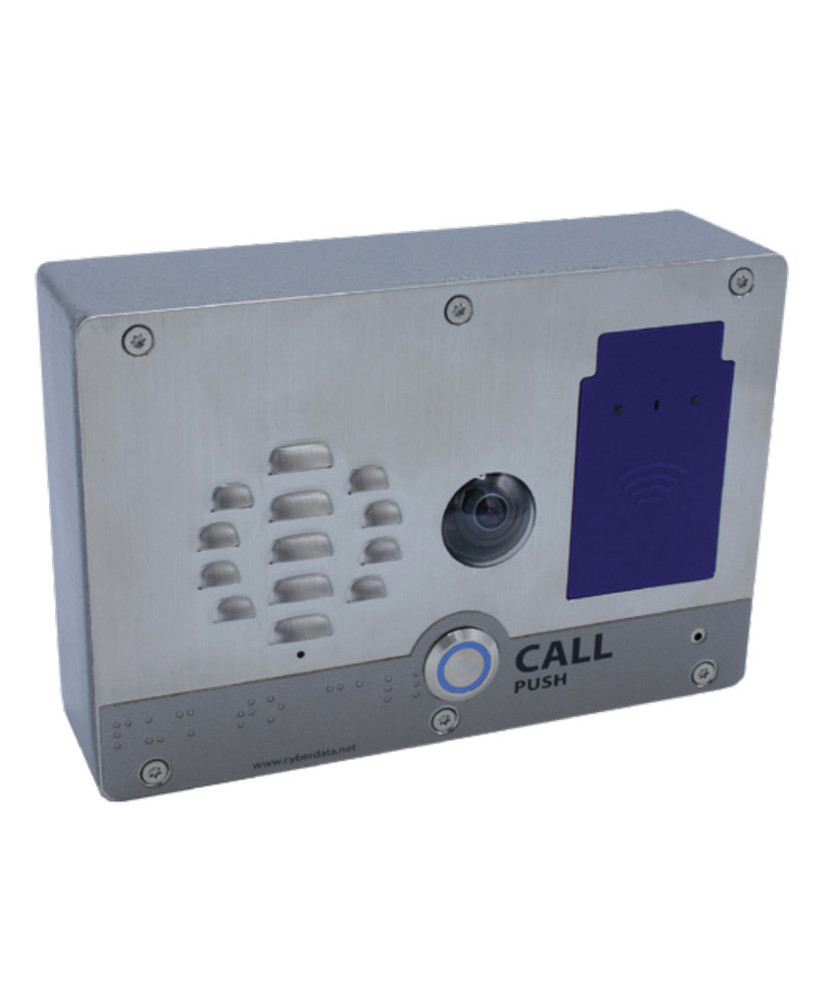

The CyberData SIP h.264 Video Outdoor Intercom with RFID 011478 is an advanced access control system designed for secure entry management. It features high-quality video with low-light capability, two-way communication, and encrypted RFID access, making it ideal for VoIP security solutions.

With support for up to 500 RFID cards, the system ensures efficient access control. If a blacklisted card is used, it will trigger a phone call with a pre-recorded message or send a multicast alert to IP notification endpoints. Access codes can be managed via the web interface, imported, or auto-provisioned for seamless updates. For easier RFID enrollment, the 011425 RFID Secure Access Endpoint is recommended.

CONDITION

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

WARRANTY

This item comes with a 24-months manufacturer's warranty.

FEATURES

• Mifare Plus X 2K/4K cards are supported for a high level of encryption. This product comes with five RFID cards.
• Built-in time of access scheduler
• Local and remote logging with time stamp
• NTP time support
• Supports 500 RFID Cards
• Blacklisted card alert via dialout or multicast
• Full duplex audio with enhanced acoustic echo cancelling
• Half duplex push-to-talk audio from the phone side using the phone's keypad or from the intercom side using the call button
• Simultaneous SIP and multicast
• Supports user-uploadable ring and alert tones
• Loud/Night Ringer function - second SIP extension
• Can receive pages directly from Poly phones as well as other devices that send standard multicast
• Adjustable camera angle
• Alert buzzer
• Red/Green lock status lights
• DTMF-controlled dry relay contact for auxiliary control
• Door closure and tamper alert signal
• Network volume control
• Supports Outdoor Auxiliary Strobe Kit for IP66-rated outdoor visual notification
• TLS 1.2 enhanced security for IP endpoints in a local or cloud-based environment
• Autoprovisioning via HTTP, HTTPS, or TFTP
• HTTPS or HTTP web-based configuration. HTTPS is enabled by default
• Configurable event generation for device health and status monitoring
• 802.11q VLAN tagging
• Web-based upgradeable firmware
• Support for Cisco SRST resiliency

QUICK SPECIFICATIONS

• Ethernet Interface: 10/100 Mbps
• Protocol: SIP RFC 3261 Compatible
• RFID Card Protocol: ISO/IEC 14443 Type A - 13.56 MHz Standard
• Power Input: PoE 802.3af compliant or +8 to +12VDC @ 1000mA Regulated Power Supply (not included)
• Audio Output (Max): 86dB @ 1 meter (PoE 802.3af)
• Power Rating (Max): 5-Watts (PoE 802.3af)
• On-Board Relay: 1A @ 30 VDC
• Supported RFID Cards: Mifare Plus X 2K or 4K
• Audio Codecs: G.711 a-law, G.711 µ-law, G.722, and G.729
• Video Codec: H.264 Baseline
• Camera Resolution: 320 x 240
• SIP Video Payload: Baseline profile @ 320x240
• Video Lens Angle: 72 degrees, with 30-degree mechanical adjustment
• Network Security: TLS 1.2
• IP Rating: IP65
• Operating Temperature: -40°C to 55°C (-40°F to 131°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 5-95%, non-condensing
• Storage Altitude: Up to 15,000 ft. (4573 m)
• Dimensions (L x W x H): 190 mm x 58 mm x 130 mm
• Weight: 1.27 kg (2.8 lbs.)
• Boxed Weight: 1.81 kg (4.0 lbs.)
• Compliance: CE (EMC Directive Class A EN 55032 & EN 55024), LV Safety Directive EN 62368-1, RoHS Compliant, FCC Part 15 Class A, Industry Canada ICES-3 Class A, IEEE 802.3 Compliant, TAA Compliant

WHAT'S INCLUDED

• Cyberdata SIP h.264 Video Outdoor Intercom with RFID 011478
• User Guide
