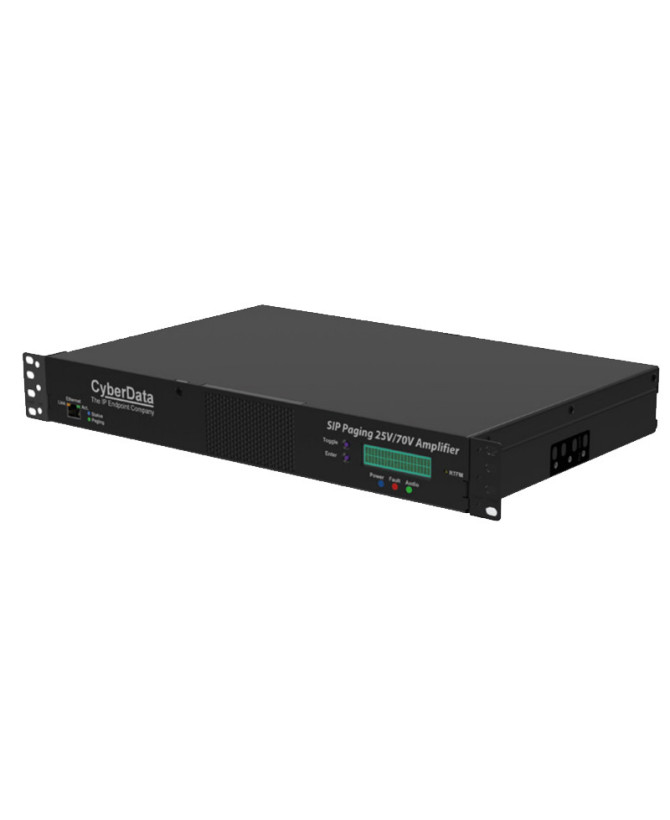

The CyberData 011579 is a cost-effective hybrid solution that integrates analog and IP paging systems. It allows users to connect CyberData or existing 70V and 25V constant voltage speakers, along with CyberData multicast endpoints, within a VoIP environment. This amplifier supports multicast transmission and reception, including integration with Poly phone channels, making it a versatile choice for businesses.

With a built-in calendar-based scheduler, the amplifier enables automated bells and prerecorded messages to be sent to specific multicast zones or a single analog zone. For larger setups requiring multiple analog zones, additional SIP Paging 25V/70V Amplifiers can be added. This solution is ideal for organizations looking for a scalable and efficient paging system.

CONDITION

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

WARRANTY

This item comes with a 24-month manufacturer's warranty.

FEATURES

• Supports Analog Zones: Connects hundreds of 25V or 70V speakers/horns using a single home run cable to the amplifier.
• Calendar-Based Bell Scheduler: Allows scheduled bell ringing for time-based notifications.
• Security Code Protection: Prevents unauthorized paging access with a security code.
• Advanced Paging Capabilities: Supports 100 DTMF-controlled paging groups, transmitting audio via multicast and a single analog channel.
• Unlimited Multicast Paging: Can send pages to unlimited endpoints that support multicast or Poly pages on any Poly channel.
• Direct Paging Support: Receives pages from Poly phones and other multicast-enabled devices.
• Call-In Message Recording: Supports recording of messages for later playback.
• Paging Prioritization: Ensures important messages take precedence over others.
• Loud/Night Ringer Function: Includes a second SIP extension for night ringing.
• Delayed Paging & Call Buffering: Allows call buffering for delayed message broadcasting.
• Multiple User Accounts: Supports multiple users with different access levels.
• Master Volume Control: Adjustable via web interface or front panel LCD controls.
• Fault Sense Input: Monitors system integrity for potential issues.
• Background Music Support: Includes a line-in for playing background music.
• NTP-Based Internal Clock: Features a built-in clock with battery backup for accurate timekeeping.
• LCD Display: Provides real-time status, configuration, and diagnostics monitoring.
• Configurable Alerts: Sends alerts for amplifier temperature threshold, protection, and recovery modes.
• Rack Mountable: 19-inch rack-mountable design with removable rack ears for flexible installation.
• Enhanced Security: Supports TLS 1.2 and SRTP for secure IP-based communication.
• Web-Based Configuration: HTTPS web interface for easy device management.
• Cisco SRST Resiliency: Ensures continued operation during network failures.
• Auto-Provisioning: Supports HTTPS, HTTP, and TFTP for remote configuration.
• Device Health Monitoring: Generates configurable events for system health tracking.
• 802.11q VLAN Tagging: Supports VLANs for improved network management

QUICK SPECIFICATIONS

• Ethernet Interface: 10/100 Mbps
Protocol: SIP RFC 3261 Compatible

Power Input: AC Voltage Input 100-240VAC, 50/60 Hz

Analog Zone Output:
- Continuous power output: Up to 392W (70V distributed speakers, load > 12-Ohms)
- Continuous power output: Up to 160W (25V distributed speakers, load > 4-Ohms)

Line In:
- Input Signal Amplitudes: 2.0 VPP maximum
- Input Impedance: 10k Ohm

Line Out:
- Output Signal Amplitudes: 2.0 VPP maximum
- Output Level: +2dBm nominal
- Total Harmonic Distortion: 0.5% maximum
- Output Impedance: 10k Ohm

Payload Types: G.711 a-law, G.711µ-law, G.722, G.729

Network Security: TLS 1.2, SRTP, HTTPS

Operating Range:
- Temperature: 15°C to 27°C (60°F to 80°F)
- Humidity: 5-95%, non-condensing

Storage Conditions:
- Temperature: -40°C to 70°C (-40°F to 158°F)
- Altitude: Up to 15,000 ft. (4573 m)

Dimensions:
- With Rack Ears: 19.0 inches [482.6 mm] Length
- Without Rack Ears: 16.85 inches [428.0 mm] Length
- Width: 10.83 inches [275.0 mm]
- Height: 2.25 inches [57.2 mm]

Weight: 11.2 lbs [5.1 kg]

Compliance:
- CE: EMC Directive - Class A (EN 55032 & EN 55024)
- LV Safety Directive - EN 62368-1
- RoHS Compliant
- FCC Part 15 Class A
- Industry Canada ICES-3 Class A
- IEEE 802.3 Compliant
- TAA Compliant

WHAT'S INCLUDED

• CyberData Hybrid Analog/IP 25V/70V SIP Paging Amplifier 011579
• User Guide
