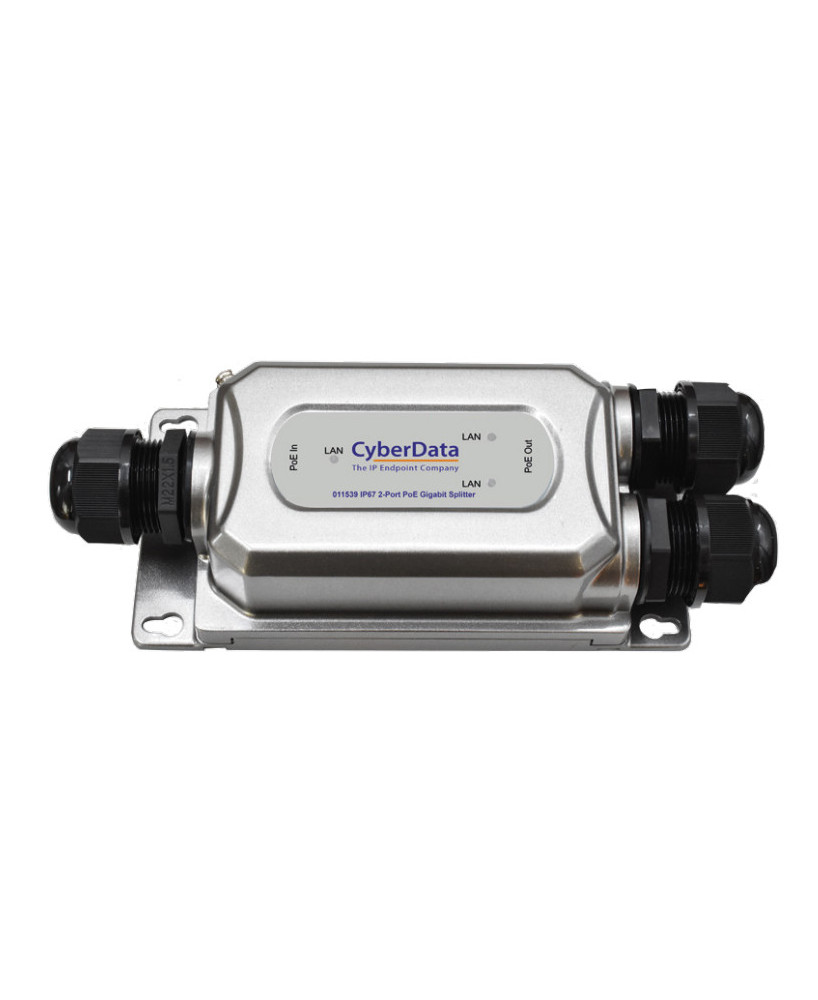

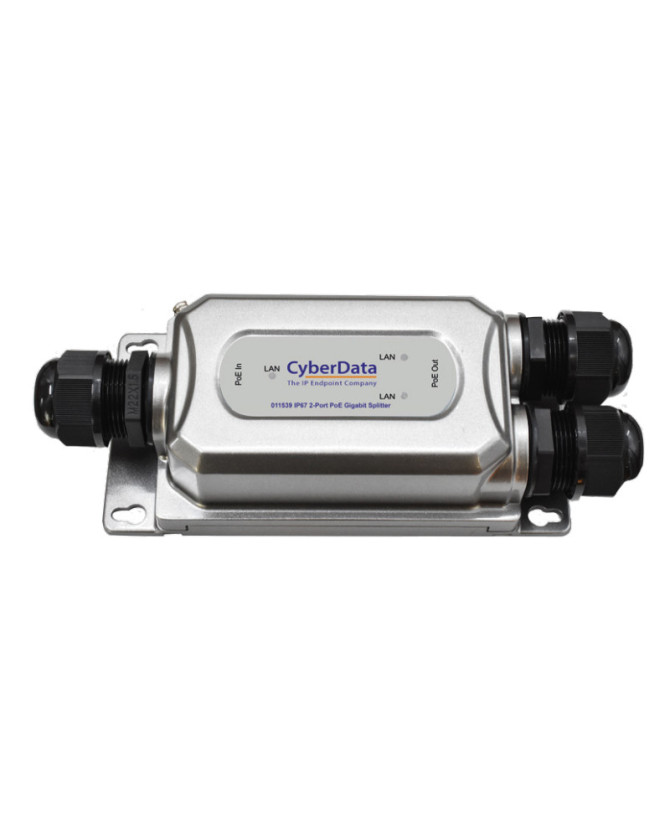

The CyberData 2-Port IP67 Gigabit Switch 011539 is a rugged, weather-resistant PoE switch designed for outdoor and hazardous environments. It supports PoE 802.3bt Type 4 (90W) input and provides two 802.3at (29.5W) outputs, making it perfect for splitting a single PoE network cable into two separate PoE drops.

With data transmission and PoE power supply up to 100m, it’s ideal for large installations. One port can power an 802.3at security camera, while the other can connect to a CyberData SIP IP66 Outdoor Horn. The unit is self-contained and requires no external power supply.

CONDITION

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

WARRANTY

This item comes with a 24-month manufacturer's warranty.

FEATURES

Power
• Fully compliant to IEEE 802.3af/at/bt standard
• 1 Power Device (PD) input port 802.3bt Type 4 and Type 3, or 802.3at
• 2 Power Source Equipment (PSE) output ports 802.3at

Data
• Power and data carried over the same cable
up to 100m from PSE
• All ports are 10/100/1000Mbps (10BASE-T,
100BASE-TX, 1000BASE-T) auto sensing based upon the port's individual connection
• Each port has auto MDI-X
• 802.11q VLAN tagging
• Automatic address learning, address aging and address migration
• Supports 9216-byte jumbo frame length

Notification
• Link/Status LEDs

QUICK SPECIFICATIONS

• Ethernet I/F: 10/100/1000 Mbps, Auto MDI-X, RJ45

Power Distribution:

• Input: 802.3bt Type 4 (90W)
• Corresponding Output: Each 802.3at output port supports up to 29.5W

• Input: 802.3bt Type 3 (60W)
• Corresponding Output: 802.3at output port 1 supports 29.5W and 802.3at output port 2 supports 25W

• Input: 802.3at (25.5W)
• Corresponding Output:Each 802.3at output port supports 10W

• IP Rating: IP67
• Impact Rating: IK10
• Humidity: 10-90%, non-condensing
• Storage Altitude: Up to 15,000 ft. (4573 m)
• Weight: 0.85 lbs [0.39 kg]
• Compliance: CE: EMC Directive – Class A EN 55032, EN 55035, & EN 61000, Safety Directive 2001/95/EC; CISPR 32; FCC Part 15 Subpart B; ICES-003; RoHS Compliant

• Dimensions:
- 6.69 in. [169.8 mm] Length (with cable glands)
- 5.93 in. [150.5 mm] Length (base plate)
- 2.87 in. [72.9 mm] Width
- 1.72 in. [43.8 mm] Height

WHAT'S INCLUDED

• CyberData 2-Port IP67 802.3bt to 802.3at PoE Gigabit Switch 011539
• User Guide
