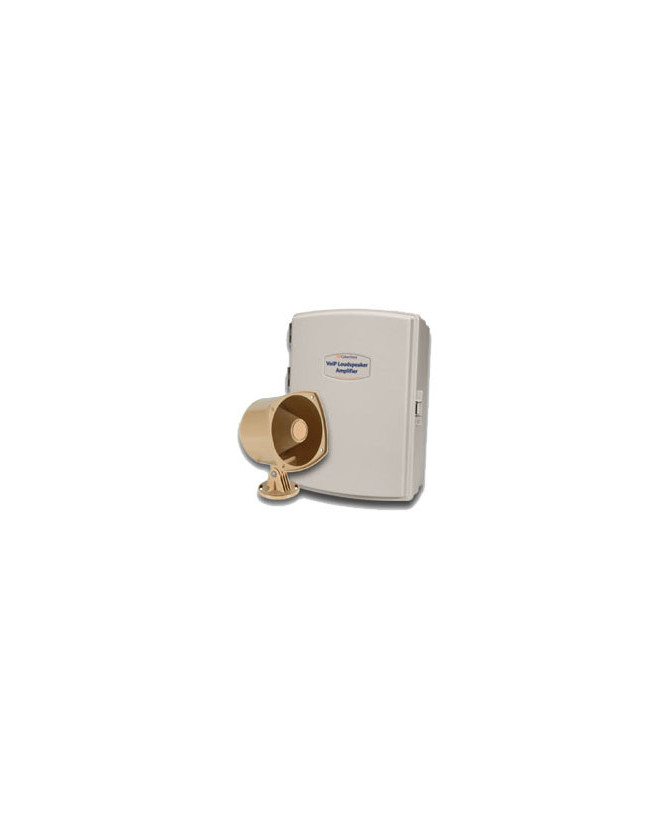

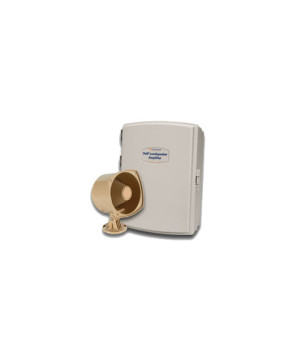

CyberData 011407 Singlewire InformaCast Loudspeaker Amplifier-PoE
The CyberData 011407 is a Singlewire InformaCast loudspeaker amplifier that integrates well on your paging system with your VoIP phone system. It runs on Singlewire's paging and emergency notification software InformaCast or InformaCast CK. It also has dual registration for both Singlewire and SIP. This PoE-powered amplifier powers two 8-ohm loudspeakers that and enhances your public address system by making it directly and simply manageable via a web-based interface. It provides up to nine page messages for automatic broadcasts. It also supports SIP RFC 3261, and can also act as a Multicast group member. In addition, the CyberData 011407 uses the efficient G.711 and G.722 audio codecs to produce clear broadcasts.
The CyberData 011407 is a Singlewire InformaCast loudspeaker amplifier that integrates well on your paging system with your VoIP phone system. It runs on Singlewire's paging and emergency notification software InformaCast or InformaCast CK. It also has dual registration for both Singlewire and SIP. This PoE-powered amplifier powers two 8-ohm loudspeakers that and enhances your public address system by making it directly and simply manageable via a web-based interface. It provides up to nine page messages for automatic broadcasts. It also supports SIP RFC 3261, and can also act as a Multicast group member. In addition, the CyberData 011407 uses the efficient G.711 and G.722 audio codecs to produce clear broadcasts.
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTYThis item comes with 24 month manufacturer's warranty.
FEATURES
• Capable of receiving SingleWire Informacast, SIP and Multicast messages
• Plays audio from Multicast
• SIP Enhanced interoperability for hosted environments
• CyberData has maintained one of the most comprehensive list of IP PBX servers certified to work with CyberData
• Support for security code access for SIP paging
• Autoprovisioning via HTTPS
• HTTPS web based configuration
• Support for G.722 codecs
• 802.11q VLAN tagging
• Configurable sense input for use with fault detection or lighted button kit
• Configurable event generation for device health and status monitoring
• Optional direct connect RGB strobe kit connection
• 9 user-uploadable page messages
• SIP and Simultaneous Multicast
• Dual-speed ethernet 10/100 Mbps
• Web-based configuration
• PoE 802.3at and 802.3af-enabled
• Line-in for background music
• Line-out connector
• DTMF controlled relay
• Direct 8 Ohm speaker drive
• User-uploadable tones and messages
• Digital and manual volume control
• Second SIP endpoint "Night Ringer"
• Autoprovisioning
• Auto-call voice message from input port sense Can support two horns (Mini Horn Loudspeaker must be purchased separately.)
• HTTP Command Interface
• 10 channel prioritized Multicast ports
• Built-in diagnostics
• Delayed page support
• Cisco SRST
• Singlewire Informacast compatibility available.
• Includes support for Informacast resiliency.
• Supports both SIP and Singlewire InformaCast
• InformaCast compliant
• InformaCast CK compliant
| Ethernet I/F | 10/100 Mbps |
| Protocol | InformaCast® and/or SIP |
| Power Input | PoE 802.3at or 802.3af |
| Audio Output | 802.3at: 117.9 (+/- 0.2) dBC @1M and 1kHz* (*When used with the optional 011471 horn) 802.3af: 115.1 (+/- 0.2) dBC @1M and 1kHz* (*When used with the optional 011471 horn)) |
| 802.3at | SPL 111.9 dB @ 1 meter |
| Operating Temperature | -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) |
| Humidity | 5-95%, non-condensing |
| Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) |
| Storage Altitude | Up to 15,000 ft. (4573 m) |
| Enclosure | NEMA3/3X (IP55 rated) |
| Input Signal Amplitudes | 2.0 VPP maximum |
| Input Impedance | 10k Ohm |
| Output Signal Amplitudes Output Level Total Harmonic Distortion Output Impedance |
2.0 VPP maximum +2dBm nominal 0.5% maximum 10k ohm |
| Payload Types | G.711 a-law, G.711 a-law, and G.722 |
| Dimensions | 10 in. [254 mm] Length x 4 in. [101.6mm] Width x 14 in. [355.6 mm] Height |
| Boxed Weight | 3.6 lbs. [1.63 kg] |
| Compliance | CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant |
• 1 x CyberData 011407 Singlewire InformaCast Loudspeaker Amplifier-PoE
• User Guide
Do you have a question about this product? Please call 1800 90 90 99.
11407
New
10000 Items
Specific References
- MPN
- 11407
The CyberData 011407 is a Singlewire InformaCast loudspeaker amplifier that integrates well on your paging system with your VoIP phone system. It runs on Singlewire's paging and emergency notification software InformaCast or InformaCast CK. It also has dual registration for both Singlewire and SIP. This PoE-powered amplifier powers two 8-ohm loudspeakers that and enhances your public address system by making it directly and simply manageable via a web-based interface. It provides up to nine page messages for automatic broadcasts. It also supports SIP RFC 3261, and can also act as a Multicast group member. In addition, the CyberData 011407 uses the efficient G.711 and G.722 audio codecs to produce clear broadcasts.
