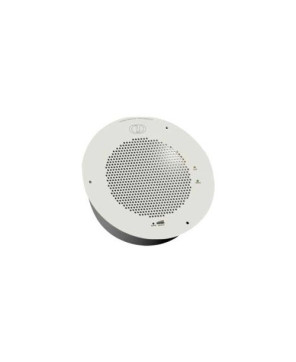

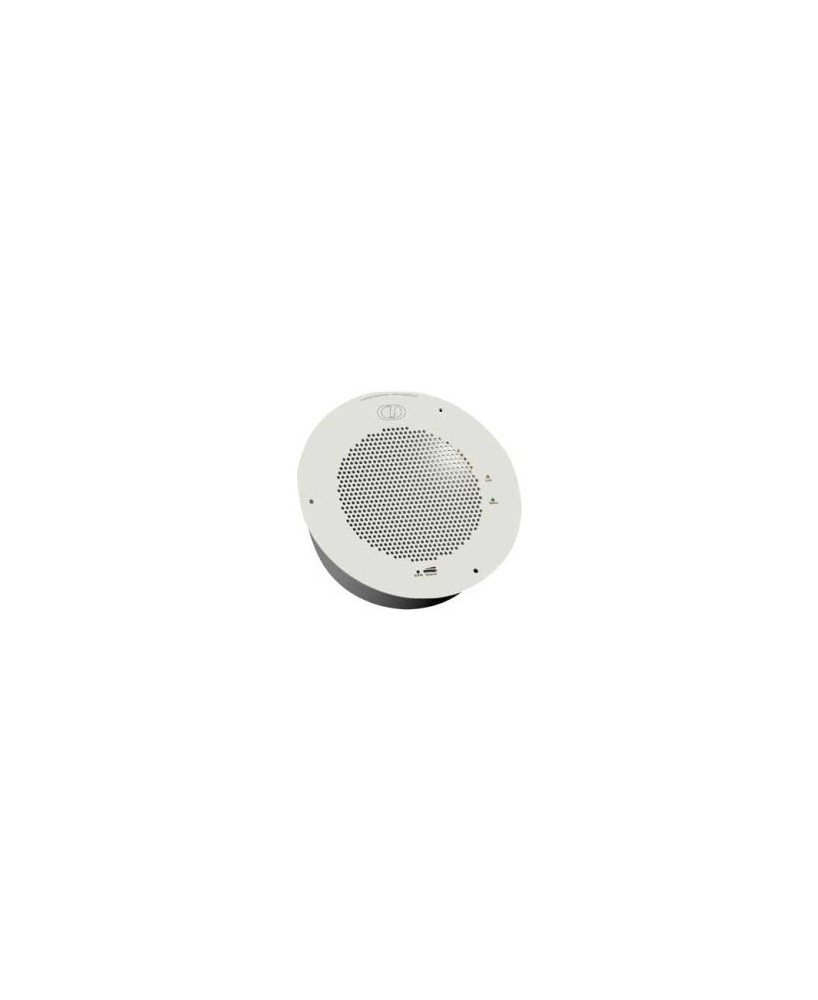

CyberData 011396 Singlewire InformaCast Speaker in Signal White
The CyberData 011396 is a paging or public address singlewire speaker that is used as a paging and emergency notification for software InformaCast or InformaCast CK. It supports Power over Ethernet (PoE 802.3af/802.3at) standard and gives you the option of dual registration for the same speaker for Singlewire and SIP. It provides an efficient narrowband G.711 and wideband G.722 audio codecs that gives you freedom in terms of data usage and audio quality. It is also offers advanced network-enabled controls that includes secure HTTPS auto-provisioning, 802.11q VLAN tagging, and more. You can also manage the speaker simply from a connected workstation, adjusting volume, setting page groups, playing music through network control.
The CyberData 011396 is a paging or public address singlewire speaker that is used as a paging and emergency notification for software InformaCast or InformaCast CK. It supports Power over Ethernet (PoE 802.3af/802.3at) standard and gives you the option of dual registration for the same speaker for Singlewire and SIP. It provides an efficient narrowband G.711 and wideband G.722 audio codecs that gives you freedom in terms of data usage and audio quality. It is also offers advanced network-enabled controls that includes secure HTTPS auto-provisioning, 802.11q VLAN tagging, and more. You can also manage the speaker simply from a connected workstation, adjusting volume, setting page groups, playing music through network control.
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with 24 month manufacturer's warranty.
FEATURES
• Capable of receiving SingleWire Informacast, SIP and Multicast messages
• Support for security code to prevent unwanted SIP calls
• Optional red/green/blue/white strobe kit connection available
• Autoprovisioning via HTTP, HTTPS, or TFTP
• HTTPS or HTTP web based configuration. HTTPS is enabled by default.
• 802.11q VLAN tagging
• Configurable sense input for use with fault detection or with optional lighted button kit
• Configurable event generation for device health and status monitoring
• Support for G.722 codecs
• Powered via PoE (802.3AF or 802.3AT) or 24V auxiliary power supply (not included)
• Enhanced interoperability for hosted environments
• SIP (RFC 3261) compatible
• Night Ringer function
• Plays audio from Multicast
• Web-based configuration
• Paging prioritization and background music
• User upgradeable firmware via web interface or autoprovisioning
• External volume control
• Small footprint
• High efficiency speaker driver
• IGMP l SIP endpoint or Multicast group member Network-adjustable speaker volume
• Can drive one external analog speaker for greater coverage (part "011120/011121 sold separately)
• Optional clock kit available (part "011153/011154 sold separately)
• Support for 10 multicast paging groups
• Support for multiple SIP servers for redundancy
• Support for Cisco SRST resiliency
• Relay for activating door locks, external amplifiers, etc.
• Line-level audio output for connecting to an external amplifier
• Singlewire Informacast compatibility available.
• Includes support for Informacast resiliency.
• Supports both SIP and Singlewire InformaCast
• InformaCast compliant
• InformaCast CK compliant
QUICK SPECIFICATIONS
| Ethernet I/F | 10/100 Mbps |
| Protocol | InformaCast® and/or SIP RFC 3261 Compatible |
| Power Input | PoE 802.3af/802.3at |
| Audio Output | 802.3af- SPL 109.2 dB @ 1 meter |
| 802.3at | SPL 111.9 dB @ 1 meter |
| Operating Range Temperature | -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) |
| Humidity | 5-95%, non-condensing |
| Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) |
| Storage Altitude | Up to 15,000 ft. (4573 m) |
| Payload Types | G.711 a-law, G.711 a-law, G.722 a-law, G.722 a-law |
| Dimensions | 9 in. [228.6 mm] x 2.4 in. [60.96 mm] |
| Boxed Weight | 4.0 lbs. [1.81 kg] |
| Compliance | CE; EMC Directive - Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant |
WHAT'S INCLUDED
• 1 x CyberData 011396 Singlewire InformaCast Speaker in Signal White
• User Guide
