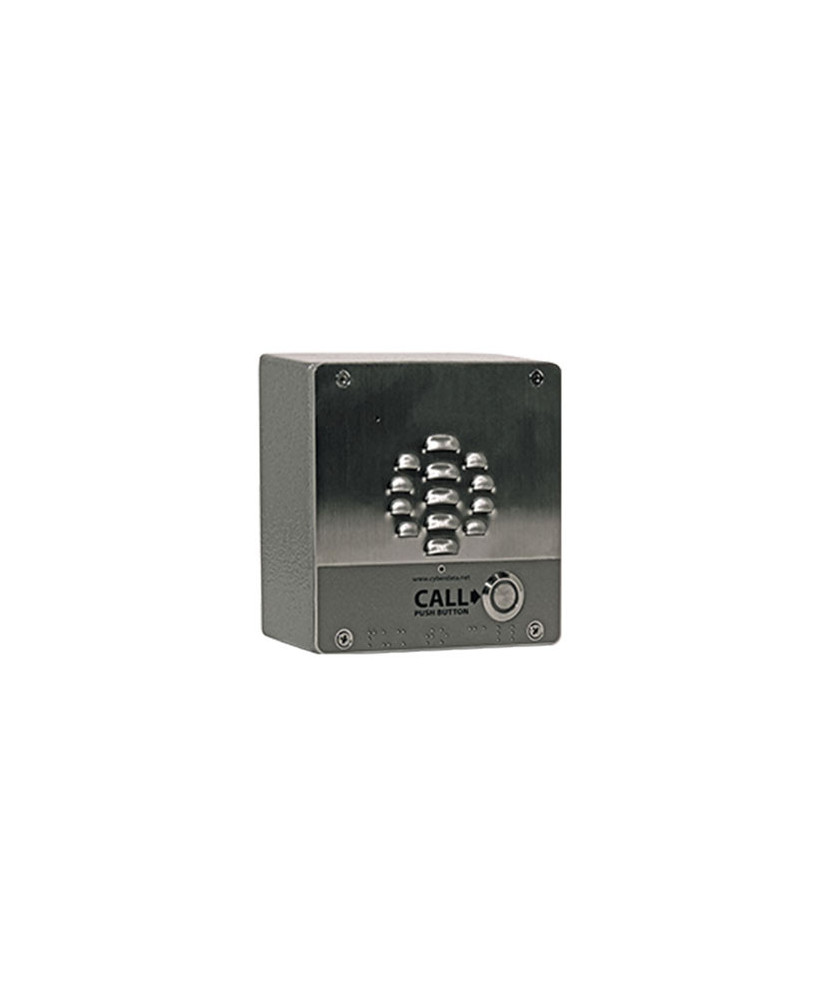

CyberData 011186 V3 SIP-enabled Outdoor Intercom
The CyberData 011186 is a newly designed SIP-enabled VoIP outdoor intercom that is equipped with a faster processor which delivers more capabilities for your two-way communication and secure access. It also has an increased IP rating for weather protection and includes a dry relay contacts for optional auxiliary controls. It can easily connect into existing local area networks with a single cable connection and is compatible with most SIP-based IP PBX servers that comply with RFC 3261. It supports Power over Ethernet (PoE 802.3af) that integrates with existing local area networks (LANs) with a single cable connection. This intercom can also be configured as a night ringer with two SIP extensions with one extension can be assigned to a page group for auto answer paging and the other extension can be assigned to a "First-to-Answer" Night Ring group with IP phones.
The CyberData 011186 is a newly designed SIP-enabled VoIP outdoor intercom that is equipped with a faster processor which delivers more capabilities for your two-way communication and secure access. It also has an increased IP rating for weather protection and includes a dry relay contacts for optional auxiliary controls. It can easily connect into existing local area networks with a single cable connection and is compatible with most SIP-based IP PBX servers that comply with RFC 3261. It supports Power over Ethernet (PoE 802.3af) that integrates with existing local area networks (LANs) with a single cable connection. This intercom can also be configured as a night ringer with two SIP extensions with one extension can be assigned to a page group for auto answer paging and the other extension can be assigned to a "First-to-Answer" Night Ring group with IP phones.
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTYThis item comes with 24 months manufcaturer's warranty.
FEATURES
• SIP or multicast compatible
• Faster V3 Processor for extra performance and capabilities
• Night Ringer function
• Dry contact relay for Door Access Control
• Dual speed 10/100 Mbps
• POE 802.3af
• Network firmware upgradeable
• Network volume adjustable
• Network microphone sensitivity adjust
• Supports SRST (Survivable Remote Site Telephony) in a Ciscos environments
• Power-over-ethernet enabled
• Tamper proof
• IP64 rated all-metal weatherproof case
• Optional Weather Shroud (pictured) for even greater weather protection (Weather Shroud sold separately)
| Protocol | SIP RFC 3261 Compatible |
| Ethernet I/F | 10/100 Mbps |
| Power Input | PoE 802.3af compliant or +8 to +12VDC @ 1000mA Regulated Power Supply |
| Speaker Output | 2 Watts Peak Power |
| Operating Range Temperature | -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) 5-95%, non-condensing Humidity |
| Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) |
| Storage Altitude | -Up to 15,000 ft. (4573 m) |
| Payload Types | G711 A-Law and u-Law, G.722 |
| Dimensions | Length: 5.118 inches [130 mm], Width: 2.252 inches [57.21 mm], Height: 5.118 inches [130 mm] |
| On-Board Relay | 1A at 30 VDC |
| IP Rating | IP65 |
| Weight / Boxed Weight | 2.0 lbs. (0.90 kg) / 3.0 lbs. (1.36 kg) |
| Compliance | CE; EMC Directive - Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant |
• 1 x CyberData 011186 V3 SIP-enabled Outdoor Intercom
• User Guide
