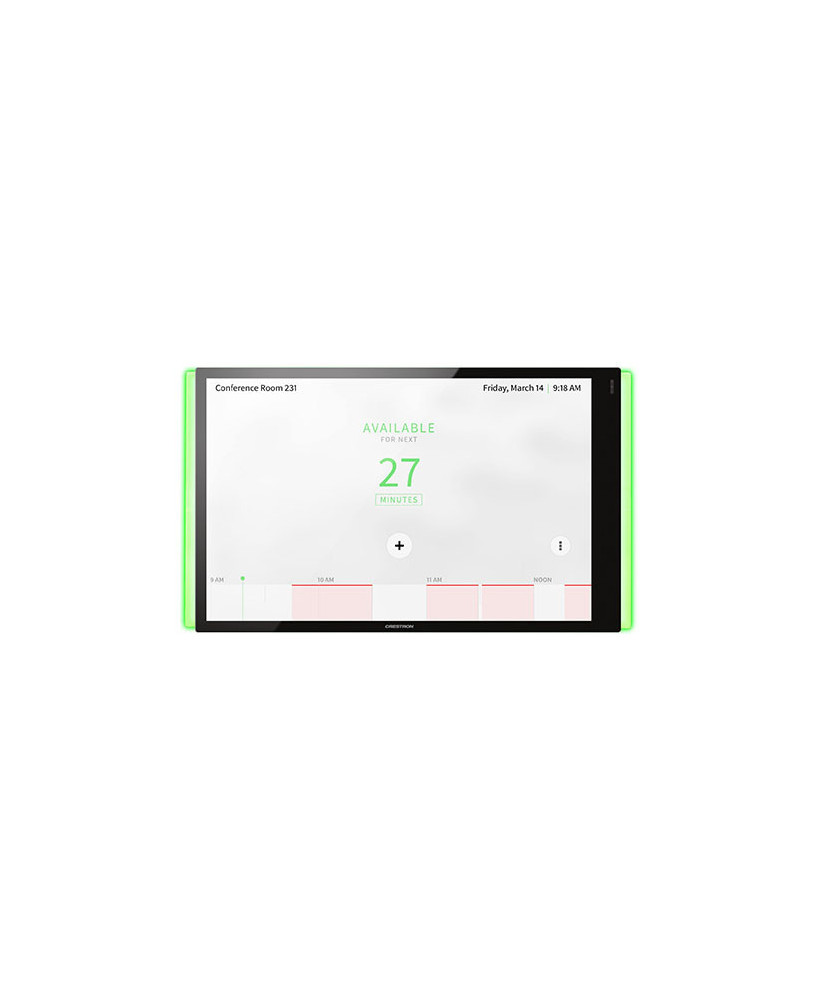

The Crestron TSS-1070-B-S-LBKIT is a stylish and versatile wall mount touch screen designed specifically for enterprise room scheduling applications. Integrates directly with various room scheduling services. Installs quickly and easily, with simple web-based configuration and cloud-based management, and requires no control system or programming. It includes one TSW‑1070‑LB series room availability light bar with the touch screen for a complete room scheduling solution.

CONDITION

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

WARRANTY

This item comes with a 12-month manufacturer's warranty.

FEATURES

• Next generation wall mount touch screen designed specifically for enterprise room scheduling applications
• Delivers a superior and cost-effective alternative to consumer tablet devices
• Integrates directly with various room scheduling services
• 10.1 in. (257 mm) widescreen capacitive touch screen display
• Standard U.S., U.K., and European electrical box installation with additional mounting options available
• Single wire Ethernet connection with PoE or PoE+ power
• Wi‑Fi® network connectivity
• Dual USB 2.0 ports for room availability accessories
• Enterprise grade security and authentication
• Includes one TSW‑1070‑LB series light bar

QUICK SPECIFICATIONS

ROOM SCHEDULING SUPPORT
• Crestron Scheduling App: Crestron Fusion® software, Microsoft Exchange Server® and Office 365® software, Google Calendar™ and G Suite™ software, CollegeNET® 25Live® software, and Ad Astra™ software (IBM® Notes® software is also supported through Crestron Fusion on-premises server only)
• Third-Party Apps: Includes support for various third-party scheduling applications.
LANGUAGES
• Crestron Fusion: Chinese (Simplified), Chinese (Traditional), Danish, Dutch (Netherlands), English (US), English (UK), French, German, Hebrew, Italian, Japanese, Korean, Norwegian, Portuguese (Brazil), Portuguese (Portugal), Russian, Spanish, Swedish
WIRED COMMUNICATIONS
• Ethernet: 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiO Cloud® client, IEEE 802.3at compliant
• USB: USB 2.0 host for light bar or hallway sign
WIRELESS COMMUNICATIONS
• Transceiver: IEEE 802.11a/b/g/n/ac Wi-Fi (2.4 or 5 GHz 2-way RF), static IP or dynamic IP via DHCP
• Security: 64 and 128-bit WEP, WPA and WPA2-PSK with TKIP and AES
• Rang:e Up to 50 ft (15 m), subject to site-specific conditions
• Gateway: Requires an 802.11a/b/g/n/ac wireless access point and Ethernet-enabled Crestron control system
• Bluetooth® Hardware: Crestron Bluetooth beacon
TOUCH SCREEN DISPLAY
• Display Type: TFT active matrix color LCD
• Size: 10.1 in. (257 mm) diagonal
• Aspect Ratio: 16:10 WUXGA
• Resolution: 1920 x 1200 pixels
• Brightness: 400 nits (cd/m²)
• Contrast: 1000:1
• Color Depth: 24 bit, 16.7M colors
• Illumination: Edgelit LED with auto brightness control
• Viewing Angle: ±80° horizontal, ±80° vertical
• Touch Screen: Projected capacitive, 5-point multitouch capable
BUTTONS
• Hard Keys: (6) Virtual buttons in collapsible universal tool bar, per‑button show/hide, preconfigured with icons for Power, Home, Lights, Up, Down, and Microphone
• Reset: (1) Pin hole on rear panel for hardware reset
AUDIO
• Features: Built-in speakers for touch feedback and alerts
CONNECTORS
• LAN PoE: (1) 8-pin RJ45 connector, female, with 2 LED indicators;100Base-TX Ethernet port; PoE+ PD port; Green and yellow LEDs indicate Ethernet port status
• USB: (2) USB Type A connectors, female; USB 2.0 host ports; For optional room scheduling accessories
ENVIRONMENTAL
• Temperature: 32 to 104 °F (0 to 40 °C)
• Humidity: 10% to 95% RH (noncondensing)
• Heat Dissipation: 44 BTU/hr
CONSTRUCTION
• Housing: Plastic, smooth black or white finish, edge-to-edge glass with black or white surround
• Mounting: Surface mount over a 2 or 3 gang US electrical box, 2 gang European (DIN 49073) electrical box, or 2 gang UK (BS 4662) electrical box; Lectern mount over a 2 in. H x 3 3/4 in. W (51 mm H x 96 mm W) cutout; 1-3/8 in. (35 mm) minimum mounting depth; Wall mount, surface mount, and rack options available separately
DIMENSIONS
• Height: 5.87 in. (149 mm)
• Width: 9.46 in. (240 mm)
• Depth: 2.01 in. (51 mm)

WHAT'S INCLUDED

• 1 x TSW-1070-LB, Room Availability Light Bar
• 2 x Screw, M2 x 12 mm, Pan Head, Phillips
• 1 x Light bar, 10 inch, Black
• User Guide
