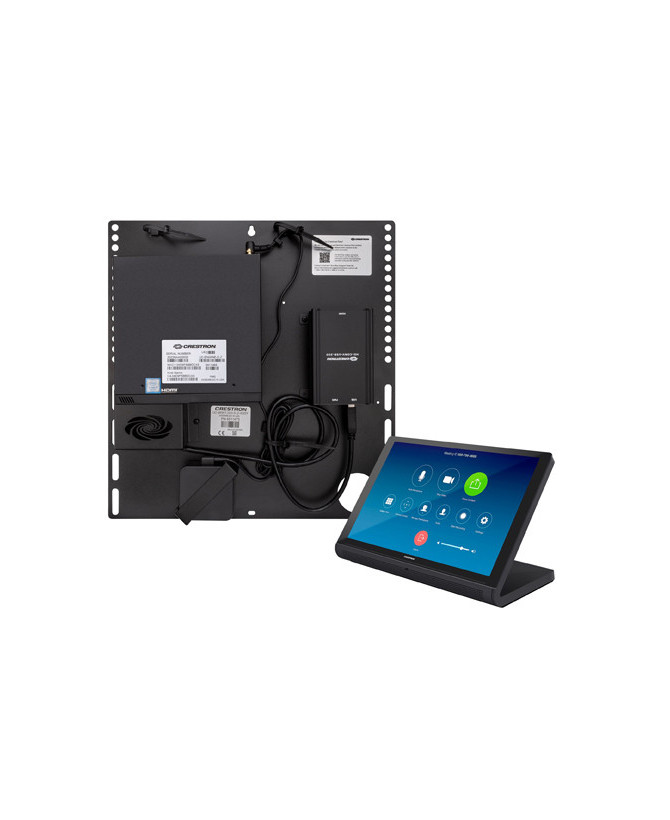

The UC-C100-Z Crestron Flex integrator kit provides a customizable video conference solution for use with Zoom Rooms software. It supports up to three video displays (not included) and features a tabletop touch screen and a UC bracket assembly.

The UC-C100-Z system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.

The UC-C100-Z system provides the essential components needed to design a fully custom video conferencing space using your choice of display devices, cameras, speakers, microphones, and other AV equipment. Any Zoom Rooms software compliant USB camera and USB audio conferencing interface (or speakerphone) may be used.

With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron tabletop touch screen (TS‑1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.

Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 36-month manufacturer's warranty.

• Conferencing integration solution for Zoom Rooms software
• Native Rooms touch screen UI provides a consistent user experience with simple operation and one‑touch meeting joins
• Complete kit contains a 10.1 in. touch screen and UC bracket assembly
• Network management and provisioning and system alerts through the XiO Cloud service
• Premium-level support with Crestron Flex Care (optional)
• Enterprise-grade security - connects and communicates securely over any enterprise or SMB network

• Touch Screen: 10.1 in. (257 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1920 x 1200 pixels
• UI: Zoom Rooms UI plus optional Crestron Smart Graphics room control UI2
• Ethernet : 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory service authentication, HTTPS web browser setup, XiO Cloud client, IEEE 802.3at compliant
• Power over Ethernet :
- IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device);
- Normally requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management;
- With room scheduling and USB enabled, requests 18 W from an 802.3at Type 2 PSE with LLDP;
- Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP;
- Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE

• PoE Injector: A PoE injector is included to power the touch screen if network PoE is not available
• Construction: Plastic, smooth black finish, edge-to-edge glass with black surround
• Dimensions: Height: 5.29 in. (134 mm) | Width: 9.63 in. (245 mm) | Depth: 4.67 in. (119 mm)
• Weight: 2.44 lb (1105 g)

• Crestron Flex C100-Z VC System Integrator Kit, 10.1" Touch Screen
• User Guide
