The UC-MX50-Z Crestron Flex advanced tabletop conferencing system provides a medium room video conference solution for use with Zoom Rooms software. It supports single or dual video displays1 (not included) and features a Crestron Flex tabletop conference device, collaboration camera, UC bracket assembly, power supply, and cables.

The UC‑MX50‑Z system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.

With a large 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (CCS‑UC‑1‑X) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices.

Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The system's built-in content ingest device switches to the connected laptop's UC platform and returns to the native platform when disconnected.

Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 36-month manufacturer's warranty.

• Tabletop video conferencing solution for Zoom Rooms software
• Present, call, conference, and collaborate using your own device's UC conference platform (BYOD) or the native Zoom Rooms platform
• Native Zoom Rooms touch screen UI provides a consistent user experience with simple operation and one‑touch meeting joins
• Complete kit contains the Crestron Flex tabletop conference device, a collaboration camera, UC Bracket Assembly, and power supply — just add display(s) and mount
• Easy to specify and install — no custom design, programming, or software installation required
• Network management and provisioning and system alerts through the XiO Cloud® service
• Premium‑level support with Crestron Flex Care (optional)
• Enterprise‑grade security ‑ connects and communicates securely over any enterprise or SMB network

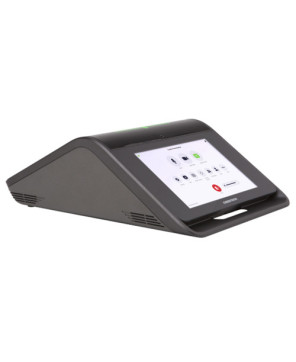

CRESTRON FLEX TABLETOP
• Touch Screen: 7 in. (178 mm) diagonal capacitive multi‑touch TFT active matrix color LCD, 1280 x 800 pixels
• UI: Zoom Rooms UI
• Mic Mute Symbol & Light Bar: (2) Capacitive buttons with bi‑color LEDs, either button toggles between mute and unmute
• AEC: Limes Audio TrueVoice® acoustic echo cancellation, automatic mic mixing, automatic gain control, and dynamic noise reduction; full‑duplex IEEE 1329 Type 1 compliant
• Speaker: Full range speaker, 11 W amplifier power, 95 dB SPL at 0.5 m maximum output, 90 Hz to 22 kHz frequency response
• Microphones: 360° quad mic array, 20 ft (6 m) typical pickup range
• Extension Microphones: Supports two mic pods, model CCS‑UCA‑MIC (sold separately)
• Occupancy Sensor: 6 ft (1.8 m) PIR range in front of touch screen
• Ethernet: 100 Mbps, auto-switching, autonegotiating, autodiscovery, full/half duplex, DHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, IEEE 802.1X, Active Directory authentication, digest access authentication, password login, XiO Cloud service, Microsoft Intune client
• USB: USB 2.0 micro Type B device port, supports UAC for audio interface to UC Engine (model UC-ENGINE-P-Z) (cable included)
• Power: 24 VDC via external 100‑240 VAC, 50/60 Hz power pack, model PW‑2420RU (included) NOTE: The CCS-UC-1-X cannot be powered by Power over Ethernet or PoE+.
• Dimensions: Height: 4.11 in. (104 mm) | Width: 8.92 in. (227 mm) | Depth: 12.74 in. (324 mm)
• Weight: 5.50 lb (2.5 kg)

CAMERA
• Image Sensor: 12 Megapixel 1/2.3 CMOS sensor
• Lens: High precision, ultra wide angle, six element aspherical glass lens
• Field of View: 150° diagonal, 120° horizontal, 90° vertical
• Aperture: f/2.8
• Autozoom: Genius Framing automatic lossless digital zoom intelligently frames around people in the room
• Connectivity: Plug‑and‑play USB 3.1
• Resolution/FPS: HD 1080p @ 30 fps
• Dimensions: Height: 1.40 in. (36 mm); Width: 1.60 in. (41 mm); Depth: 2.82 in. (72 mm)
• Weight: 4.2 oz (120 g)

• Crestron Flex MX70-Z Tabletop 7" Touch Screen
• Huddly IQ Camera
• User Guide
