The Crestron UC-MX50-T-KIT provides a complete video conference room solution for use with the Microsoft Teams Rooms intelligent communications platform. It supports single or dual video displays, and features the Crestron Flex tabletop conference device, a collaboration camera, cables, and power supply.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging

This item comes with a 36-month manufacturer's warranty.

• Tabletop video conferencing solution for the Microsoft Teams® Rooms environment
• Present, call, conference, and collaborate using your own device's UC conference platform (BYOD) or the native Microsoft Teams Rooms platform
• Native Microsoft Teams Rooms touch screen UI provides a consistent user experience with simple operation and one‑touch meeting joins
• Direct connection option between UC Engine and Crestron Flex tabletop conference device for simple installation and configuration
• Easy to specify and install — no custom design, programming, or software installation required
• Network management and provisioning, system alerts, and the pairing of a Crestron Flex tabletop conference device to the UC-MX50-T system’s UC Engine through the XiO Cloud® service
• Premium-level support with Crestron Flex Care (optional)
• Enterprise‑grade security ‑ connects and communicates securely over any enterprise or SMB network

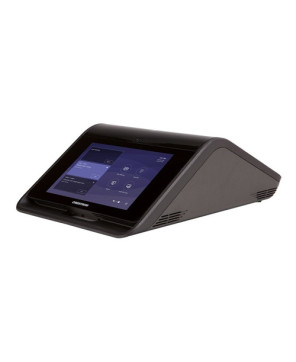

Crestron Flex tabletop conferencing device
• Touch Screen: 7 in. (178 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1280 x 800 pixels
• UI: Microsoft Teams Rooms UI plus optional Crestron room control UI5
• Mic Mute Symbol & Light Bar: (2) Capacitive buttons with bi-color LEDs, either button toggles between mute and unmute
• AEC: Limes Audio TrueVoice® acoustic echo cancellation, automatic mic mixing, automatic gain control, and dynamic noise reduction; full-duplex IEEE 1329 Type 1 compliant
• Speaker: Full range speaker, 11 W amplifier power, 95 dB SPL at 0.5 m maximum output, 90 Hz to 22 kHz frequency response
• Microphones: 360° quad mic array, 20 ft (6 m) typical pickup range
• Occupancy Sensor: 6 ft (1.8 m) PIR range in front of touch screen
• Ethernet: 100 Mbps; enterprise grade security and management including IEEE 802.1X, Active Directory® authentication, LDAP, Kerberos, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, digest access authentication, password login, HTTPS secure provisioning, XiO Cloud service
• USB: USB 2.0 micro Type B device port, supports UAC for audio interface to UC Engine (model UC-ENGINEP-T) (cable included)
• Power: 24 VDC via external 100-240 VAC, 50/60 Hz power pack, model PW-2420RU (included)
• Dimensions: Height: 4.11 in. (104 mm)),Width: 8.92 in. (227 mm), Depth: 12.74 in. (324 mm)
• Weight: 5.50 lb (2.5 kg)

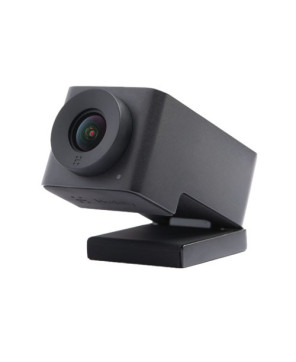

Camera
• Image Sensor: 12 Megapixel 1/2.3 CMOS sensor
• Lens: High precision, ultra wide angle, six element aspherical glass lens
• Field of View: 150° diagonal, 120° horizontal, 90° vertical
• Aperture: f/2.8
• Autozoom: Genius Framing automatic lossless digital zoom intelligently frames around people in the room
• Connectivity: Plug-and-play USB 3.1
• Resolution/FPS: HD 1080p @ 30 fps
• Dimensions: Height: 1.40 in. (36 mm), Width: 1.60 in. (41 mm), Depth: 2.82 in. (72 mm)
• Weight: 4.2 oz (120 g)

• 1x Crestron Flex UC-MX50-T Tabletop 7" Touch Screen
• Collaboration camera
• User Guide
