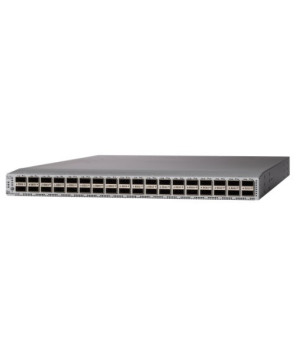

Cisco Nexus 9336C-FX2 36-Ports Managed Switch with QSFP-40 Transceiver N9K-C9336C-FX2-B2
The Cisco Nexus 9336C-FX2 Switch N9K-C9336C-FX2-B2 supports cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services with wire-rate security and telemetry.
Overseas orders are NOT AVAILABLE.
The Cisco Nexus 9336C-FX2 Switch N9K-C9336C-FX2-B2 provides investment protection for customers, delivering large buffers, highly flexible Layer 3 scalability, and performance to meet the changing needs of virtualized data centres and automated cloud environments. It is built on modern system architecture designed to provide high performance and meet the evolving needs of highly scalable data centres and growing enterprises.
You may also check all the networking switch models, we have at The Telecomshop.
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with a 12-month manufacturer's warranty.
FEATURES
• Spanning Tree Protocol (STP) support
• Multiple Spanning Tree Protocol (MSTP) support
• Access Control List (ACL) support
• Port exhaust
• Virtual PortChannel (vPC) technology
• MACsec support
• Virtual Extensible LAN (VXLAN)
• Source-Specific Multicast (SSM)
• Ethernet Virtual Private Network (EVPN)
• 40MB system buffer
• 3 fan trays
• Power On Auto Provisioning (POAP)
QUICK SPECIFICATIONS
• Product Description: Cisco Nexus 9336C-FX2 - switch - 36 ports - Managed - rack-mountable - with QSFP-40/100-SRBD Transceiver
• Device Type: Switch - 36 ports - L3 - Managed - with QSFP-40/100-SRBD Transceiver
• Enclosure Type: Front and side to back rack-mountable 1U
• Ports: 36 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28
• Performance: Bandwidth: 7.2 Tbps ? Bandwidth: 2.8 bpps
• Capacity: Multiple Spanning Tree Protocol instances: 64 ? HSRP groups: 490 ? ACL entries (ingress): 5000 ? Maximum number of links in a port channel: 32 ? Maximum number of port channels: 512 ? ECMP paths: 64 ? Virtual Routing and Forwarding (VRF) instances: 16000 ? VLANs supported: 3967 ? ACL entries (egress): 2000 ? IGMP snooping groups: 32000 ? Multicast routes: 32000 ? NAT entries: 1023
• Routing Protocol: OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS
• Power: AC 120/230 V (50/60 Hz)
• Power Redundancy: Optional
• Dimensions (WxDxH): 43.9 cm x 62.3 cm x 4.4 cm
• Weight: 8.5 kg
WHAT'S INCLUDED
• Cisco Nexus 9336C-FX2 36-Ports Managed Switch with QSFP-40 Transceiver N9K-C9336C-FX2-B2
• User Guide
Do you have a question about this product? Please call 1800 90 90 99.
N9K-C9336C-FX2-B2
New
10000 Items
Specific References
- MPN
- N9K-C9336C-FX2-B2
The Cisco Nexus 9336C-FX2 Switch N9K-C9336C-FX2-B2 supports cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services with wire-rate security and telemetry.
Overseas orders are NOT AVAILABLE.
