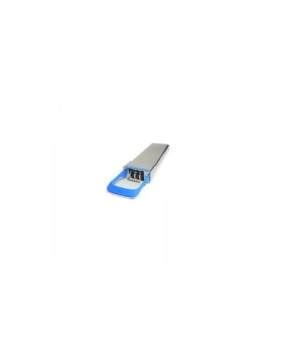

The Cisco CPAK-100G-LR4 Module is IEEE 802.3ba compliant and supports link lengths of up to 10 km over standard single-mode fibre (SMF, G.652). It delivers an aggregate data signal of 100 gigabits per second, carried over four LAN wavelength-division multiplexing (WDM) wavelengths operating at a nominal 25 Gbps per lane. Optical multiplexing and demultiplexing of the four wavelengths are managed within the module. Its primary application is to support high-bandwidth 100 Gbps optical links over standard single-mode fibre terminated with SC connectors. Nominal power consumption is less than 5.5 W.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with 3month manufacturer's warranty.

• Product Description: Cisco - CPAK transceiver module - 100 Gigabit Ethernet
• Device Type: CPAK transceiver module - SC/PC single-mode
• Form Factor: Plug-in module
• Cabling Type: 100GBase-LR4
• Data Transfer Rate: 100 Gbps
• Optical Wave Length: 1310 nm
• Data Link Protocol: 100 Gigabit Ethernet
• Max Transfer Distance: 10 km
• Dimensions (WxDxH): 3.48 cm x 10.12 cm x 1.16 cm
• Weight: 127 g
• Compatibility: Cisco CRS LAN/OTN Flexible Interface Module, CRS-X LAN/OTN ¦ Cisco ASR 9000 Series Ethernet Modular Port Adapter, Packet Transport Optimized Line Card, Service Edge Optimized Line Card ¦ Cisco Network Convergence System 4000 Series CP-DQPSK - Full C Band Tunable Line Card, 4000 Series Optical Transport Network Line Card, 4000 Series Optical Transport Network/Packet Line Card ¦ Cisco Nexus 7000 F3-Series 6-Port 100 Gigabit Ethernet Module, 7700 F3-Series 12-Port 100 Gigabit Ethernet Module, X9408PC

• Cisco CPAK Transceiver Module CPAK-100G-LR4
• User Guide
