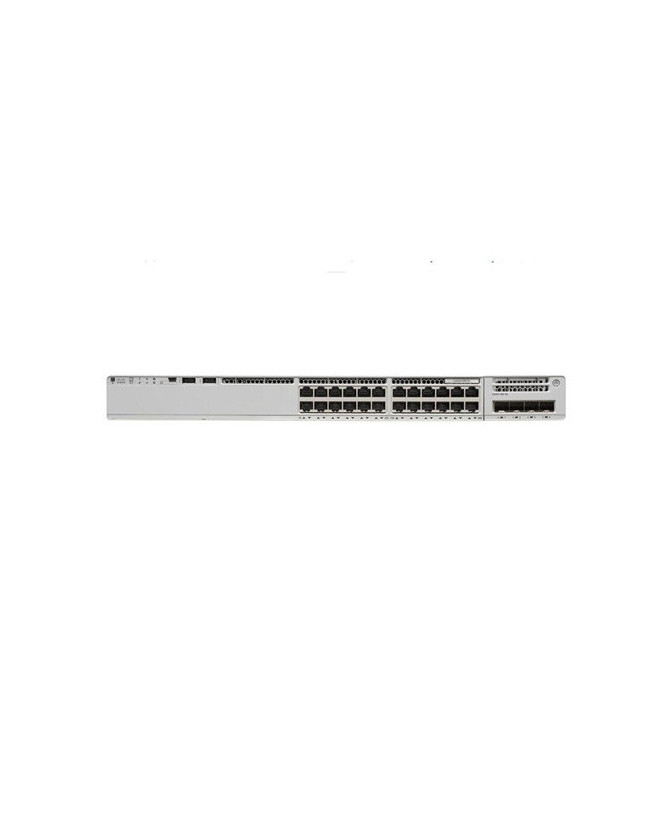

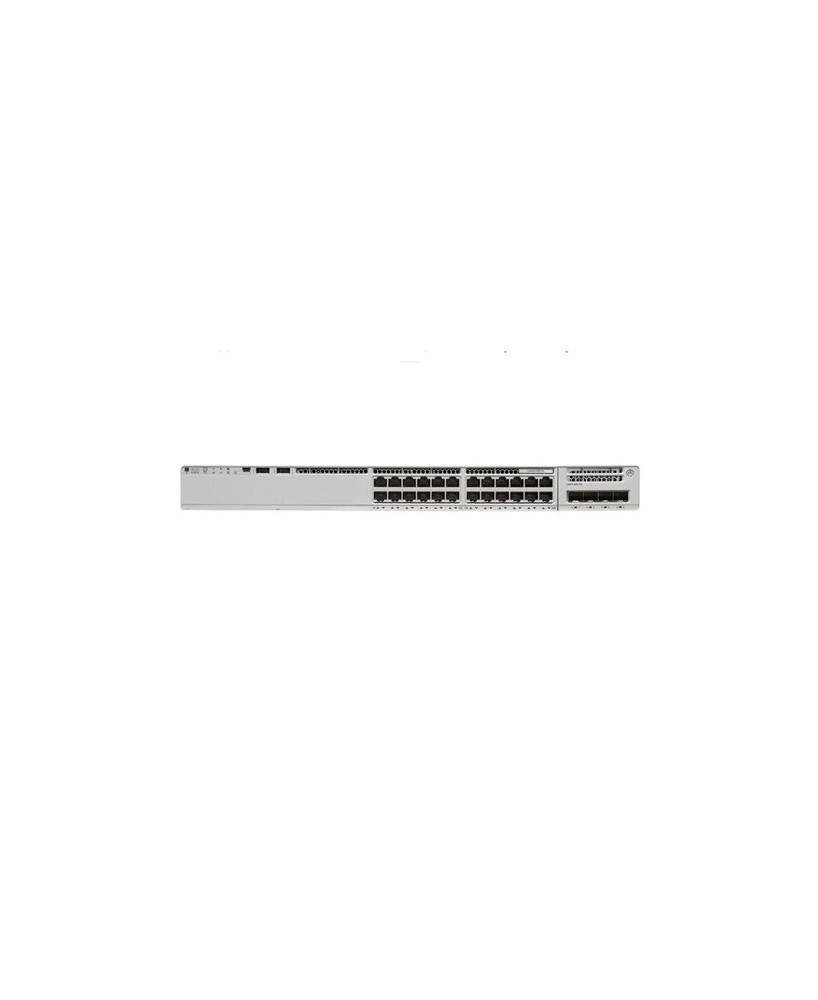

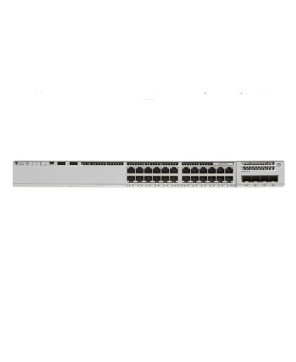

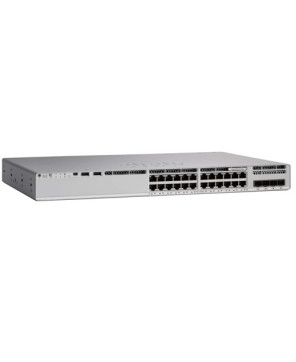

The Cisco Catalyst 9200L C9200L-24T-4G-A is a Layer 3 rack-mountable switch that provides 24-Port Gigabit Ethernet and 4-Port Gigabit uplink with Cisco Network Advantage Software. The Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always-on and IT simplified.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a limited lifetime warranty.

• Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
• Flexible downlink options with data
• Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
• UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
• Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
• Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
• Advanced network monitoring using Full Flexible NetFlow
• Cisco Software-Defined Access (SD-Access)
• Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
• Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
• ASIC with programmable pipeline and micro-engine capabilities, along with a template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries

• Device Type: Switch - 24 ports - L3 - stackable
• Enclosure Type: Rack-mountable
• Subtype: Gigabit Ethernet
• Ports: 24 x 10/100/1000 + 4 x Gigabit (uplink)
• Uplink configuration: 4x 1G fixed uplinks
• Default primary AC power supply: PWR-C5-125WAC
• Fans: Fixed redundant
• Software: Network Advantage
• Stacking bandwidth: 80 Gbps
• DRAM: 2 GB
• Flash: 4 GB
• Switching capacity: 56 Gbps
• Forwarding rate: 83.33 Mpps
• Dimensions (WxDxH): 44.5 cm x 4.4 cm x 28.8 cm
• Weight: 4.35 kg

• Cisco Catalyst 9200L 24-Port Data + 4-Port Gigabit uplink Switch Network Advantage C9200L-24T-4G-A
• User Guide
