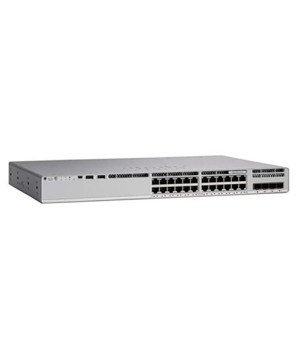

The Cisco Catalyst 9200 C9200-24T-A is a 24-port Data Switch, with Network Advantage software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always-on, and IT simplified.

You may also check all the Cisco networking switch models we have at The Telecomshop.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a manufacturer's warranty.

• 24 ports of full Power over Ethernet Plus (PoE+) capability
• Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
• Flexible downlink options with data or PoE+
• Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
• UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
• Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
• Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
• Advanced network monitoring using Full Flexible NetFlow
• Cisco Software-Defined Access (SD-Access):
- Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity
Services Engine (ISE)
- Network assurance and improved resolution time through Cisco DNA Center
• Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
• Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for modeldriven programmability and streaming telemetry
• ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries

• Fans: FRU redundant
• Software: Network Advantage
• Chassis Dimensions: 1.73 x 17.5 x 13.8 in/4.4 x 44.5 x 35.0 cm
• Weight: 5.0 Kg
• Virtual Networks: 4
• Stacking bandwidth: 160 Gbps
• Total number of MAC addresses: 32,000
• Total number of IPv4 routes (ARP plus learned routes): 14,000 (10,000 direct routes and 4,000 indirect routes)
• IPv4 routing entries: 4,000
• IPv6 routing entries: 2,000
• Multicast routing scale: 1,000
• QoS scale entries: 1,000
• ACL scale entries: 1,600
• Packet buffer per SKU: 6 MB buffers
• Flexible NetFlow (FNF) entries: 16,000 flows
• DRAM: 4 GB
• Flash: 4 GB
• VLAN IDs: 4096
• Total Switched Virtual Interfaces (SVIs): 1000
• Jumbo frames: 9198 bytes
• Wireless bandwidth per switch: Up to 48 Gbps
• Switching capacity: 128 Gbps
• Forwarding rate: 190.4 Mpps
• Mean time between failures (hours): 587,800

• Cisco Catalyst 9200 24-port Data Network Advantage Switch C9200-24T-A
• Power Cable
• User Guide

Do you have a question about this product? Please call 1800 90 90 99.
