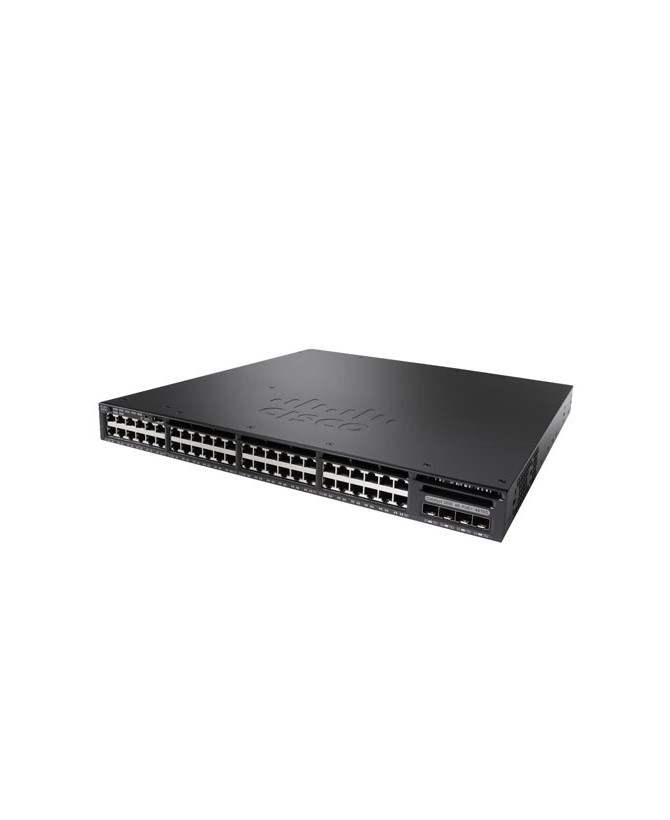

The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with Limited-lifetime manufacturer's warranty.

• Full duplex capability
• layer 2 switching
• DHCP support
• auto-negotiation
• ARP support
• trunking
• VLAN support
• auto-uplink (auto MDI/MDI-X)
• IGMP snooping
• Syslog support
• IPv6 support
• Spanning Tree Protocol (STP) support
• Rapid Spanning Tree Protocol (RSTP) support
• Multiple Spanning Tree Protocol (MSTP) support
• DHCP snooping
• Dynamic Trunking Protocol (DTP) support
• Port Aggregation Protocol (PAgP) support
• Trivial File Transfer Protocol (TFTP) support
• Access Control List (ACL) support
• Quality of Service (QoS)
• RADIUS support
• MLD snooping, Dynamic ARP Inspection (DAI)
• Unicast Reverse Path Forwarding (URPF)
• Uni-Directional Link Detection (UDLD)
• Rapid Per-VLAN Spanning Tree Plus (PVRST+)
• Shaped Round Robin (SRR) • LLDP support

• Link Aggregation Control Protocol (LACP)
• MAC Address Notification
• Remote Switch Port Analyzer (RSPAN)
• Hot Standby Router Protocol (HSRP) support
• Energy Efficient Ethernet, Strict Priority Queuing (SPQ)
• Class of Service (CoS)
• DiffServ Code Point (DSCP) support

• Device Type: Switch - 48 ports - L3 - Managed - stackable
• Enclosure Type: Rack-mountable 1U
• Subtype: Gigabit Ethernet
• Ports: 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
• Power Over Ethernet (PoE): PoE+
• PoE Budget: 775 W
• Performance: Switching capacity: 176 Gbps ? Forwarding performance: 130.95 Mpps
• Capacity: IPv4 routes: 24000 ? NetFlow entries: 48000 ? Virtual interfaces (VLANs): 4094 ? Switched virtual interfaces (SVIs): 1000
• MAC Address Table Size: 32000 entries
• Jumbo Frame Support: 9198 bytes
• Routing Protocol: OSPF, RIP-1, EIGRP, static IP routing, RIPng
• Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
• Power: AC 120/230 V (50/60 Hz)
• Power Redundancy: Optional
• Dimensions (WxDxH): 44.5 cm x 48.6 cm x 4.4 cm
• Weight: 7.8 kg

• Cisco Catalyst 3650 48 Port Mini 4X10 Gigabit Uplink Switch With Cisco IOS IP Base Software WS-C3650-48FQM-S
• Rack Mounting kit
• User guide
