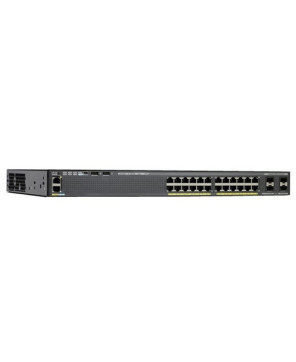

Cisco Catalyst 2960-X 24 GigE Switch 4 x 1G SFP, LAN Base WS-C2960X-24TS-L
The Cisco Catalyst WS-C2960X-24TS-L Switch is a 24-Port Managed Switch with 24 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 that you can connect a mixture of Ethernet-enabled devices such as access points, hubs, computers, or a larger network and to the Internet. The Cisco Catalyst WS-C2960X-24TS-L Switch is equipped with 24 x Ports (24 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 , 1 x console console - RJ-45 , 1 x mini-USB console - mini-USB Type B - management , 1 x USB Type A , 1 x 1000Base-TX 10Base-T/100Base-TX - RJ-45 - management , 4 x SFP (mini-GBIC) - SFP uplink ) providing a fast, reliable, and secure network connection. Forwarding performance of 216 Gbps and Forwarding rate (64 Byte Packet) 71.4 mpps which assures users benefit from increased bandwidth and move packets through the switch faster and more efficiently.
The Cisco Catalyst WS-C2960X-24TS-L Switch is a 24-Port Managed Switch with 24 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 that you can connect a mixture of Ethernet-enabled devices such as access points, hubs, computers, or a larger network and to the Internet.
The Cisco Catalyst WS-C2960X-24TS-L Switch is equipped with 24 x Ports (24 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 , 1 x console console - RJ-45 , 1 x mini-USB console - mini-USB Type B - management , 1 x USB Type A , 1 x 1000Base-TX 10Base-T/100Base-TX - RJ-45 - management , 4 x SFP (mini-GBIC) - SFP uplink ) providing a fast, reliable, and secure network connection. Forwarding performance of 216 Gbps and Forwarding rate (64 Byte Packet) 71.4 mpps which assures users benefit from increased bandwidth and move packets through the switch faster and more efficiently.
In addition, it features Layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), NetFlow, Hot Standby Router Protocol (HSRP) support, and Energy Efficient Ethernet.
Note: 3-4 weeks ETA
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTYThis item comes with a Cisco Enhanced Limited Lifetime Hardware Warranty
FEATURES
• 24 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45
• 1 x 1000Base-TX 10Base-T/100Base-TX - RJ-45 - management
• 1 x mini-USB console - mini-USB Type B - management
• 4 x SFP (mini-GBIC) - SFP uplink
• Switching capacity: 216 Gbps and Forwarding performance (64-byte packet size): 71.4 Mpps
• Features VLAN support, DHCP support, Dynamic Trunking Protocol (DTP) support, VLAN support
| QUICK SPECIFICATIONS |
|---|
| Device Type | Switch - 24 ports - Managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 4 x Gigabit SFP |
| Performance | Switching capacity: 216 Gbps and Forwarding performance (64-byte packet size): 71.4 Mpps |
| Capacity | Virtual interfaces (VLANs): 1023 |
| Jumbo Frame Support | 9216 bytes |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
| Features | Layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1ae, IEEE 802.3az, IEEE 802.1AX |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 44.5 cm x 27.9 cm x 4.5 cm |
| Weight | 4 kg |
| Interfaces |
24 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x console console - RJ-45 1 x mini-USB console - mini-USB Type B management 1 x USB Type A 1 x 1000Base-TX 10Base-T/100Base-TX - RJ-45 management 4 x SFP (mini-GBIC) - SFP uplink |
| MTBF | 564,910 hours |
| Dimensions | 27.9 cm x 44.5 cm x 4.5 cm |
• Cisco Catalyst 2960-X 24 GigE, 4 x 1G SFP, LAN Base WS-C2960X-24TS-L
• Quick Start Guide
