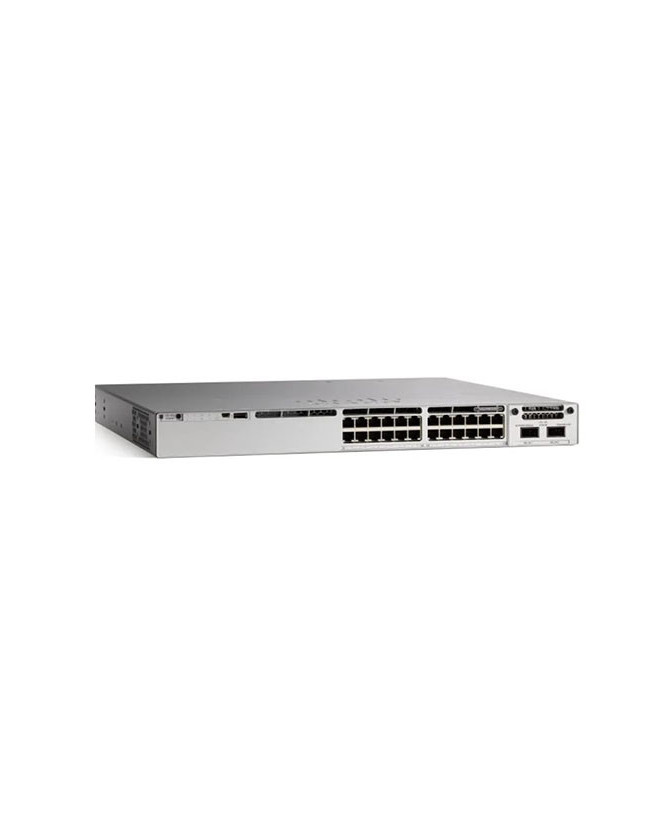

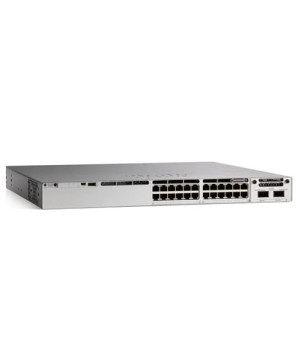

The Cisco C9300-24UX-E is a 24-port, Cisco 9300-series Multigigabit Ethernet and UPOE Network Essentials Switch. Catalyst 9300 Series is the next generation of the industry’s most widely deployed switching platform. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. With an x86 CPU architecture and more memory, these switches are also ready for the future, allowing them to host containers and natively run third-party applications and scripts within the switch.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 12-month manufacturer's warranty.

• Highest wireless scale for Wi-Fi 6 and 802.11ac Wave 2 access points supported on a single switch with select models
• Cisco UADP 2.0 Application-Specific Integrated Circuit (ASIC) with programmable pipeline and micro engine capabilities, along with the template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries
• x86 CPU complex with 8-GB memory, and 16 GB of flash and external USB 3.0 SSD pluggable storage slot (delivering 120GB of storage with an option SSD drive) to host containers
• USB 2.0 slot to load system images and set configurations
• Up to 480 Gbps of local stackable switching bandwidth
• Flexible and dense uplink offerings with 1G, Multigigabit, 10G, 25G, and 40G in the form of fixed or modular uplinks
• Easy transition from 10G to 25G with dual-rate optics
• Flexible downlink options with 1G Copper and Fiber as well as Multigigabit links
• Leading PoE capabilities with up to 384 ports of PoE per stack, 60W Cisco UPOE, and PoE+
• Intelligent Power Management with Cisco StackPower technology, providing power stacking among members for power redundancy
• Line-rate, hardware-based Flexible NetFlow (FNF), delivering flow collection of up to 64,000 flows
• IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
• Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration
• IEEE 802.1ba AV Bridging (AVB) built in to provide a better audio and video experience through improved time synchronization and QoS
• Precision Time Protocol (PTP; IEEE 1588v2) provides accurate clock synchronization with sub-microsecond accuracy making it suitable for distribution and synchronization of time and frequency over network

• Total 10/100/1000 or Multigigabit copper ports: 24 Multigigabit Cisco UPOE(100 Mbps or 1, 2.5, 5, or 10 Gbps)
• Default AC power supply: 1100W AC
• Available PoE power: 490W
• Switching capacity: 640 Gbps on 24-port Multigigabit Ethernet model
• Default power supply: PWR-C1-1100WAC
• Stacking bandwidth: 480 Gbps
• IPv4 routing entries: 32000
• IPv6 routing table entries: 16000
• DRAM: 8GB
• VLAN IDs: 4000
• Wireless bandwidth per switch: Up to 48 Gbps on 24-port Gigabit Ethernet model

WHAT'S INCLUDED

• 1 x Cisco Catalyst 9300 24-port mGig & UPOE Network Advantage Switch C9300-24UX-E
• User Guide
