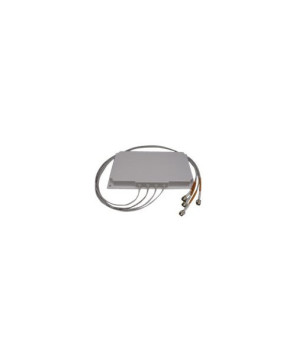

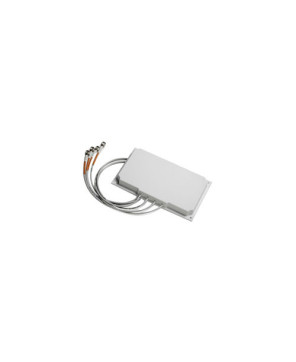

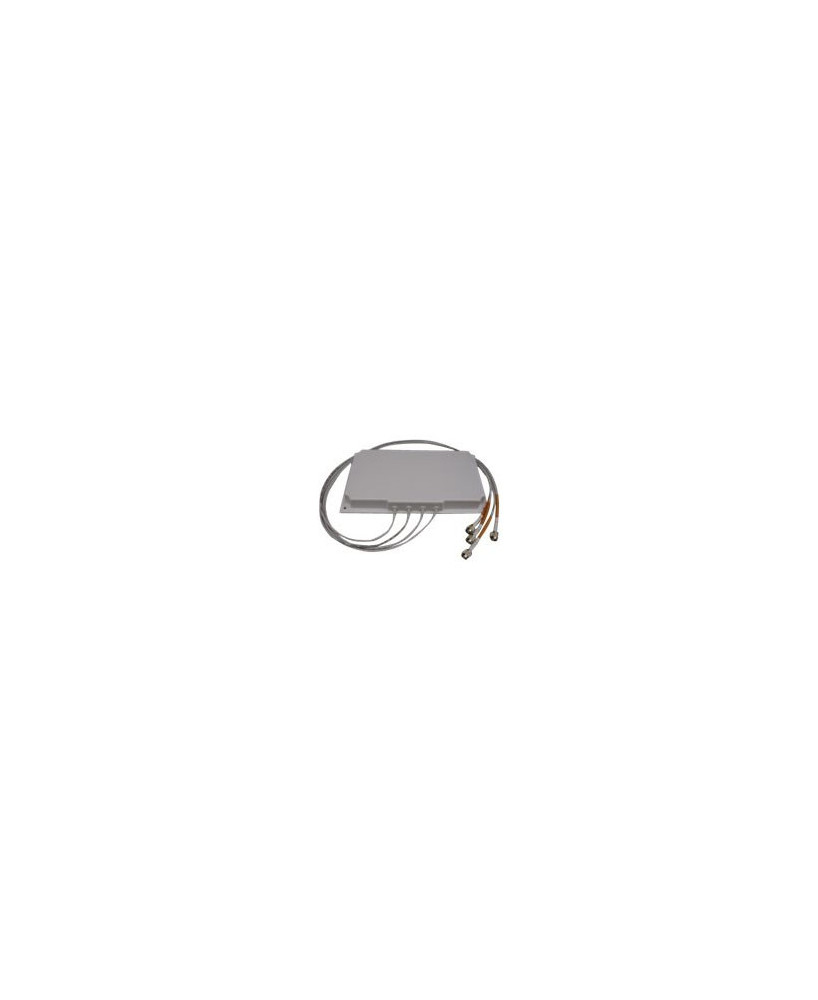

The Cisco Aironet AIR-ANT2566P4W-RS= operates in the 2.4 GHz and 5 GHz frequency ranges and is designed for indoor and outdoor use. The AIR-ANT2566P4W-RS= antenna includes circuitry to enable self-identification of the antenna by the Cisco Catalyst 91xx Series access points. The antenna has three cables with orange labels and one cable with a purple label. The self-identifying function is indicated by the purple label on this cable. Ensure that this antenna cable is connected to Port A on the AP, which is also designated by purple text around the RP-TNC connector. The AIR-ANT2566P4W-RS= antenna has a built-in EEPROM that can be read by the AP to automatically configure the antenna type and gain in the wireless controller.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with 12-month manufacturer's warranty.

• MIMO technology, IP54 protection
• Compatible with Cisco Catalyst 9120AXE, 9120AXP

• Product Type: Antenna
• Antenna Placing / Mounting: Outdoor, indoor
• Frequency Range: 5.150 - 5.850 GHz, 2.4 - 2.484 GHz
• Gain: 6 dBi (for 2.4 GHz), 6 dBi (for 5 GHz)
• Directivity: Directional
• Voltage Standing Wave Ratio (VSWR): 2:1
• Horizontal Beamwidth: 105° (at 2.4 GHz), 110° (at 5 GHz)
• Vertical Beamwidth: 65° (at 2.4 GHz), 55° (at 5 GHz)
• Connector Provided: 4 x RP-TNC

• Cisco Aironet 2.4-GHz/5-GHz Self-Identifying MIMO 4-Element Patch Antenna AIR-ANT2566P4W-RS=
