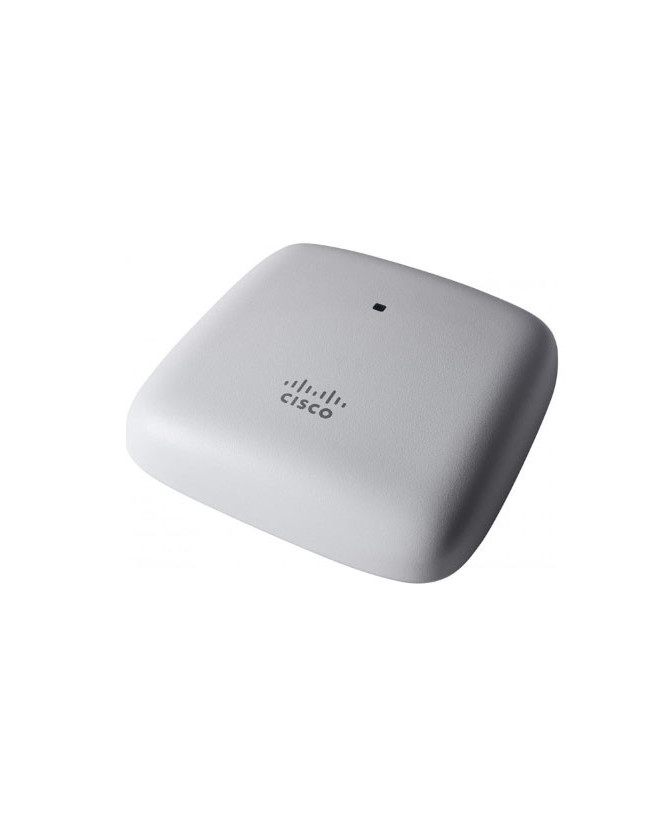

The Cisco 5-CBW140AC-Z 2x2 Acces Point Ceiling Mount delivers advanced wireless performance with support for the Wi-Fi standard, IEEE's 802.11ac Wave 2. It also meets the growing flexibility requirements of wireless networks by introducing mesh technology - all while delivering a simple user experience. The 140AC access point extends coverage and capacity to Wi-Fi clients such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.

You may also check all the Cisco Access Point models we have at The Telecomshop.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with Cisco Small Business Product Limited Hardware Warranty

• Multi-User (MU) Multiple-Input Multiple-Output (MU-MIMO) technology allows transmission of data to multiple 802.11ac Wave 2–capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as Single-User MIMO (SU‑MIMO).
• Deploy and configure multiple Cisco Business access points and mesh extenders easily without a physical controller, using Cisco Business Mobile app . Optional multisite remote management is available through the Cisco FindIT Network Management.
• Mix and match Cisco Business mesh extenders or access points to increase WiFi coverage throughout your business.
• Flexible deployment models supporting multiple concurrent use cases required by small businesses, including point of sale systems, surveillance cameras, guest access, and more.

Authentication and security:

• Wi-Fi Protected Access 2 (WPA2) WPA3 is coming in a post–Frame Check Sequence (FCS) release
• 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)
• Segmentation via VLANs (up to 16)
• 02.11r and 802.11i
• Guest network can also authenticate against: Google and Facebook

Maximum clients:

• Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system

Maximum # of Access Points:

• 50
• Recommended up to 25

Max # of Mesh Extenders:

• Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops

802.11ac:

• 2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps in 5GHz
• 20-, 40-, and 80-MHz channels
• Dynamic Frequency Selection (DFS)

Ethernet ports:

• Authentication with 802.1X or MAC filtered
• Dynamic VLAN or per port
• Traffic locally switched or tunneled back to Master AP

• Cisco 5-CBW140AC-Z 2x2 Wave 2 Access Point Ceiling Mount - 5p
• User Guide
