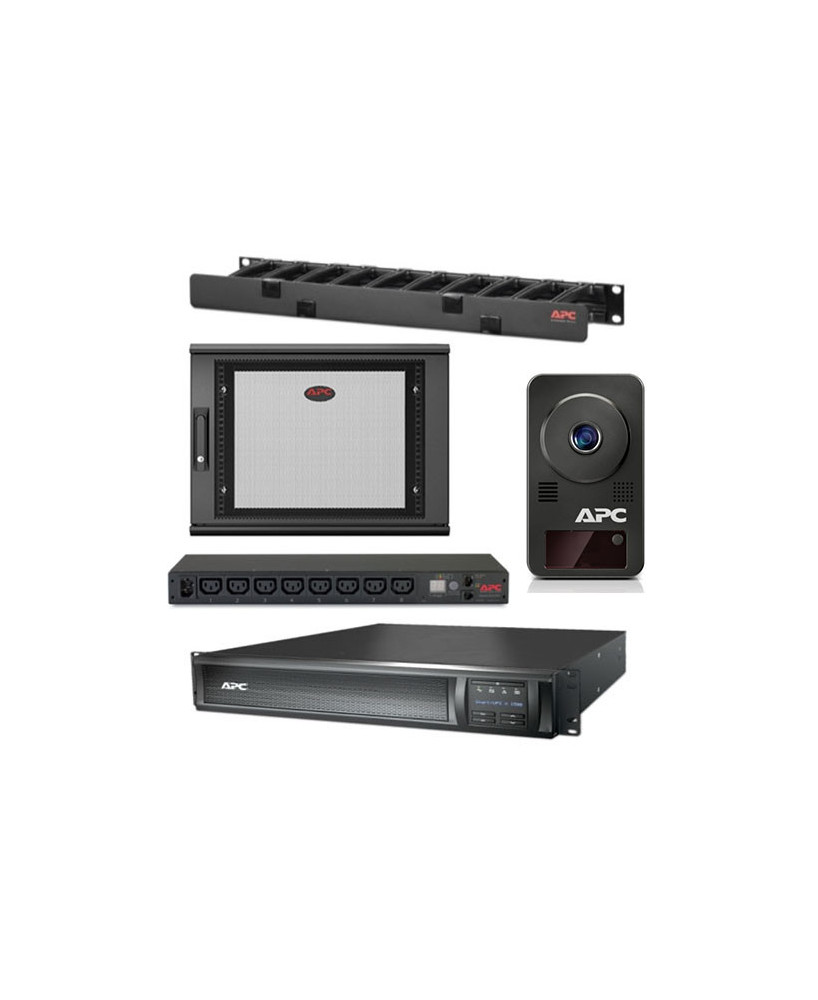

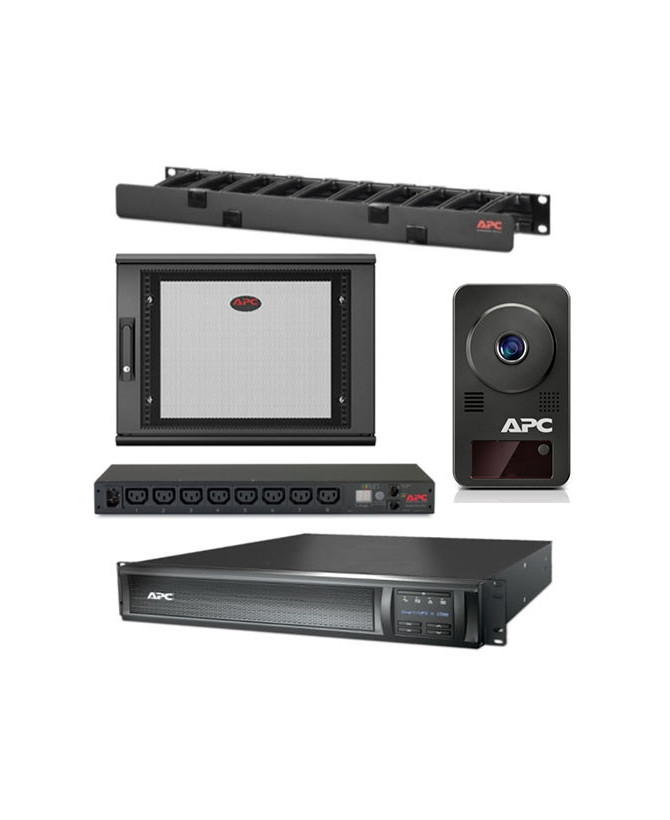

The APC NET9US-S1500-N is a bundle that consists of APC NetShelter WX 9U Single-Hinged Wall-Mount Enclosure AR109SH6, APC Cable Manager AR8602A, APC Smart-UPS SMX1500RMI2UNC, APC NetBotz Camera Pod 165 NBPD0165, and APC Metered Rack PDU AP7820B.

The APC NetShelter WX 9U Single-Hinged Wall-Mount Enclosure AR109SH6 is designed for network and server rack applications. Use this cabinet to mount up to 9 RU of rackmount gear, such as servers, network switches, and more. The unit, with a depth of 23.9', offers a reversible, single-hinged door to suit any space as well as knockouts for cable exits or accessories..

The APC Cable Manager AR8602A is a Single-Sided Horizontal Cable Manager with Cover that features high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.

The APC Smart-UPS SMX1500RMI2UNC offers intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

The APC NetBotz Camera Pod 165 NBPD0165 is a Camera pods that integrate with specific NetBotz appliances to aid intrusion detection and help maintain compliance.

APC Metered Rack PDU AP7820B is a rack-mountable power distribution unit that provides real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 36-month manufacturer's warranty.

APC NetShelter WX 9U Single-Hinged Wall-Mount Enclosure AR109SH6
• Wall-Mounted 9 RU Rack Enclosure
• For Servers, Switches & IT Equipmement
• Reversible Front Door
• Ventilated Construction
• Knockouts for Side Entry Cabling
• Ships Assembled
• Hardware Kit Included

APC Cable Manager AR8602A
• Cable protection: Smooth plastic fingers provide a proper bend radius.
• Double-sided capable: Horizontal cable managers include double-sided configuration hardware to install (2) alike horizontal cable managers back-to-back for double-sided applications.
• Trouble-free access: Covers with snap hinges provide trouble-free access to cables.

APC Smart-UPS SMX1500RMI2UNC
• Auto recognition of external batteries - UPS recognizes when external battery packs are attached and automatically adjusts runtime.
• Cold-start capable - Provides temporary battery power when the utility power is out.
• Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
• Adjustable voltage-transfer points - Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
• Network manageable - Provides remote power management of the UPS over the network.
• Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
• Resettable circuit breakers - Enables a quick recovery from overload events.

APC NetBotz Camera Pod 165 NBPD0165
• Full-motion video camera
• Handheld device support
• Intelligent appliance
• Network equipment monitoring
• Scalability
• 3rd party sensor support
• Event-driven video storage
• Fault notification
• Customized escalation policies
• Environmental monitoring

APC Metered Rack PDU AP7820B
• The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
• Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
• Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allows users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
• Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
• Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

APC NetShelter WX 9U Single-Hinged Wall-Mount Enclosure AR109SH6
• Rack Form Factor: 9 RU
• Rack Depth: 20.79" / 528 mm
• Load Capacity: 200 lb / 90.72 kg (Stationary)
• Caster/Wheel: None
• Fans: None
• Wall Mountable: Yes, with Included Hardware
• Enclosure Design: Open
• IP Rating: IP20
• Certifications: RoHS, as per Manufacturer
APC Cable Manager AR8602A
• Colour: Black
• Rack Size: 19"
• Height (Rack Units): 1U
• Dimensions (WxDxH): 4.4 cm x 46.5 cm x 10.9 cm
• Weight: 890 g
• Features: Horizontal orientation
• Designed For: P/N: AR106SH4, AR106SH6, AR106V, AR106VI, AR109SH4, AR109SH6, AR112SH4, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, SCL400RMJ1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1UC, SCL500RMI1UNC, SMTL1000RM2UC, SMTL1000RMI2UC, SMTL750RMI2UC, SRT1000RMXLI-NC, SRT5KRMXLW-TW

APC Smart-UPS SMX1500RMI2UNC
• Rack Size: 2U
• Weight: 24.8 kg
• Input Voltage: AC 230 V
• Output Voltage: AC 230 V
• Power Capacity: 1200 Watt / 1500 VA
• Input Connectors: Power IEC 60320 C14
• Output connectors: 8 x power IEC 60320 C13
• Battery: Lead Acid
• Battery Form Factor: Plug-in module
• Batteries Qty: 1
• Run Time (Up To): 5.8 min at full load
• Networking: Ethernet, RS-232, USB
• Colour: Black
• Dimensions (WxDxH): 8.9 cm x 49 cm x 43.2 cm
• Designed For: P/N: AR106SH6, AR106V, AR106VI, AR109SH6, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3140G, AR3340G, AR3357X674, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, NBWL0356A

APC NetBotz Camera Pod 165 NBPD0165
• Input Power: 4 Watts
• Maximum Height: 97MM, 9.65CM
• Maximum Width: 56MM, 5.6CM
• Maximum Depth : 38MM, 3.8CM
• Color: Black

APC Metered Rack PDU AP7820B
• Cord Length: 1.98 m
• Rack Size: 1U
• Weight: 1.73 kg
• Input Voltage: AC 200/208/230 V
• Output Voltage: AC 208/230 V
• Power Capacity: 2300 VA
• Input Connectors: 1 x power IEC 60320 C14
• Output connectors: 8 x power IEC 60320 C13
• Networking Ethernet: 10/100
• Remote Management Protocol: SNMP, Telnet, HTTP
• Dimensions (WxDxH): 44.4 cm x 10.2 cm x 4.4 cm
• Designed For: APC AR106SH4, AR106SH6, AR106V, AR106VI, AR109SH4, AR109SH6, AR112SH4, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, SCL400RMJ1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1UC, SCL500RMI1UNC, SMTL1000RM2UC, SMTL1000RMI2UC, SMTL750RMI2UC, SRT2200XLI-KR, SRT5KRMXLW-TW

• 1 x APC NetShelter WX 9U Single-Hinged Wall-Mount Enclosure AR109SH6
• 1 x APC Cable Manager AR8602A
• 1 x APC Smart-UPS SMX1500RMI2UNC
• Installation guide
• Rack Mounting support rails
• Removable support feet
• Smart UPS signalling RS-232 cable
• USB cable
• 1 x APC NetBotz Camera Pod 165 NBPD0165
• 1 x APC Metered Rack PDU AP7820B
