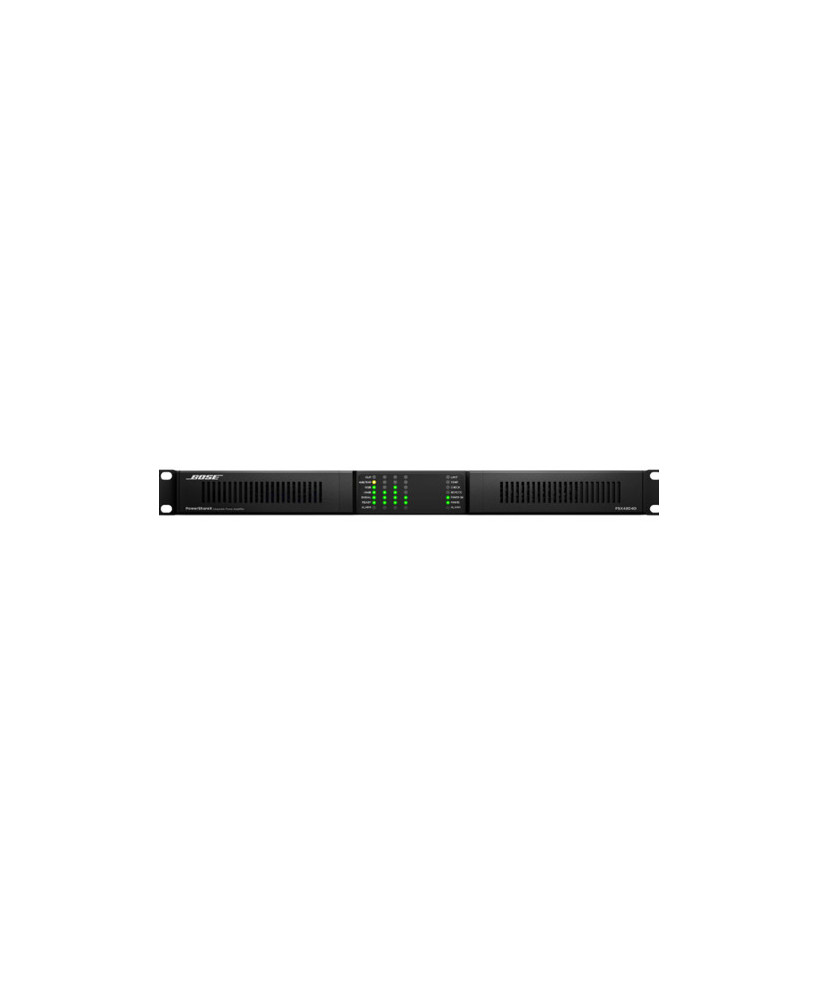

The Bose PowerShareX PSX4804D (240V) Adaptable Power Amplifier 878920-5110 delivers an impressive 4800 watts across four channels, making it ideal for Bose Professional installed sound systems. With onboard DSP, it provides instant access to optimized loudspeaker presets via ControlSpace Designer software, ensuring seamless integration with Bose processors, loudspeakers, and controllers. This smart amplifier streamlines design, configuration, installation, and operation for efficient project completion.

Engineered for flexibility and performance, the PSX4804D is perfect for high-demand commercial sound applications, offering powerful and reliable amplification tailored to your professional audio needs.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 60-month manufacturer's warranty.

• Power-sharing technology: Dynamically allocates power evenly or asymmetrically across outputs without having to bridge channels or lose channel count when powering Bose Professional loudspeakers.
• Bose Professional certified presets and ControlSpace Designer integration: Delivers the best performance, loudspeaker protection, and visibility of the entire Bose Professional system from a single UI for easy design, configuration, control, and monitoring.
• Proven Powersoft reliability: Ensures the systems operate every day, mitigating non-billable service calls.
• Flexible outputs: Capable of handling either low-impedance (2, 4, 8Ω) or high-impedance (70, 100V) loudspeaker loads.
• Built-in Dante audio: Supports up to 4 digital input channels from a Dante network eliminating the requirement of ordering and installing an accessory network card.
• 4 analog inputs: Provide line-level source connections.
• PowerShare Design Tool: A downloadable design tool that allows system designers the ability to choose their PowerShare amp and simulate the power-sharing capability that, in some cases, can lead to a lower-power model requirement and cost savings.
• GPIO connections: Provide a remote level, on/off, and alarm triggers.
• Network monitoring: Provides real-time system performance data, minimizing downtime, guesswork, and unnecessary service calls.
• Rack-friendly 1RU design: That is only 358 mm (14.1 in) deep eliminating the need for oversized racks

• Product Type: Amplifier
• Channel Separation (Crosstalk): -70 dB typical at 1 kHz
• Frequency Response: 20 Hz – 20 kHz (±1.0 dB), 1 W at 8 Ω
• Gain, Low-Impedance: 26 dB, 29 dB, 32 dB, 35 dB, selectable
• Maximum Peak Power, Asymmetrical: 3600 W at 2 Ω / 5200 W at 4 Ω / 2600 W at 8 Ω / 4200 W at 70V / 4400 W at 100V
• Maximum Peak Power, Symmetrical: 3000 W at 2 Ω, 4 Ω / 2400 W at 8 Ω, 70V, 100V
• Number of Channels: 4
• Power Class: Class D
• Rated Power, Asymmetrical: 1800 W at 2 Ω / 2600 W at 4 Ω /
1300 W at 8 Ω / 2100 W at 70V / 2200 W at 100V
• Rated Power, Symmetrical: 1500 W per channel at 2 Ω / 1200 W per channel at 4 Ω, 8 Ω, 70V, 100V
• SNR: > 104 dB (A-weighted)
• THD+N: < 0.1% (< 0.05% typical, from 0.1 W to half-power)
• Input Channels: 4 balanced, line
• Connectors: (1) 6-pin Euroblock
• Input Impedance: 20 kΩ
• Maximum Input Level: 20 dBu
• Sensitivity: 4.91 Vrms at 26 dB gain, 3.48 Vrms at 29 dB gain, 2.46 Vrms at 32 dB gain, 1.74 Vrms at 35 dB gain
• Channels: 4 Dante in
• Connectors: (1) RJ-45 Dante in
• Type: 6-pin Euroblock
• Channels: 4
• Connectors: (1) 8-pin Euroblock, 7.62 mm
• Mains Voltage: 100–240 VAC (±10%), 50/60 Hz
• Cooling System: Continuous temperature-controlled variable-speed fan, front-to-back airflow
• Suspension/Mounting: Rack-mounting
• Product Dimensions (H×W×D): 19.0 in × 1.8 in × 14.1 in (483 mm × 45 mm × 358 mm)

• Bose PowerShareX PSX4804D 240V Adaptable Power Amplifier 878920-5110
• (1) 4-pin Euroblock connector
• (1) 8-pin Euroblock connector
• (1) IEC power cord
• (1) installation guide
• (3) 12-pin Euroblock connectors
• User Guide
