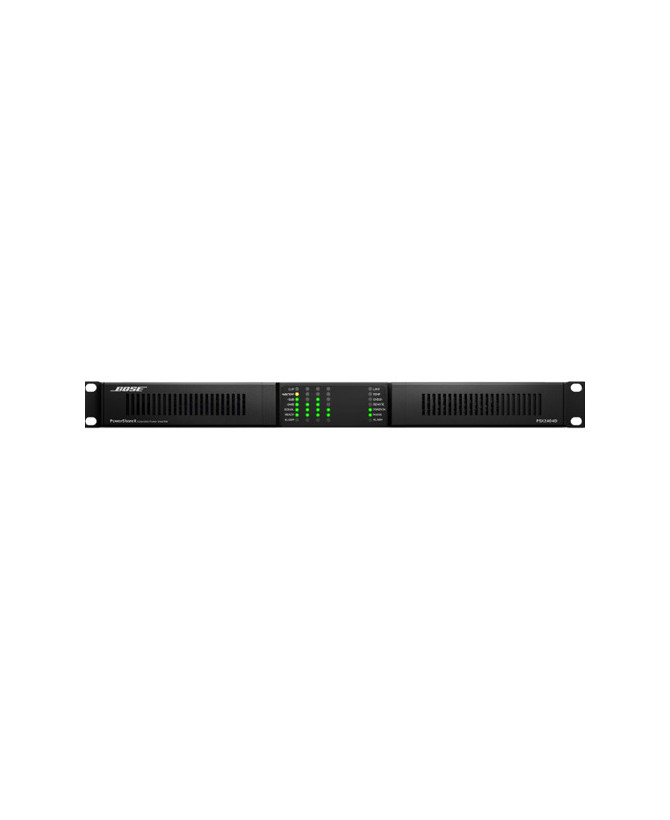

Bose PowerShareX PSX2404D 240 V Adaptable Power Amplifier 878919-5110
The Bose PowerShareX PSX2404D (240V) Adaptable Power Amplifier 878919-5110 is a powerful four-channel, 2400-watt amplifier engineered for Bose Professional installed sound systems.
The Bose PowerShareX PSX2404D (240V) Adaptable Power Amplifier 878919-5110 is a powerful four-channel, 2400-watt amplifier engineered for Bose Professional installed sound systems. Featuring onboard DSP, it offers instant access to optimized loudspeaker presets via ControlSpace Designer software, ensuring seamless integration with Bose processors, loudspeakers, and controllers. Its user-friendly design simplifies installation, configuration, and operation, making it an efficient choice for professionals.
Perfect for a variety of settings, the PSX2404D suits commercial installations, houses of worship, performing arts venues, corporate spaces, hotels, retail/restaurants, educational institutions, government facilities, and sports or fitness centers. With its adaptability and ease of use, it delivers premium sound performance for diverse applications.
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with a 60-month manufacturer's warranty.
FEATURES
• Power-sharing technology: Dynamically allocates power evenly or asymmetrically across outputs without having to bridge channels or lose channel count when powering Bose Professional loudspeakers.
• Bose Professional certified presets and ControlSpace Designer integration: Delivers the best performance, loudspeaker protection, and visibility of the entire Bose Professional system from a single UI for easy design, configuration, control, and monitoring.
• Proven Powersoft reliability: Ensures the systems operate every day, mitigating non-billable service calls.
• Flexible outputs: Capable of handling either low-impedance (2, 4, 8Ω) or high-impedance (70, 100V) loudspeaker loads.
• Built-in Dante audio: Supports up to 4 digital input channels from a Dante network eliminating the requirement of ordering and installing an accessory network card.
• 4 analog inputs: Provide line-level source connections.
• PowerShare Design Tool: A downloadable design tool that allows system designers the ability to choose their PowerShare amp and simulate the power-sharing capability that, in some cases, can lead to a lower-power model requirement and cost savings.
• GPIO connections: Provide a remote level, on/off, and alarm triggers.
• Network monitoring: Provides real-time system performance data, minimizing downtime, guesswork, and unnecessary service calls.
• Rack-friendly 1RU design: That is only 358 mm (14.1 in) deep eliminating the need for oversized racks.
QUICK SPECIFICATIONS
• Product Type: Amplifier
• Channel Separation (Crosstalk): -70 dB typical at 1 kHz
• Frequency Response: 20 Hz – 20 kHz (±1.0 dB), 1 W at 8 Ω
• Gain, Low-Impedance: 26 dB, 29 dB, 32 dB, 35 dB, selectable
• Maximum Peak Power, Asymmetrical: 3200 W at 2 Ω / 3400 W at 4 Ω / 2600 W at 8 Ω / 3400 W at 70V / 3000 W at 100V
• Maximum Peak Power, Symmetrical: 1600 W at 2 Ω / 1200 W at 4 Ω, 8 Ω, 70V, 100V
• Number of Channels: 4
• Power Class: Class D
• Rated Power, Asymmetrical: 1600 W at 2 Ω / 1700 W at 4 Ω / 1300 W at 8 Ω in 100V mode / 1700 W at 70V / 1500 W at 100V
• Rated Power, Symmetrical: 800 W per channel at 2 Ω / 600 W per channel at 4 Ω, 8 Ω, 70V, 100V
• SNR: > 104 dB (A-weighted)
• THD+N: < 0.1% (< 0.05% typical, from 0.1 W to half-power)
• Input Channels: 4 balanced, line
• Connectors: (1) 6-pin Euroblock
• Input Impedance: 20 kΩ
• Maximum Input Level: 20 dBu
• Sensitivity: 3.54 Vrms at 26 dB gain, 2.51 Vrms at 29 dB gain, 1.78 Vrms at 32 dB gain, 1.26 Vrms at 35 dB gain
• Channels: 4 Dante in
• Connectors: (1) RJ-45 Dante in
• Type: 6-pin Euroblock
• Channels: 4
• Connectors: (1) 8-pin Euroblock, 7.62 mm
• Mains Voltage: 100–240 VAC (±10%), 50/60 Hz
• Cooling System: Continuous temperature-controlled variable-speed fan, front-to-back airflow
• Suspension/Mounting: Rack-mounting
• Product Dimensions (H×W×D): 19.0 in × 1.8 in × 14.1 in (483 mm × 45 mm × 358 mm)
WHAT'S INCLUDED
• Bose PowerShareX PSX2404D 240 V Adaptable Power Amplifier 878919-5110
• (1) 4-pin Euroblock connector
• (1) 8-pin Euroblock connector
• (1) IEC power cord
• (1) installation guide
• (1) PowerShareX PSX2404D
• (3) 12-pin Euroblock connectors
• User Guide
Do you have a question about this product? Please call 1800 90 90 99.
Specific References
- MPN
- 878919-5110
The Bose PowerShareX PSX2404D (240V) Adaptable Power Amplifier 878919-5110 is a powerful four-channel, 2400-watt amplifier engineered for Bose Professional installed sound systems.
