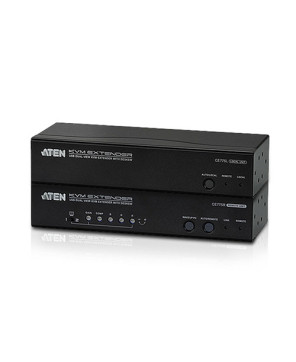

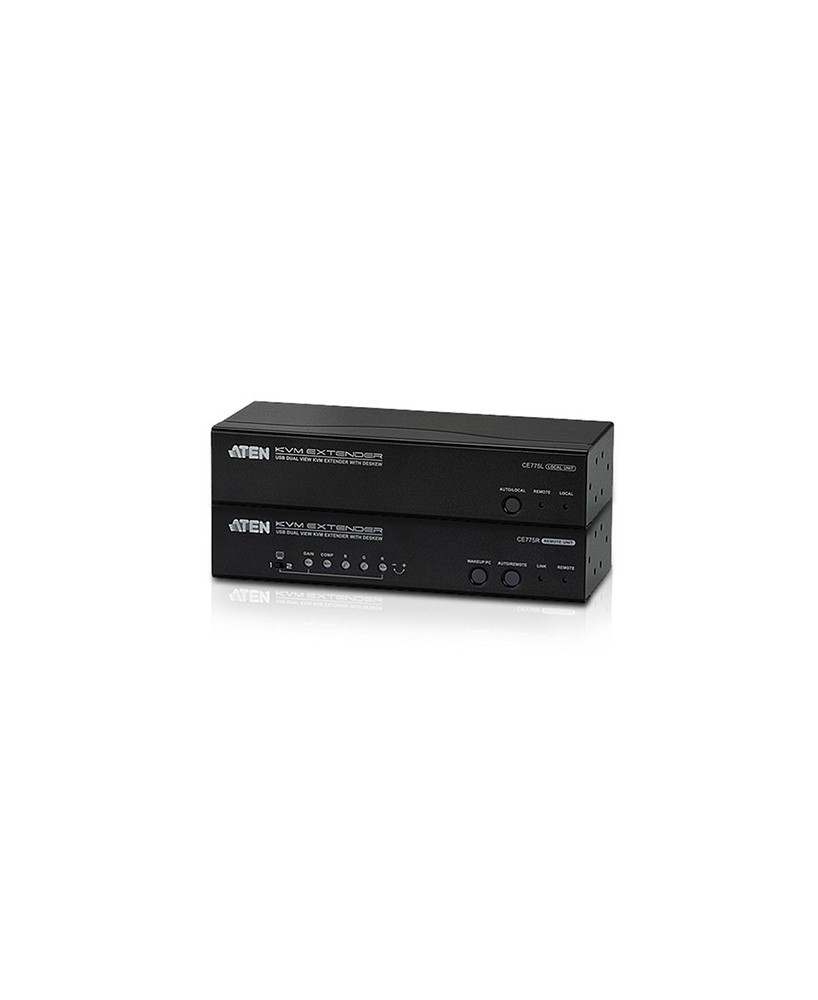

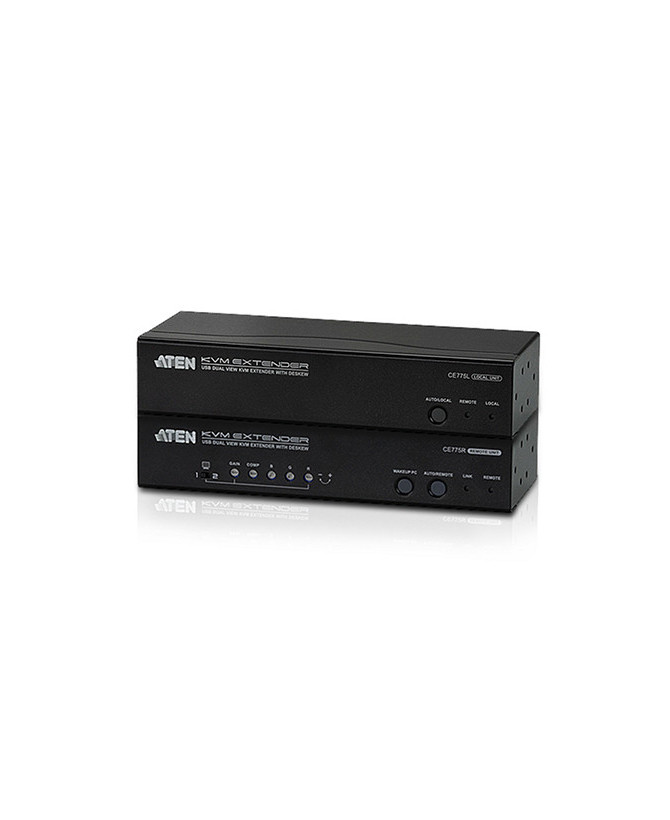

The Aten USB VGA Dual View Cat 5 KVM Extender CE775-AT-U enables access from a remote Dual View console up to 1000 feet (300 m) away to a computer system. The dual view function provides support for two displays, allowing the video output to seamlessly display on two monitors. Its advanced PC Wake-Up feature allows you simply use a pushbutton from the remote dual view console to wake a PC at the local site via RS-232, no need to go to the local site to wake up the PC. It eliminates the need for traveling back and forth between the local computer and remote console, efficient and flexible.

To simply modify the picture quality, use the upgraded built-in front panel tuners. Furthermore, you can easily and quickly synchronize the time delay of RGB signals in order to adjust for distance.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 24-month manufacturer's warranty.

• Dual View Support - connect two screens to transmit two video output signals to a remote site up to 300 m away using inexpensive Cat 5e/6 cables
• Dual Console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
• Superior video quality – 1920x1200@60Hz(150 m), 1280x1024@60Hz(300 m)
• Deskew Function – automatically synchronizes the time delay of RGB signals to compensate for distance

• Supported Operating Systems
- Windows: 2000, XP, Vista, 7
- Linux: Redhat 7.1 and up; SuSE 9.0 and up; Mandriva (Mandrake) 9.0 and up
- UNIX: FreeBSD 4.2 and up; Sun Solaris 8 and up
- Novell: Netware 6.0 and up
- Mac: OS 9 and up
• Connectors
- Console Ports (local and remote):
- Keyboard - 1 x USB type A female (white)
- Video - 2 x HDB-15 female (blue)
- Mouse - 1 x USB type A female (white)
- Speakers - 1 x mini stereo jack female (green)
- Mic - 1 x mini stereo jack female (pink)
- Main - 1 x RJ-45 female (black)
- Sub - 1 x RJ-45 female (black)
- KVM Ports (local only): Keyboard / video / mouse: 1 x SPHD-17 female (yellow)
- Speakers - 1 x mini stereo jack (green)
- Mic - 1 x mini stereo jack (pink)
- VGA input - 1 x HDB-15 male (blue)
- RS-232 (local and remote): 1 x DB-9 female (black)
- Power: 1 x DC jack (black)
• Buttons or Switches
- Operating mode selection (local and remote): 1 x pushbutton
- Wakeup computer (remote only): 1 x pushbutton
- Video output port selection (remote only): 1 x slide switch
- Video gain tuner (remote only): 1 x knob
- Video compensation tuner (remote only): 1 x knob
- RGB tuner: 3 x knob (remote only)
• LED Indicators
- Local unit: 2 x green (local, remote)
- Remote unit: 1 green (link)
• Emulation Keyboard, mouse: USB
• Video Resolution 1920 x 1200 @ 60Hz (500' (150 m)), 1280 x 1024 @ 60Hz (1000' (300 m))
- Operating Temperature & Humidity 32 - 122°F (0 - 50°C), RH 0 - 80% non-condensing
• Storage Temperature -4 - 140°F (-20 - 60°C)
• Power Consumption
- Local: 5.3 VDC / 4.38 W
- Remote: 5.3 VDC / 10.27 W
• Housing Material Metal
• Dimensions
- Local: 7.9 x 3.0 x 1.7" (20.0 x 7.6 x 4.2 cm)
- Remote: 7.9 x 3.0 x 1.7" (20.0 x 7.6 x 4.2 cm)
• Weight
- Local: 1.52 lb (0.69 kg)
- Remote: 1.52 lb (0.69 kg)

• 1x CE775L USB KVM Extender (Local Unit)
• 1x CE775R USB KVM Extender (Remote Unit)
• 1x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)
• 1x VGA Cable (1.8m)
• 2x Power Adapters
• 1x Mounting Kit
• User Instructions
