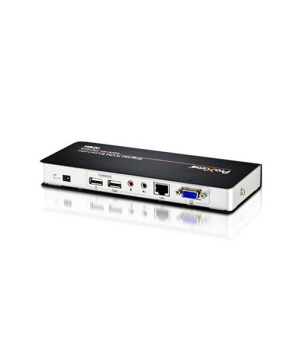

The Aten USB VGA/Audio Cat 5 KVM Extender CE770-AT-U is a USB based KVM Extender with Deskew function. The automatic signal compensation and RS-232 serial functionality offer remote USB console access to a computer system. The CE770-AT-U has an RGB delay tuner that can be used to manually synchronize RGB signals. This allows users to deploy system equipment over large distances. The CE770-AT-U's line synchronizing function corrects color phase and timing errors that occur over long-distance transmissions. It also allows you to fine-tune the R/G/B signal settings manually.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 12-month manufacturer's warranty.

• Local and Remote Units connect at distances up to 300 m using Cat 5e cable
• Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
• Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
• Built-in ASIC for greater reliability and compatibility
• Auto Signal Compensation (ASC)
• RS-232 serial ports - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
• Sun/Mac keyboard support and emulation
• Audio Enabled - supports stereo speakers and microphone
• USB overcurrent detection and prevention
• Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
• Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
• High resolution video - up to 1920 x 1200@60Hz (150 m); 1280 x 1024@60Hz (300 m)
• Superior Audio - no loss in audio quality at 300 m
• Supports Wide Screen formats
• Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
• Hot pluggable
• Rack mountable
• Easy to install - no software required - connecting cables to the devices is all it takes

• Supported Operating Systems:
- Windows: 2000, XP, Vista
- Linux: Redhat 7.1 and up; SuSE 9.0 and up; Mandriva (Mandrake) 9.0 and up
- UNIX: FreeBSD 4.2 and up
- Novell: Netware 6.0 and up
• Connections:
- Local:
- 1 x SPHD-17 Female for Keyboard, Mouse, Video
- Mini stereo jack female Speaker (green)
- Mini stereo jack female Mic (pink)
- RJ-45 female
- DB-9 for RS232
- Remote:
- HDB-15 female
- USB Type A Female Keyboard
- USB Type A female Mouse
- Mini stereo jack female Speaker (green)
- Mini stereo jack female Mic (pink)
- RJ-45 female
- DB-9 for RS232
• Cable Distance: 1000' max
• LED Indicators:
- Local unit: 2 x green (local, remote)
- Remote unit: 1 x blue, 1 x orange / green (link), 1 x red (remote)
• Switches:
- Mode selection: 1 x pushbutton local
- Picture compensation: 1 x pushbutton remote
- Sensitivity: 1 x pushbutton remote
• Emulation: Keyboard, mouse: USB
• Video Resolution: 1920 x 1200 @ 60Hz (300'), 1280 x 1024 @ 60Hz (900')
• Operating Temperature & Humidity: 32 - 122°F (0 - 50°C), RH 0 - 80% non-condensing
• Storage Temperature: -4 - 140°F (-20 - 60°C)
• Power Consumption:
- Local: 3.5 W / 12 BTU/h
- Remote: 5.1 W / 17.4 BTU/h
• Housing Material: Metal
• Dimensions:
- Local: 7.9 x 3.1 x 1.0" (20.0 x 8.0 x 2.5 cm)
- Remote: 7.9 x 3.1 x 1.0" (20.0 x 8.0 x 2.5 cm)
• Weight:
- Local: 17.3 oz (0.49 kg)
- Remote: 17.3 oz (0.49 kg)

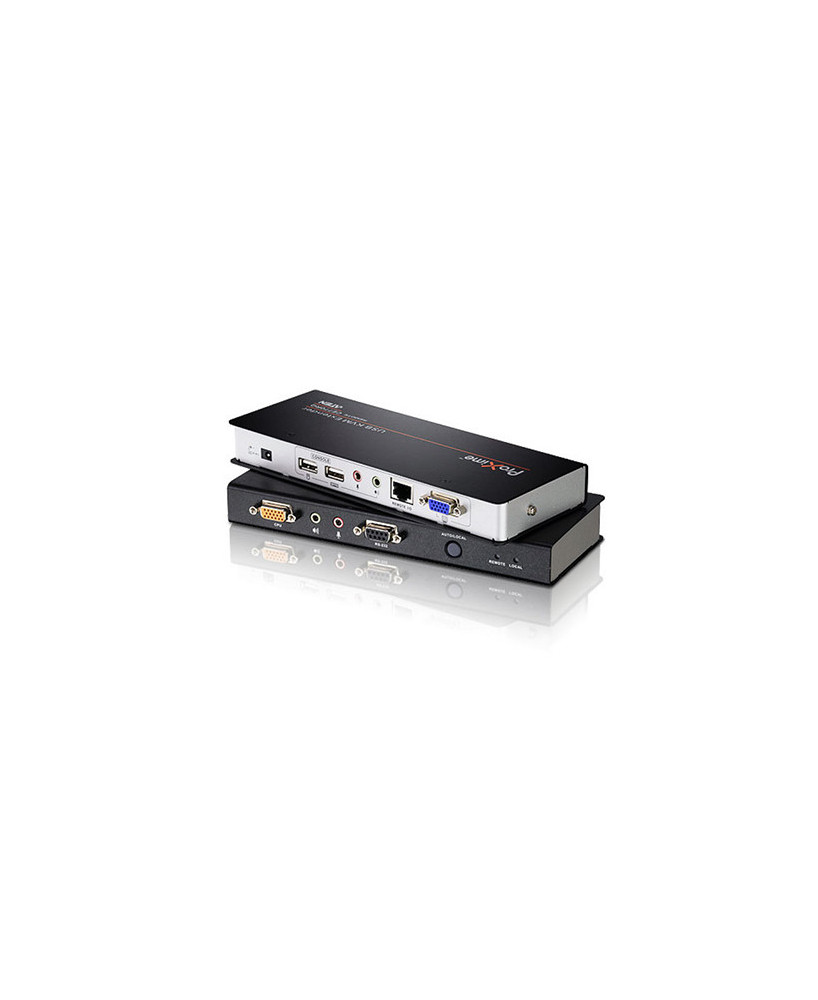

• 1x CE770L USB KVM Extender (Local Unit)
• 1x CE770RQ USB KVM Extender (Remote Unit)
• 1x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)
• 2x Power Adapter
• 1x Mounting Kit
• User Instructions
