The Aten SN3002-AX-U KVM Secure Device Server is an external IP-based network device that securely connects legacy serial RS-232 devices to an Ethernet network to be accessed remotely from a computer located anywhere, allowing you to expand the number of serial ports for any host computer over a network. This device server is especially suited for industrial process control applications, given the abundant use of the Supervisory Control and Data Acquisition (SCADA) systems across many industries for collecting data from PLCs, meters, and sensors via serial ports. The SN3000 series bidirectionally translates data between serial and Ethernet formats, and facilitates access to the data from all data collection instruments from local and remote sites through an Ethernet network.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 12-month manufacturer's warranty.

• 2 RS-232 serial ports for secured serial data over Ethernet transmission
• Secured operation modes – Secure Real COM, Secure TCP Server / Client, Secure Serial Tunneling Server / Client, Console Management (SSH), and Console Management Direct (SSH)
• Redundant power input (power jack and terminal block) for fail-safe power • Surge protection for serial, Ethernet, and power

• Product Type: Video Splitter

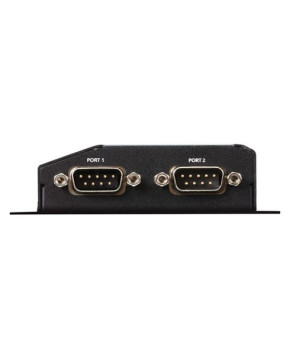

• Connectors Serial: 2 x DB-9 Male
• Connectors Network: 1 x RJ-45 Female
• Connectors Power: 1 x DC Jack
1 x 3-pole Terminal Block
• Reset: 1 x Semi-recessed Pushbutton
• LEDs:
- Power 1 (Green)
- Status 1 (Yellow Green/Red)
- 10/100 Mbps 2 (Green/Orange)
• Ports: 2 (Green/Orange)
• Input voltage: DC Jack: 9VDC (Power Adapter: 9VDC，100-240VAC 50~60 Hz)
• Terminal Block: 9-48 VDC
• Power Consumption: DC9V:0.769W:4BTU, DC48V:0.939W:4BTU
• Housing: Metal
• Weight: 0.21 kg ( 0.46 lb )

• 1x Secure Device Server
• 1x power adapter
• 1x terminal block
• 1x foot pad set (4 pcs)
• 1x DIN rail mount kit
• 1x user instructions
