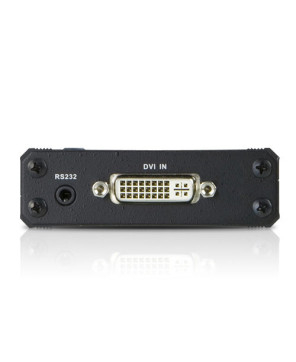

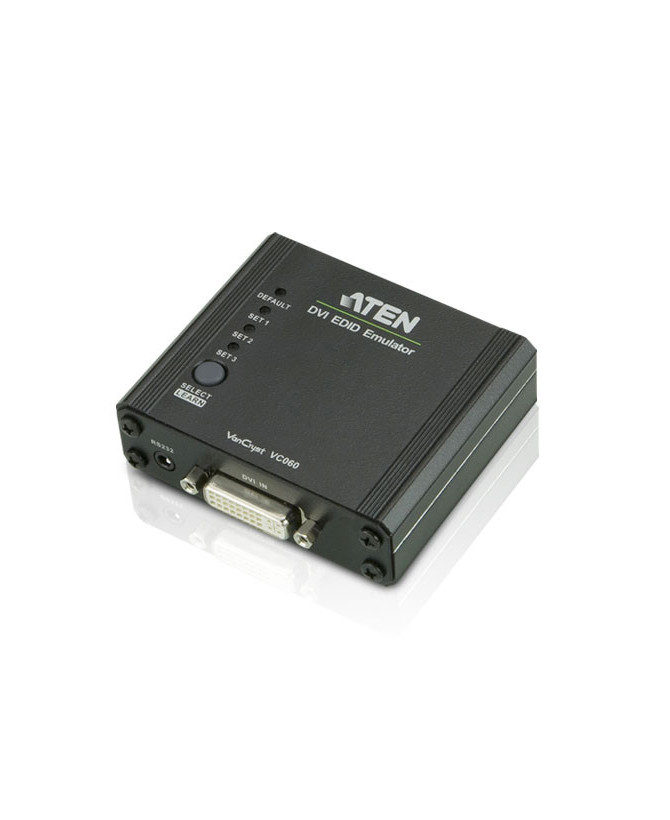

The Aten DVI EDID Emulator with Programmer VC060-AT is a DVI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the DVI source device to efficiently optimize video resolution.
A convenient tool that ensures a smooth viewing experience for any video installation. Provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 24 months manufacturer's warranty.

• Superior video quality – HDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
• EDID Wizard – allows a user an easy way to manage EDID settings
• EDID mode selection – Default, Learning , Programming
• Automatically manages EDID communication between connected devices
• Signaling rates up to 2.25 Gbits in support of 1080p display
• LED indication of video source devices
• Supports wide screen
• Supports hot-plugging
• Non-Powered *

* If the video source is not receiving enough power an external power cord should be connected.

• Max. Video Resolution: WUXGA (1920 x 1200)

• Data Rate: 2.25 Gbits

• Connectors
Power: 1 x DC Jack

• Power Consumption: DC5V:0.13W:1BTU

• Environmental
Operating Temperature: 0 - 50 ºC
Storage Temperature: -20 - 60 ºC
Humidity: 0 - 80% RH, Non-Condensing

• Physical Properties
Housing: Metal
Weight: 0.15 kg ( 0.33 lb )
Dimensions (L x W x H): 7.90 x 7.86 x 2.45 cm, (3.11 x 3.09 x 0.96 in.)

• Carton Lot: 5 pcs

• Video Input
Interfaces: 1 x DVI-I Female (White)
Impedance: 100 Ω

• Video Output
Interfaces: 1 x DVI-I Female (White)
Impedance: 100 Ω

• EDID Settings- EDID Mode: Default / Learn / Customized (EDID Wizard support)

Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

• Aten DVI EDID Emulator with Programmer VC060-AT
• 1x RS-232 Configuration Cable
• 1x USB to DC Power Cord
• 1x User Instructions
