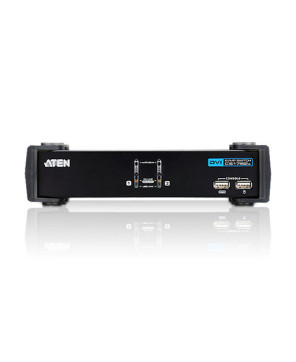

Aten Desktop KVMP Switch with 2 Port Single Display DVI/Audio CS1762A-AT-U
The Aten Desktop KVMP Switch with 2 Port Single Display DVI/Audio CS1762A-AT-U charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch capabilities by integrating a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital display (DVI).
The Aten Desktop KVMP Switch with 2 Port Single Display DVI/Audio CS1762A-AT-U charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch capabilities by integrating a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital display (DVI).
In addition, the CS1762A-AT-U comes with ATEN's new Video DynaSync™ technology, which optimises display resolution, and power on detection, which means if one computer is powered off, it will automatically switch to the next powered-on computer.
As a KVM switch, it enables users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with a 24-month manufacturer's warranty.
FEATURES
• One USB console controls two DVI computers and two additional USB 2.0 devices
• 2-port USB 2.0 hub built in
• Fully compliant with the USB 2.0 specification
• Computer selection via front panel pushbuttons, hotkeys, and mouse
• Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
• Multiplatform support – Windows, Linux, Mac, and Sun
• Supports widescreen resolutions
• Superior video quality – 1920 x 1200
• Independent switching of KVM, USB, and Audio focus
• DVI digital and analog monitor support – fully compliant with the DVI specifications
• HDCP compatible
• Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems
• Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Complete keyboard emulation for error-free booting
• Mac/Sun keyboard support and emulation
• Multilingual keyboard mapping – supports English, Japanese, and French keyboards
• Auto Scan Mode for monitoring all computers
• Firmware upgradable
QUICK SPECIFICATIONS
• Computer Connections: 2
• Port Selection: Hotkey, Pushbutton, Mouse
• Connectors:
- Console Ports: 2 x USB Type A Femal; 1 x DVI-I Female (White); 1 x 3.5mm Audio Jack Female (Green); 1 x 3.5mm Audio Jack Female (Pink)
- KVM Ports: 2 x USB Type B Female; 2 x DVI-I Female (White); 2 x 3.5mm Audio Jack Female (Green); 2 x 3.5mm Audio Jack Female (Pink)
- Power: 1 x DC Jack
- USB Hub: 2 x USB Type A Female (rear panel)
• Switches:
- Selected: 2 x Pushbutton
LEDs:
- USB Link: 2 (Green)
- On Line /Selected: 2 (Orange)
• Emulation:
- Keyboard / Mouse: USB
• Video: 1920 x 1200 @ 60Hz
• Scan Interval: 1–99 seconds (default: 5 sec.)
• Power Consumption: DC5.3V:3.78W:43BTU
• Environmental:
- Operating Temperature: 0 - 50°C
- Storage Temperature: -20 - 60°C
- Humidity : 0-80% RH, Non-condensing
• Physical Properties:
- Housing: Metal
- Weight: 0.73 kg ( 1.61 lb )
- Dimensions (L x W x H): 21.00 x 8.80 x 5.55 cm
WHAT'S INCLUDED
• Aten Desktop KVMP Switch with 2 Port Single Display DVI/Audio CS1762A-AT-U
• User Instructions
