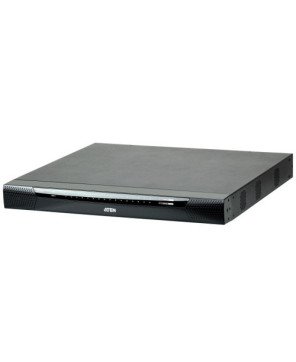

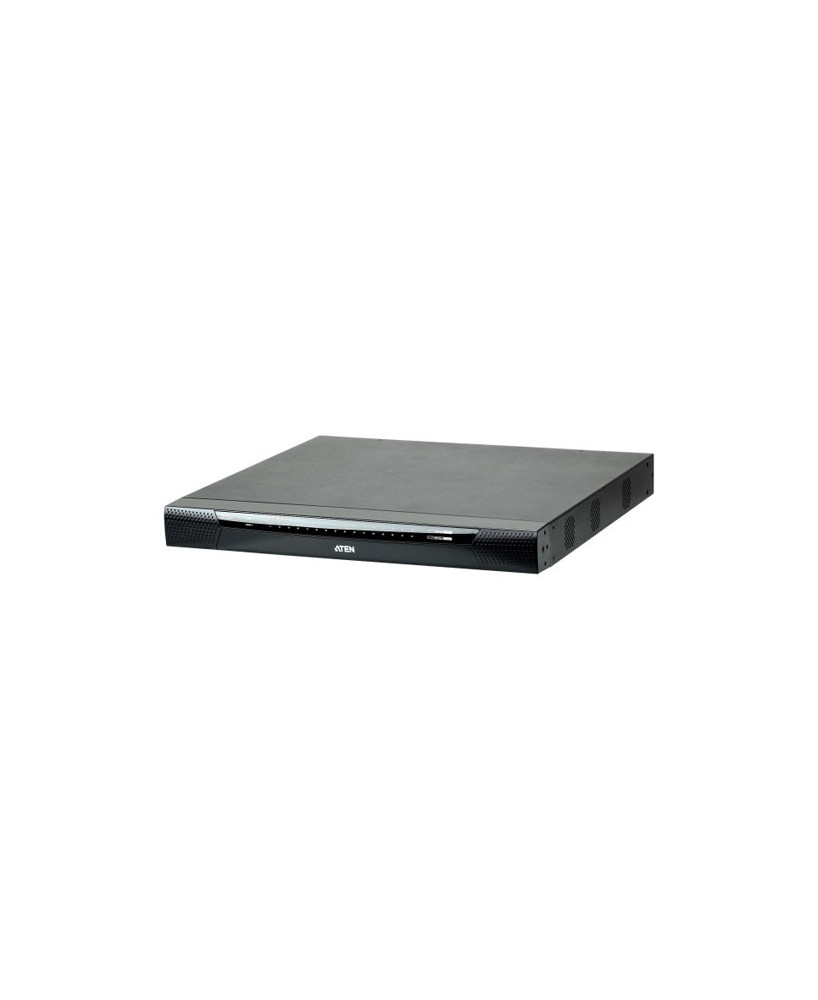

The Aten KN1132V-AX-U features superior video quality (Full HD resolution of 1920 x 1200), FIPS 140-2 with level 1 security standards, and virtual media transmissions at twice the speed. This switch provides local console and remote over IP access for users to monitor and access their entire data center over a network. In addition, it offers out-of-band access with external modem support for BIOS-level troubleshooting when the network is down. With dual on-board NICs and dual power supplies, this switch is built for reliability, to ensure 24/7 availability of remote access to all servers.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 12-month manufacturer's warranty.

• Advanced FPGA graphics processor – with a Full HD resolution of 1920 x 1200
• ATEN Exclusive Panel Array Mode™ simultaneously monitoring for both local console operators and remote access users
• High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)

• Product Type: KVM Over IP
• Console Connections:
- Local 1
- Remote 1
• Computer Connections: - Direct 32
- Maximum 512 (via Cascade)
• Port Selection: Pushbuttons, Hotkeys, GUI
• Console Ports:
- 2 x USB Type-A Female (White)
- 1 x DVI-D Female (White)
- 1 x VGA HDB-15 (Blue)
- 1 x RJ-45 Female (Black)
• USB Port: 3 x USB Type-A Female
• Audio: 2 x Audio Jack Female
• Laptop USB Console (LUC) Port : 1 x USB Mini-B Female
• KVM Ports: 32 x RJ-45 Female
• Serial: 1 x RJ-45 Female
• PON: 1 x RJ-45 Female
• LAN Ports: 2 x RJ-45 Female
• Power: 2 x IEC 60320/C14
• Port Selection: 2 x Pushbuttons
• Reset: 1 x Semi-recessed Pushbutton
• Power: 2 x Rocker Switches
• LEDs:
- Online / Selected 32 (Green/Orange)
- Link 10 / 100 / 1000 Mbps 2 (Red/Orange/Green)
- Power 2 (Blue)
• Keyboard / Mouse: PS/2; USB
• Local: 1920 x 1200 @ 60Hz
• Remote: 1920 x 1200 @ 60Hz
• Scan Interval: 1 – 255 Sec
• Maximum Input Power Rating: 100–240V~ ; 50-60Hz; 1A
• Power Consumption: AC110V:26.88W:162BTU, AC220V:27.83W:167BTU

• 1x KN1132V KVM over IP Switch
• 2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
• 2x LIN2-418K-E12G Power Cords
• 1x Mounting Kit
• 2x 0X12-0017-301G Lok-U-Plugs
• 1x 0X12-0017-401G Lok-U-Plug Installation Tool
• 1x Foot Pad Set (4 pcs.)
• 1x User Instructions

Do you have a question about this product? Please call 1800 90 90 99.
