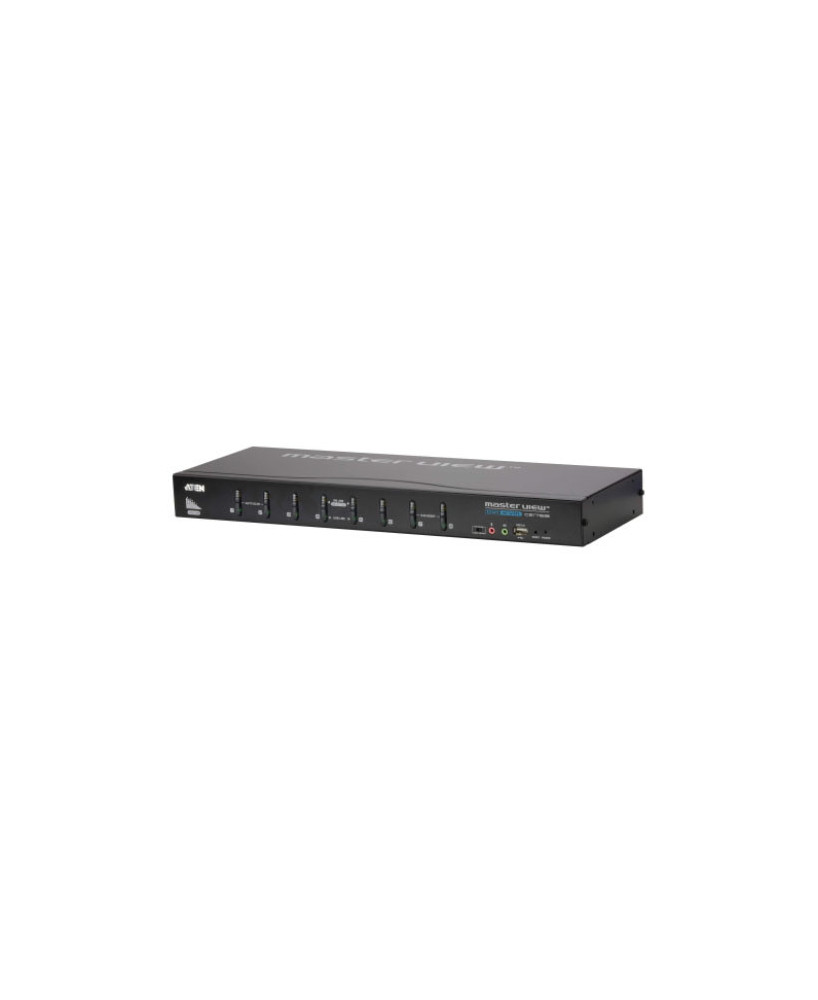

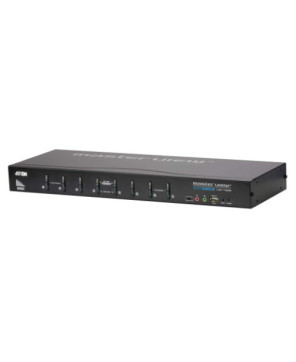

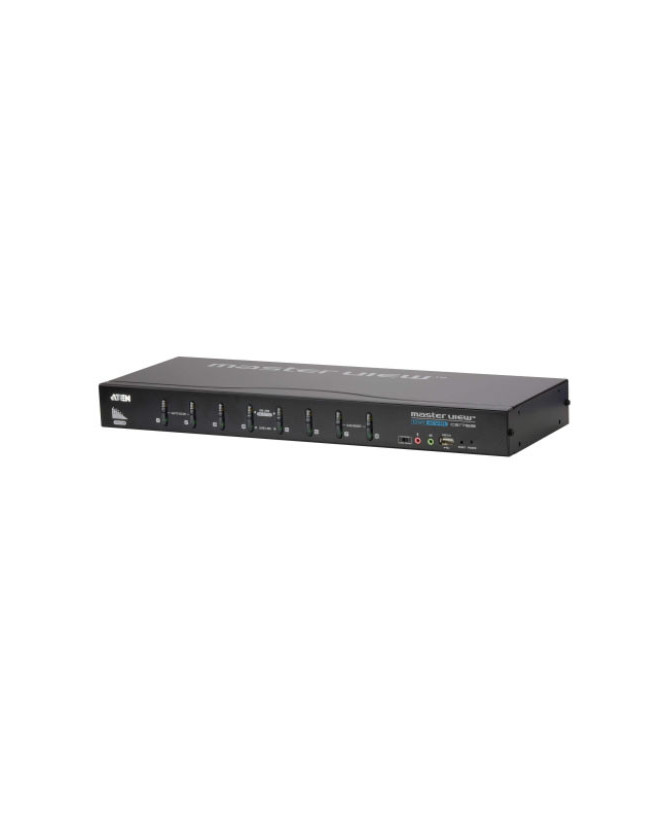

The Aten CS1768-AT-U 8-Port USB DVI KVM Switch features multi-display functionality, which enables the use of standard USB cables to stack up to four switches for quad-displaying in multiple-monitor installations where each computer is fitted with multiple video cards. It allows you to contrast, analyze and monitor video output in convenient ways, substantially simplifying the working environment.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 12-month manufacturer's warranty.

• Superior video quality – 1920 x 1200 (Single Link DVI); 2048 x 1536 (VGA); DDC2B • Supports a digital (DVI) or analog (VGA) video output; Cascadable to three levels – control up to 512 computers
• Broadcast mode – allows you to send commands from the console to all computers to perform operations simultaneously.
• Multi-Display feature – stack up to four CS1768 units and display video from up to four monitors (dual display / triple display / quad display)

• Product Type: Rackmount KVM
• Computer Connections: Direct 8
• Maximum: 512 (via Cascade)
• Port Selection: OSD, Hotkey, Pushbutton
• Console Ports:
- 1 x HDB-15 Female (Blue)
- 1 x DVI-I Female (White)
- 2 x USB Type A Female
- 2 x 3.5mm Audio Jack Female (Pink; 1 x front panel, 1 x rear panel) - 2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel)
• KVM Ports:
- 8 x DVI-I Female (White)
- 8 x USB Type B Female
- 8 x 3.5mm Audio Jack Female (Green)
- 8 x 3.5mm Audio Jack Female (Pink)
• Power: 1 x DC Jack
• Power Consumption: DC5.3V:4.53W:47BTU
• Operating Temperature: 0 - 50°C
• Storage Temperature: -20 - 60°C
• Housing: Metal
• Weight: 2.80 kg ( 6.17 lb )
• Dimensions (L x W x H): 43.72 x 16.12 x 4.40 cm (17.21 x 6.35 x 1.73 in.)

• 1x CS1768 8-Port USB DVI KVM Switch with Rack Mounting Kit
• 2x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
• 1x Firmware Upgrade Cable
• 1x Power Adapter
• 1x Foot Pad Set (4 pcs)
• 1x User Instructions

Do you have a question about this product? Please call 1800 90 90 99.
