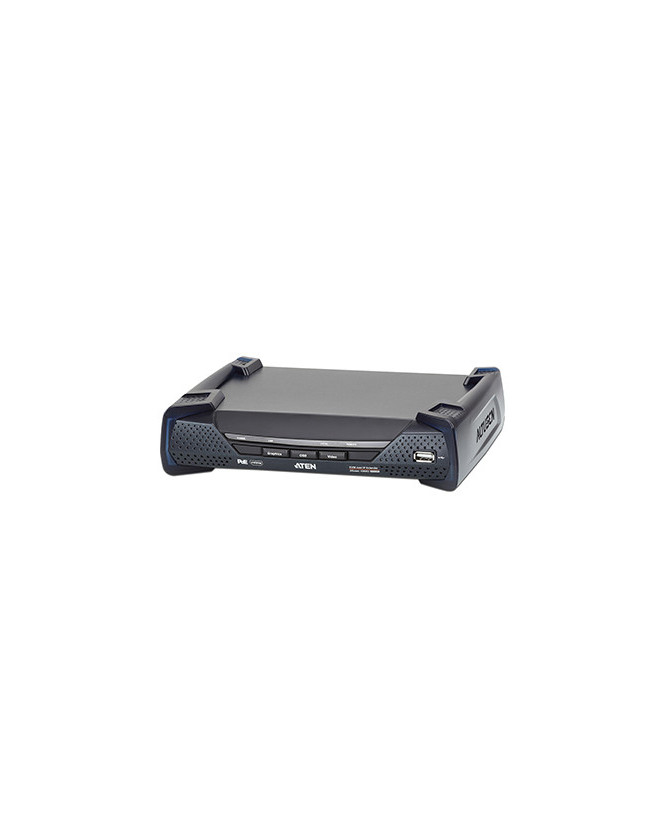

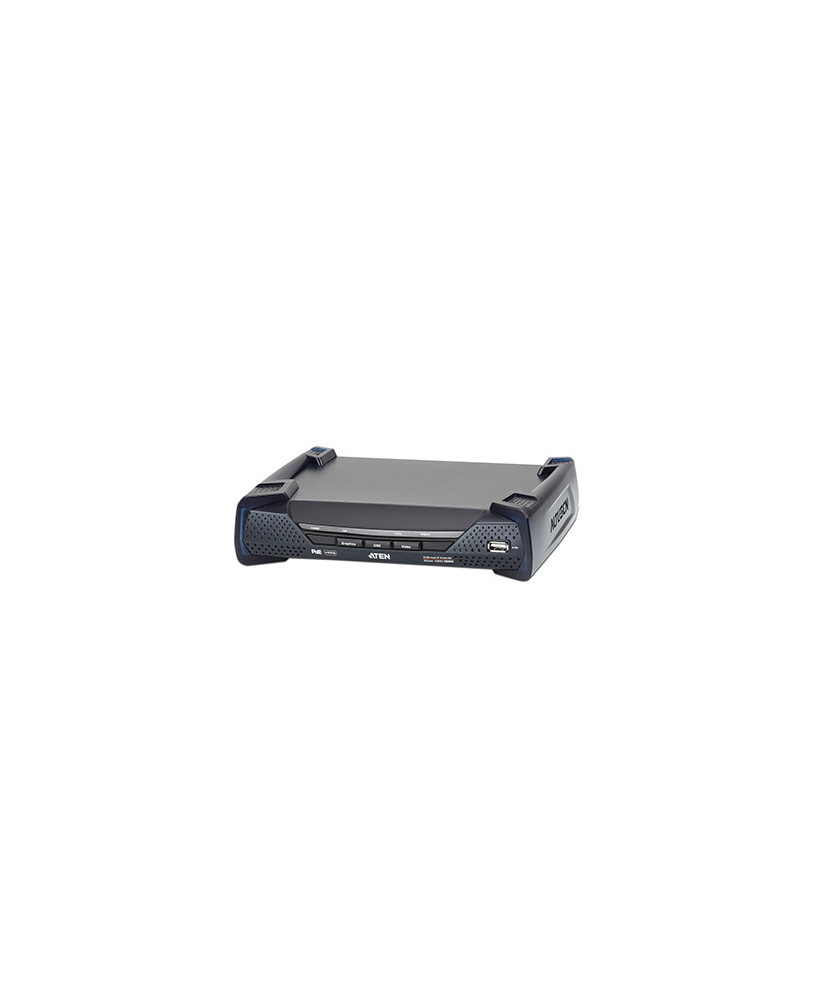

The Aten 4K HDMI Single Display KVM over IP Receiver with PoE KE8952R-AX supports standard HDMI resolutions from 640 x 480 up to 3840 x 2160 @ 30Hz. It features flexible connections which allow multiple extender and matrix connections for Multi-Display installations and Video Wall applications. This HDMI 1.4a and HDCP 1.4 compliant receiver also features a fanless design for silent operations that are energy efficient.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging..

This item comes with a 24-month manufacturer's warranty.

• Ultra High Definition (UHD) video quality – up to 3840 x 2160 @ 60Hz ; 36-bit color depth
• Flexible connections - allows multiple extenders and matrix connections for Multi-Display installations and Video Wall applcations
• Support Single-Mode and Multi-Mode SFP modules up to 10 km
• Support Power over Ethernet (PoE) function – compliant with the IEEE 802.3at standards

• Connectors:
- USB Port: 2 x USB Type A Female (White)
- Console Ports: 2 x USB Type A Female (White); 1 x HDMI Female (Black); 1 x Mini Stereo Jack (Green); 1 x Mini Stereo Jack (Pink); 1 x DB-9 Male (Black)
- KVM Ports: N/A
- Power: 1 x DC Jack (Black)
- LAN Ports: 1 x RJ-45 (Black); 1 x SFP Slot
• Switches:
- OSD: 1 x Pushbutton
- Video: 1 x Pushbutton
- Graphics: 1 x Pushbutton
- Reset: 1 x Semi-recessed Pushbutton
• LEDs:
- 10/100/1000 Mbps: 1 (10: Orange / 100: Orange & Green / 1000: Green)
- Power: 1 (Blue)
- Local: 1 (Green)
- Remote: 1 (Green)
• Emulation:
- Keyboard / Mouse: USB
• Power Consumption: DC48V:7.06W:59BTU
• Video Resolution: 3840 x 2160 @ 60Hz (4:2:0), 3840 x 2160 @ 30 Hz (4:4:4)
• Physical Properties:
- Housing: Metal
- Weight: 1.26 kg ( 2.78 lb )

• 1x KE8952R 4K HDMI Single Display KVM over IP Receiver with PoE
• 1x HDMI LockPro
• User Instructions
