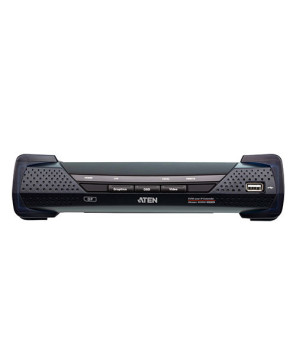

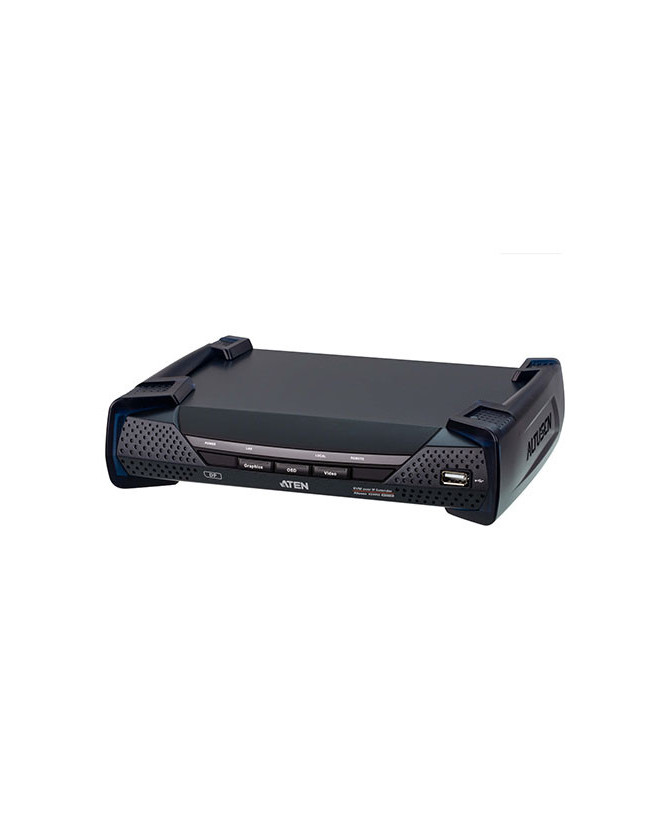

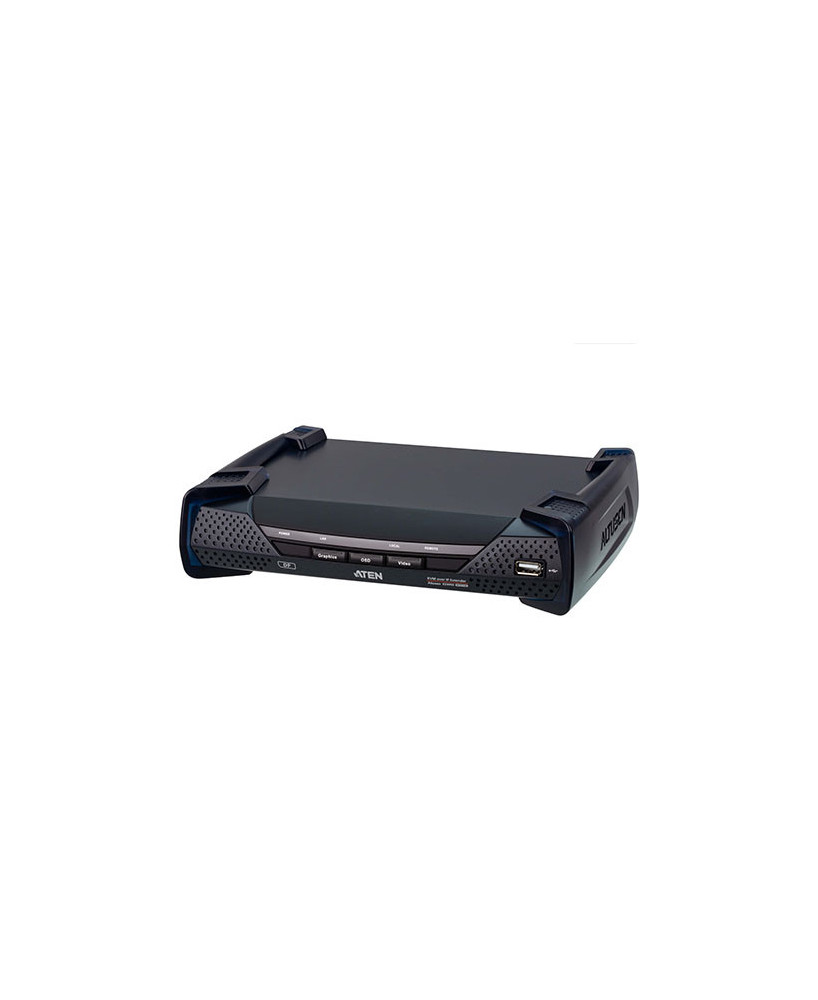

The Aten 4K DisplayPort Single Display KVM over IP Receiver KE9950R-AX-U features “Push” and “Pull” which enables you to share content instantly with just one click. It supports DisplayPort video resolutions up to 3840 x 2160 @ 30Hz (4:4:4) ; 24-bit color depth.The KE9950R-AX-U also supports connection via Gigabit Ethernet port (RJ-45) or SFP port for failover.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 24-month manufacturer's warranty.

• Supports DisplayPort video resolutions up to 3840 x 2160 @ 30Hz (4:4:4) ; 24-bit color depth
• Supports connection via Gigabit Ethernet port (RJ-45) or SFP port for failover
• Supports 1Gbps SFP fiber module expansions up to 10 km
• Power Redundancy – Dual DC Jack

• Connectors:
- USB Port: 2 x USB Type A Female (White)
- Console Ports: 2 x USB Type A Female (White); 1 x DisplayPort Female (Black); 1 x Mini Stereo Jack (Green); 1 x Mini Stereo Jack (Pink); 1 x DB-9 Male (Black)
- Power: 2 x DC Jack (Black)
- LAN Ports: 1 x RJ-45 (Black); 1 x SFP Slot
• Switches:
- OSD: 1 x Pushbutton - Video: 1 x Pushbutton
- Graphics: 1 x Pushbutton
- Reset: 1 x Semi-recessed Pushbutton
- Mode Selection: 1 x Slide Switch (Extension, RS-232 Config)
• LEDs:
- Link 10 / 100 / 1000 Mbps: 1 (10: Orange / 100: Orange & Green / 1000: Green)
- Power: 1 (Blue)
- Local: 1 (Green)
- Remote: 1 (Green)
• Emulation:
- Keyboard / Mouse: USB
• Power Consumption: DC5V:8.03W:63BTU
• Video Resolution: Up to 3840 x 2160 @ 30Hz
• Physical Properties:
- Housing: Metal
- Weight: 1.24 kg ( 2.73 lb )
- Dimensions (L x W x H): 22.75 x 17.16 x 5.48 cm

• 1x KE9950R 4K DisplayPort Single Display KVM over IP Receiver
• 1x Power Adapter
• 1x Power Cord
• 1x User Instructions
