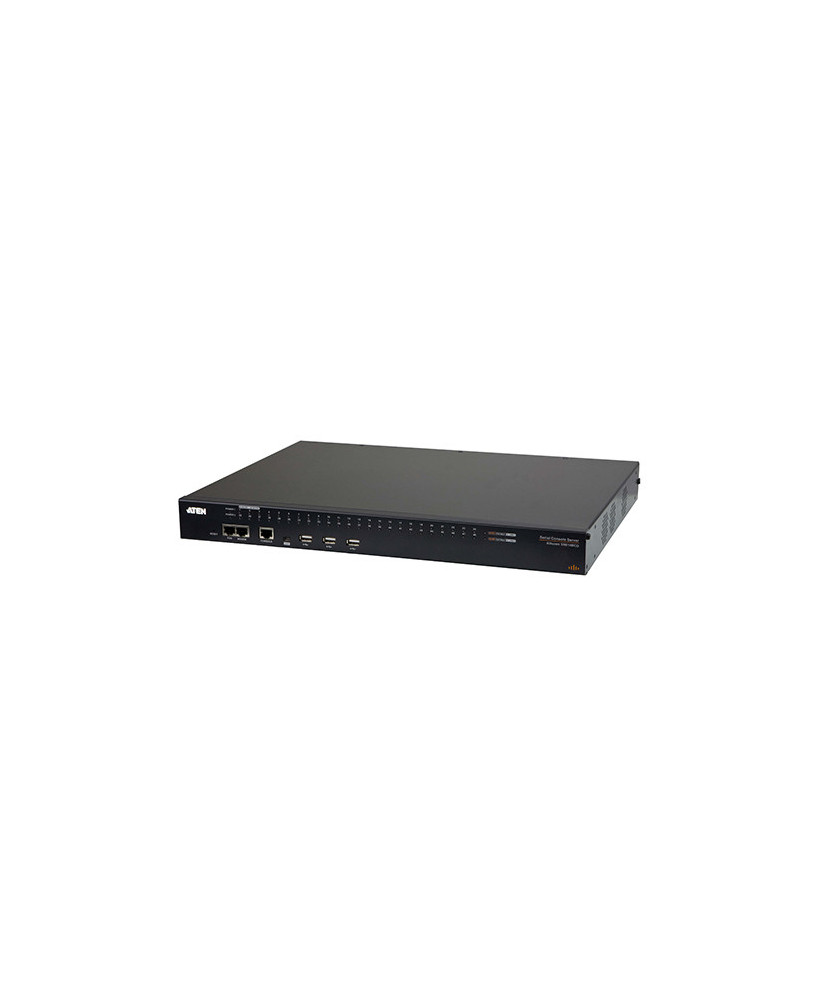

Aten 48-Port Serial Console Server with Dual Power/LAN SN0148CO-AX-U
The Aten 48-Port Serial Console Server with Dual Power/LAN SN0148CO-AX-U features Cisco pin-outs and auto-sensing DTE/DCE function, providing a direct connection to Cisco network switches (and other compatible devices) without rollover cables for even more time-saving IT infrastructure deployment.
The Aten 48-Port Serial Console Server with Dual Power/LAN SN0148CO-AX-U features Cisco pin-outs and auto-sensing DTE/DCE function, providing a direct connection to Cisco network switches (and other compatible devices) without rollover cables for even more time-saving IT infrastructure deployment. Furthermore, it can support the online detection of connected serial devices (including terminal blocks) for device status monitoring. A notification email alert will be sent to the administrator when connected devices are offline.
The SN0148CO-AX-U supports power redundancy as well as failover, or dual IP addresses access, ensuring 24/7 availability of access to serial devices. This 4 port server also offers both in-band and out-of-band (OOB) remote serial console access to servers and network devices via a direct Telnet/SSH client and Java viewer.
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with a 24-month manufacturer's warranty.
FEATURES
• Secure in-band and out-of-band remote serial console access
• Versatile serial operating modes – Console Management, Console Management Direct, Real COM Port, TCP Server/Client, UDP Server/Client, and Virtual Modem
• Auto-sensing DTE/DCE feature supports a direct connection to Cisco network switches (and other compatible devices) without rollover cables for more convenient IT infrastructure deployment
• Online/Offline detection of connected serial devices (including terminal blocks) – automatically send event notifications when the devices are offline (e.g. power failure) for device status monitoring
QUICK SPECIFICATIONS
• Connectors:
- Serial: 48 x RJ-45 Female
- LAN Ports: 2 x RJ-45 Female
- Power: 2 x IEC 60320/C14
- Local Console: 1 x RJ-45 Female
- Modem: 1 x RJ-45 Female
- PON: 1 x RJ-45 Female (Reserved)
- Laptop USB Console (LUC) Port: 1 x Mini USB
- USB Port: 3 x USB Type A Female
• Switches:
- Power: 2 x Rocker Switch
- Reset: 1 x Recessed Pushbutton
• Maximum Input Power Rating: 100–240VAC; 50/60Hz; 1.8A
• Power Consumption:
- AC110V:25.8W:153BTU
- AC220V:26.2W:155BTU
• LEDs:
- Serial: 48 (Green)
- 10/100/1000 Mbps: 2 (Red/Orange/Green)
- Power: 2 (Blue)
- Mode of Operation :Console Management, Console Management Direct, Real Com Port, TCP Server/Client, UDP Server/Client, Virtual Modem
• Physical Properties:
- Housing: Metal
- Weight: 4.92 kg ( 10.84 lb )
- Dimensions (L x W x H): 43.84 x 32.77 x 4.40 cm
WHAT'S INCLUDED
• 1x SN0148CO Serial Console Server
• 1x Laptop USB Console Cable
• 2x Power Cords (AC models)
• 1x Mounting Kit
• 1x Foot Pad Set (4 pcs.)
• User Instructions
