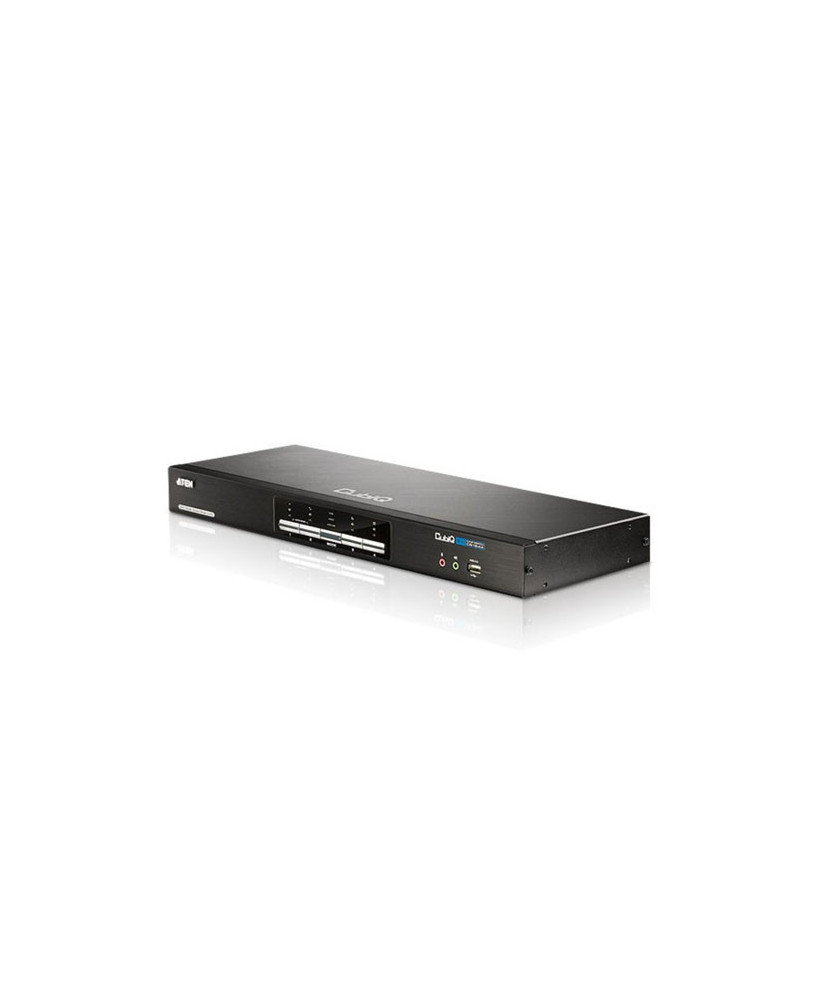

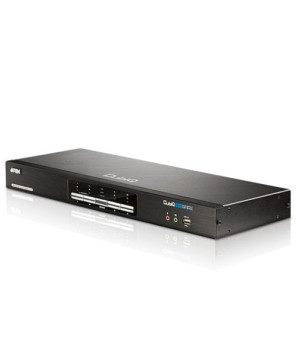

The Aten CS1644A-AT-U is a multi-application device that integrates a 4-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected.

Features multi-view capabilities, which allow two switches to be daisy-chained for a dual, triple, or quad view display across multi-monitor installations. Also supports advanced Nvidia 3D Vision ready 120Hz 3D displaying, allowing you to manage various 3D visual effects. It allows you to manipulate all connected computers from a single console to save resources and workspace. It enables each computer to access connected peripherals on a one-computer-at-a-time basis, making it ideal for users who need delicate visual effects and multi-tasking on several computers. Perfect for graphic designers, banking and financial consultants, gamers, and medical professionals- demanding a high-quality switch that provides stunning color, clarity, and functionality.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 24 months manufacturer's warranty.

• One dual-screen USB console controls two/four dual-screen computers and two additional USB devices
• Multi-View Display – Easily connect two CS1642A/1644A units for a second dual-screen setup controlled through a single connection

• Superior video quality – 2560 x 1600 at 60Hz (DVI Dual-link); and 3D displays up to 1920 x 1200 at 120Hz (DVI Single link)
• Supports widescreen resolutions
• Independent switching of KVM, USB, and Audio focus
• DVI digital and analog monitor support – fully compliant with DVI specifications; and HDCP compliant
• Multiplatform support – Windows 2000/XP/Vista, Linux *, Mac, Sun, and FreeBSD
• Sun/Mac keyboard support and emulation **
• Video DynaSync, exclusive ATEN technology, to eliminate boot-up display problems and optimizes resolution when switching between ports

* Supports Linux Kernel 2.6 and higher. The CS1644A has a builtin USB 2.0 hub, so will not support PCs or OS that do not support USB 2.0.
** PC keyboard combinations emulate Mac keyboards.
** Mac keyboards only work with their own computers.

• Computer Connections: 4

• Port Selection: Hotkey, Pushbutton, Mouse

• Connectors
Console Ports: 2 x USB Type A Female (rear panel), 2 x DVI-I Female (White), 1 x 3.5mm Audio Jack Female (Green), 1 x 3.5mm Audio Jack Female (Pink)
KVM Ports: 4 x USB Type B Female, 8 x DVI-I Female (white), 4 x 3.5mm Audio Jack Female (Green), 4 x 3.5mm Audio Jack Female (Pink)
Daisy Chain Ports: 1 x RJ-45 Female (rear panel)
Power: 1 x DC Jack
USB Hub: 2 x USB Type A Female (1 x front panel; 1 x rear panel)

• LEDs
KVM: 4 (Orange)
Audio: 4 (Green)
USB Link: 4 (Green)

• Switches
Selected: 5 x Pushbutton

• Emulation
Keyboard / Mouse: USB

• Video - DVI Dual Link: 2560 x 1600 @ 60Hz;, 3D Display: 1920 x 1200 @ 120Hz

• Scan Interval: 1-99 secconds (default: 5 secs.)

• Power Consumption: DC5.3V:5.34W:51BTU

• Environmental
Operating Temperature: 0–50°C
Storage Temperature: -20–60°C
Humidity: 0-80% RH, Non-condensing

• Physical Properties
Housing: Plastic, Metal
Weight: 2.32 kg ( 5.11 lb )
Dimensions (L x W x H): 43.72 x 15.98 x 4.40 cm, (17.21 x 6.29 x 1.73 in.)

Note:
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

• Aten 4-Port USB DVI Dual Link Dual Display/Audio KVMP Switch CS1644A-AT-U
• 4x KVM Cable (DVI-D DL, USB, Audio; 1.8m/6ft)
• DVI-D DL Cable (1.8m/6ft)
• 1x Power Adapter
• 1x User Instructions
